Toyota Tercel

1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General

Discontinued model Data version 2000-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

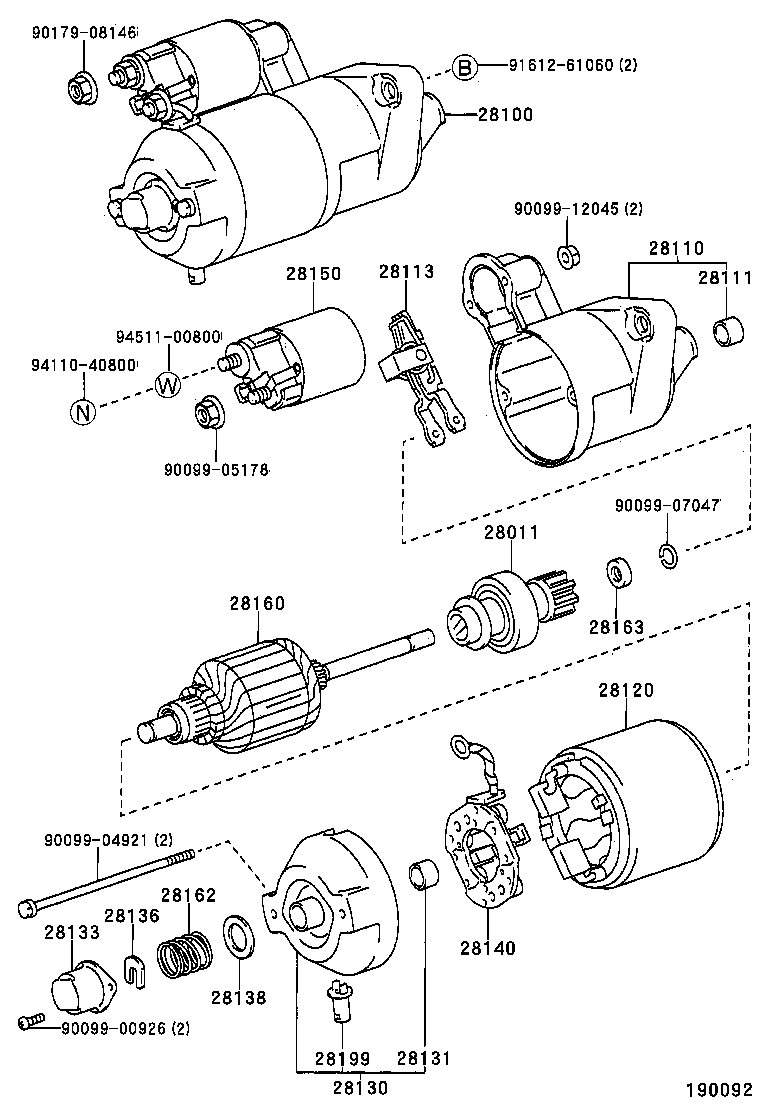

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

59 parts on this figure

Part number	Description	Fitment	Price
28011 — Clutch Sub-assy, Starter
28011-10030 note	Clutch Sub-assy, Starter 1994-09 → 1997-12 ended	2E EL50	—
28011-26042 note	Clutch Sub-assy, Starter 1995-08 → 1997-12 ended	2E EL50 5F GCC	—
28011-70020	Clutch Sub-assy, Starter 1994-09 → 1997-12 ended	5EFE EL53	—
28011-70020	Clutch Sub-assy, Starter 1997-12 → —	2E,5EFE EL5#	—
28100 — Starter Assy
28100-10030 note	Starter Assy 1994-09 → 1995-08 ended	2E EL50	—
28100-11010 note	Starter Assy 1994-09 → 1995-08 ended	5EFE EL53 5F	—
28100-11020 note	Starter Assy 1994-09 → 1995-08 ended	5EFE EL53 4FC	—
28100-11060 note	Starter Assy 1995-08 → 1997-12 ended	2E EL50	—
28100-11080 note	Starter Assy 1995-08 → 1997-12 ended	5EFE EL53 5F	—
28100-11090 note	Starter Assy 1995-08 → 1997-12 ended	5EFE EL53 4FC	—
28100-11100 note	Starter Assy 1995-08 → 1997-12 ended	2E EL50 5F GCC	—
28100-11140 note	Starter Assy 1997-12 → —	2E,5EFE EL5# 3FC,5F	—
28100-11150 note	Starter Assy 1997-12 → —	5EFE EL53 4FC	—
28100-11160 note	Starter Assy 1997-12 → —	2E EL50 5F GCC	—
28110 — Housing Assy, Starter Drive
28110-10030 note	Housing Assy, Starter Drive 1994-09 → 1997-12 ended	2E EL50	—
28110-10040 note	Housing Assy, Starter Drive 1995-08 → 1997-12 ended	2E EL50 5F GCC	—
28110-11010	Housing Assy, Starter Drive 1994-09 → 1997-12 ended	5EFE EL53 5F	—
28110-11010	Housing Assy, Starter Drive 1997-12 → —	2E,5EFE EL5# 3FC,5F	—
28110-11020	Housing Assy, Starter Drive 1994-09 → —	5EFE EL53 4FC	—
28111 — Bush(FOR STARTER HOUSING)
90099-10200	Bush(FOR STARTER HOUSING) 1994-09 → 1997-12 ended	2E EL50	—
28113 — Lever, Starter Pinion Drive
28113-15011	Lever, Starter Pinion Drive 1994-09 → 1997-12 ended	2E EL50	—
28113-16070	Lever, Starter Pinion Drive 1994-09 → 1997-12 ended	5EFE EL53	—
28113-16070	Lever, Starter Pinion Drive 1997-12 → —	2E,5EFE EL5#	—
28120 — Yoke Assy, Starter
28120-15010 note	Yoke Assy, Starter 1994-09 → 1997-12 ended	2E EL50	—
28120-26071 note	Yoke Assy, Starter 1995-08 → 1997-12 ended	2E EL50 5F GCC	—
28120-70020	Yoke Assy, Starter 1994-09 → 1997-12 ended	5EFE EL53	—
28120-70020 note	Yoke Assy, Starter 1997-12 → —	2E,5EFE EL5#	—
28120-70050 note	Yoke Assy, Starter 1997-12 → —	2E EL50 5F GCC	—
28130 — Frame Assy, Starter Commutator End
28130-10040 note	Frame Assy, Starter Commutator End 1995-08 → 1997-12 ended	2E EL50 5F GCC	—
28130-10050 note	Frame Assy, Starter Commutator End 1994-09 → 1997-12 ended	2E EL50	—
28130-11010	Frame Assy, Starter Commutator End 1994-09 → 1997-12 ended	5EFE EL53	—
28130-11010	Frame Assy, Starter Commutator End 1997-12 → —	2E,5EFE EL5#	—
28131 — Bush, Commutator End Frame
90099-10134	Bush, Commutator End Frame 1994-09 → 1997-12 ended	2E EL50	—
28133 — Cover, Bearing(FOR END FRAME)
28132-15010	Cover, Bearing(FOR END FRAME) 1994-09 → 1995-01 ended	2E EL50	—
28132-15011	Cover, Bearing(FOR END FRAME) 1995-01 → 1997-12 ended	2E EL50	—
28136 — Plate, Starter Lock
28136-15010	Plate, Starter Lock 1994-09 → 1997-12 ended	2E EL50	—
28138 — Rubber(FOR STARTER BEARING COVER)
28138-15010	Rubber(FOR STARTER BEARING COVER) 1994-09 → 1997-12 ended	2E EL50	—
28140 — Holder Assy, Starter Brush
28140-15010 note	Holder Assy, Starter Brush 1994-09 → 1997-12 ended	2E EL50	—
28140-26070 note	Holder Assy, Starter Brush 1995-08 → 1997-12 ended	2E EL50 5F GCC	—
28140-70020	Holder Assy, Starter Brush 1994-09 → 1997-12 ended	5EFE EL53	—
28140-70020	Holder Assy, Starter Brush 1997-12 → —	2E,5EFE EL5#	—
28150 — Switch Assy, Magnet Starter
28150-10021	Switch Assy, Magnet Starter 1994-09 → 1995-08 ended	5EFE EL53	—
28150-11060 note	Switch Assy, Magnet Starter 1995-08 → 1997-12 ended	2E EL50	—
28150-11080	Switch Assy, Magnet Starter 1995-08 → 1997-12 ended	5EFE EL53	—
28150-11100 note	Switch Assy, Magnet Starter 1995-08 → 1997-12 ended	2E EL50 5F GCC	—
28150-16160	Switch Assy, Magnet Starter 1997-12 → —	2E,5EFE EL5#	—
28150-37010	Switch Assy, Magnet Starter 1994-09 → 1995-08 ended	2E EL50	—
28160 — Armature Assy, Starter
28160-15010 note	Armature Assy, Starter 1994-09 → 1997-12 ended	2E EL50	—
28160-26071 note	Armature Assy, Starter 1995-08 → 1997-12 ended	2E EL50 5F GCC	—
28160-70021	Armature Assy, Starter 1994-09 → 1997-12 ended	5EFE EL53	—
28160-70021 note	Armature Assy, Starter 1997-12 → —	2E,5EFE EL5#	—
28160-70050 note	Armature Assy, Starter 1997-12 → —	2E EL50 5F GCC	—
28162 — Spring, Starter Brake
28162-15010	Spring, Starter Brake 1994-09 → 1997-12 ended	2E EL50	—
28163 — Nut OR Collar, Pinion Stop, Starter
28163-40011	Nut OR Collar, Pinion Stop, Starter 1994-09 → 1997-12 ended	2E EL50	—
28163-70020	Nut OR Collar, Pinion Stop, Starter 1994-09 → 1997-12 ended	5EFE EL53	—
28163-70020	Nut OR Collar, Pinion Stop, Starter 1997-12 → —	2E,5EFE EL5#	—
28199 — Cover, Starter
28199-46080	Cover, Starter 1994-09 → 1997-12 ended	5EFE EL53	—
28199-46080	Cover, Starter 1997-12 → —	2E,5EFE EL5#	—
28199-64150	Cover, Starter 1994-09 → 1997-12 ended	2E EL50	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
