Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

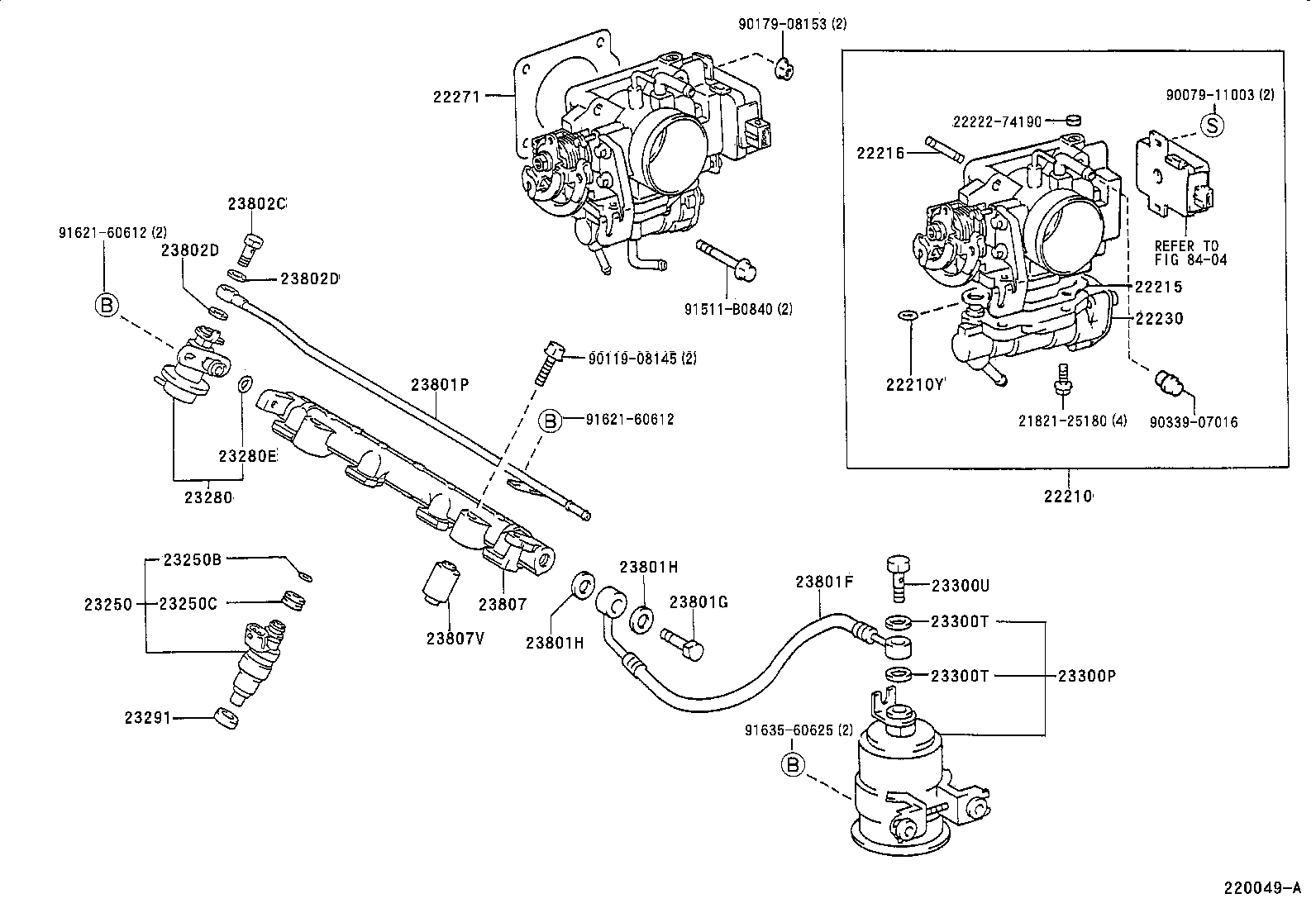

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 22210 — Body Assy, Throttle | ||||
| 22210-11240 |
Body Assy, Throttle
1994-09 → 1995-08
ended
|
5EFE EL53 5F | — | |
| 22210-11250 |
Body Assy, Throttle
1994-09 → 1995-08
ended
|
5EFE EL53 4FC | — | |
| 22210-11420 |
Body Assy, Throttle
1995-08 → 1996-08
ended
|
5EFE EL53 5F | — | |
| 22210-11430 |
Body Assy, Throttle
1995-08 → 1996-08
ended
|
5EFE EL53 4FC | — | |
| 22210-11550 |
Body Assy, Throttle
1996-08 → 1997-12
ended
|
5EFE EL53 5F | — | |
| 22210-11560 |
Body Assy, Throttle
1996-08 → 1997-12
ended
|
5EFE EL53 4FC | — | |
| 22210-11610 |
Body Assy, Throttle
1997-12 → —
|
5EFE EL53 5F | — | |
| 22210-11620 |
Body Assy, Throttle
1997-12 → —
|
5EFE EL53 4FC | — | |
| 22210Y — Ring, O(FOR AIR TUBE) | ||||
| 96711-19009 |
Ring, O(FOR AIR TUBE)
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 22215 — Gasket, Throttle Body Cover | ||||
| 22215-11110 |
Gasket, Throttle Body Cover
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 22215-74400 |
Gasket, Throttle Body Cover
1995-08 → —
|
5EFE EL53 | — | |
| 22216 — Screw, Dash Pot Adjusting | ||||
| 90079-13010 |
Screw, Dash Pot Adjusting
1994-09 → 1995-08
ended
|
5EFE EL53 4FC | — | |
| 22230 — Valve Assy, Auxiliary Air | ||||
| 22230-11130 |
Valve Assy, Auxiliary Air
1994-09 → 1995-08
ended
|
5EFE EL53 5F | — | |
| 22230-11140 |
Valve Assy, Auxiliary Air
1994-09 → 1995-08
ended
|
5EFE EL53 4FC | — | |
| 22271 — Gasket, Throttle Body | ||||
| 22271-11030 |
Gasket, Throttle Body
1994-09 → —
|
5EFE EL53 | — | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-11100 |
Injector Assy, Fuel
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 23209-11110 |
Injector Assy, Fuel
1995-08 → —
|
5EFE EL53 | — | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
Ring, O(FOR FUEL INJECTOR)
1994-09 → 1998-12
ended
|
5EFE EL53 | — | |
| 90301-07024 |
Ring, O(FOR FUEL INJECTOR)
1998-12 → —
|
5EFE EL53 | — | |
| 23250C — Grommet(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
Grommet(FOR FUEL INJECTOR)
1994-09 → —
|
5EFE EL53 | — | |
| 23280 — Regulator Assy, Fuel Pressure | ||||
| 23280-11070 |
Regulator Assy, Fuel Pressure
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 23280-11080 |
Regulator Assy, Fuel Pressure
1995-08 → 1996-08
ended
|
5EFE EL53 | — | |
| 23280-11090 |
Regulator Assy, Fuel Pressure
1996-08 → 1998-03
ended
|
5EFE EL53 | — | |
| 23280-11090 note |
Regulator Assy, Fuel Pressure
1998-03 → —
|
5EFE EL53 | — | |
| 23280-11100 note |
Regulator Assy, Fuel Pressure
1998-03 → —
|
5EFE EL53 | — | |
| 23280E — Ring, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
1994-09 → 1998-05
ended
|
5EFE EL53 | — | |
| 90301-07020 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
1996-08 → 1997-12
ended
|
5EFE EL53 | — | |
| 90301-07024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
1998-05 → —
|
5EFE EL53 | — | |
| 90301-08005 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
1997-12 → —
|
5EFE EL53 | — | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-41010 |
Insulator, Injector Vibration
1994-09 → —
|
5EFE EL53 | — | |
| 23300P — Filter, Fuel(FOR EFI) | ||||
| 23300-19405 |
Filter, Fuel(FOR EFI)
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 23300-19445 |
Filter, Fuel(FOR EFI)
1995-08 → —
|
5EFE EL53 | — | |
| 23300T — Gasket(FOR FUEL FILTER) | ||||
| 90430-12026 |
Gasket(FOR FUEL FILTER)
1994-09 → —
|
5EFE EL53 | — | |
| 23300U — Bolt, Union(FOR FUEL FILTER) | ||||
| 90401-12097 |
Bolt, Union(FOR FUEL FILTER)
1994-09 → —
|
5EFE EL53 | — | |
| 23801F — Hose, Fuel, NO.1 | ||||
| 23271-11170 |
Hose, Fuel, NO.1
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 23271-11220 |
Hose, Fuel, NO.1
1995-08 → 1995-11
ended
|
5EFE EL53 | — | |
| 23271-11250 |
Hose, Fuel, NO.1
1995-11 → 1996-08
ended
|
5EFE EL53 | — | |
| 23271-11251 |
Hose, Fuel, NO.1
1996-08 → —
|
5EFE EL53 | — | |
| 23801G — Bolt, Union(FOR FUEL PIPE) | ||||
| 90401-12029 |
Bolt, Union(FOR FUEL PIPE)
1994-09 → 1995-11
ended
|
5EFE EL53 | — | |
| 90401-12033 |
Bolt, Union(FOR FUEL PIPE)
1995-11 → —
|
5EFE EL53 | — | |
| 23801H — Gasket(FOR FUEL PIPE) | ||||
| 23279-74010 |
Gasket(FOR FUEL PIPE)
1995-11 → —
|
5EFE EL53 | — | |
| 90430-12026 |
Gasket(FOR FUEL PIPE)
1994-09 → 1995-11
ended
|
5EFE EL53 | — | |
| 23801P — Pipe Sub-assy, Fuel, NO.1 | ||||
| 23801-11050 |
Pipe Sub-assy, Fuel, NO.1
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 23802C — Bolt, Union(FOR FUEL PIPE NO.2) | ||||
| 90401-08004 |
Bolt, Union(FOR FUEL PIPE NO.2)
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 23802D — Gasket(FOR FUEL PIPE NO.2) | ||||
| 90430-08014 |
Gasket(FOR FUEL PIPE NO.2)
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 23807 — Pipe Sub-assy, Fuel Delivery | ||||
| 23814-11060 |
Pipe Sub-assy, Fuel Delivery
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 23814-11070 |
Pipe Sub-assy, Fuel Delivery
1995-08 → —
|
5EFE EL53 | — | |
| 23807V — Spacer, NO.1(FOR DELIVERY PIPE) | ||||
| 23890-11010 |
Spacer, NO.1(FOR DELIVERY PIPE)
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 23891-11020 |
Spacer, NO.1(FOR DELIVERY PIPE)
1995-08 → —
|
5EFE EL53 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
