Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

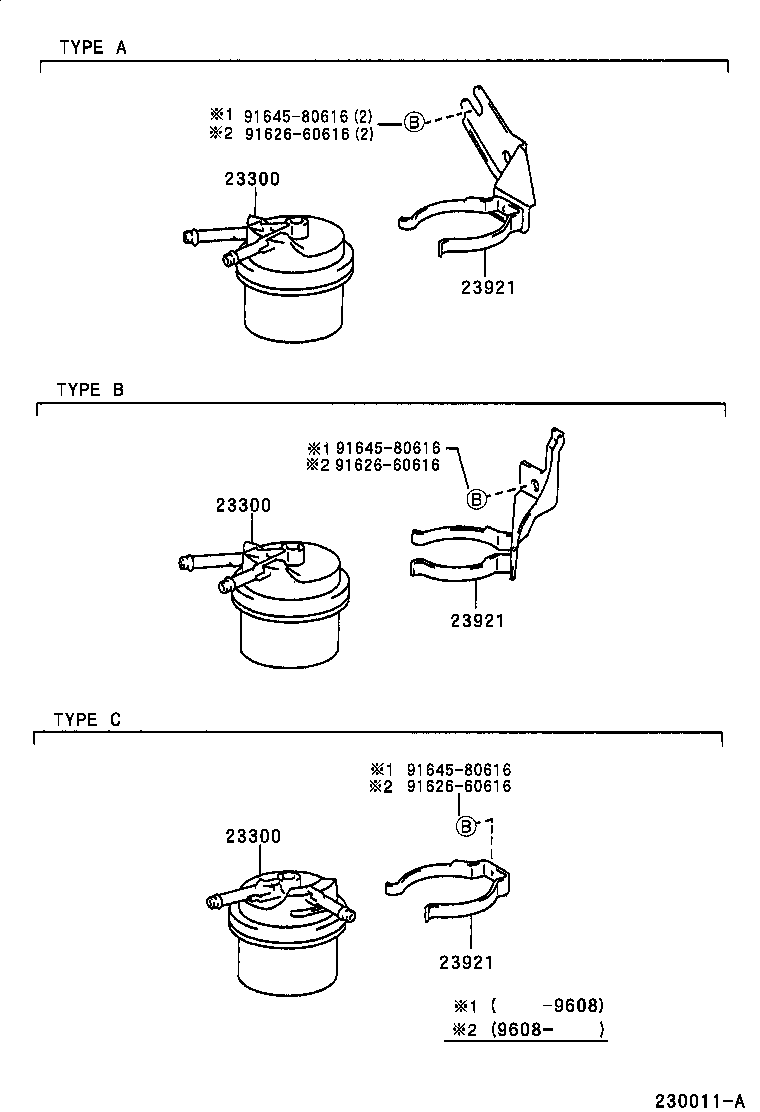

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23300 — Filter Assy, Fuel | ||||
| 23300-26060 note |
Filter Assy, Fuel
1994-09 → 1997-05
ended
|
2E EL50 GCC | — | |
| 23300-26060 note |
Filter Assy, Fuel
1997-05 → —
|
2E EL50 LHD | — | |
| 23300-34100 note |
Filter Assy, Fuel
1994-09 → —
|
2E EL50 GEN | — | |
| 23921 — Support, Fuel Filter | ||||
| 23264-10010 note |
Support, Fuel Filter
1994-09 → —
|
2E EL50 LHD GEN | — | |
| 23264-11030 note |
Support, Fuel Filter
1994-09 → —
|
2E EL50 RHD | — | |
| 23264-11080 note |
Support, Fuel Filter
1994-09 → 1997-05
ended
|
2E EL50 GCC | — | |
| 23264-11080 note |
Support, Fuel Filter
1997-05 → —
|
2E EL50 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
