Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

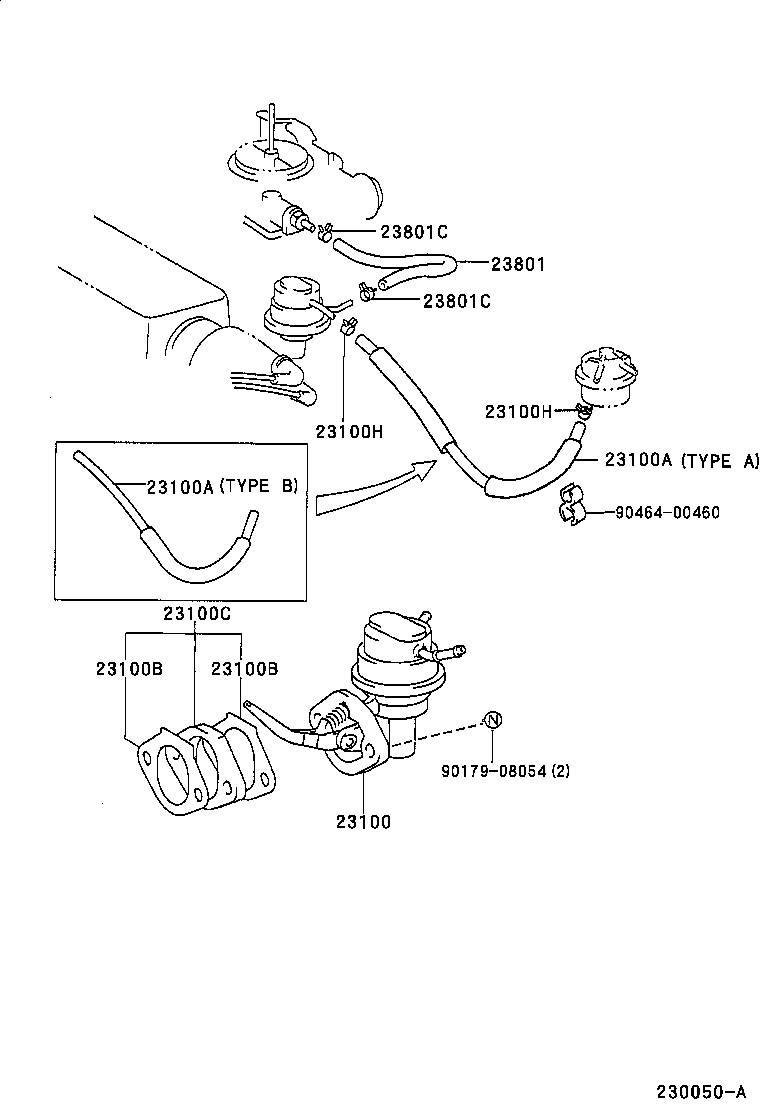

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23100 — Pump Assy, Fuel | ||||
| 23100-11080 |
Pump Assy, Fuel
1994-09 → 1995-03
ended
|
2E EL50 | — | |
| 23100-11081 |
Pump Assy, Fuel
1995-03 → —
|
2E EL50 | — | |
| 23100A — Hose, Fuel | ||||
| 23271-11050 note |
Hose, Fuel
1994-09 → —
|
2E EL50 GEN | — | |
| 23271-11210 |
Hose, Fuel
1994-09 → 1997-05
ended
|
2E EL50 GCC | — | |
| 23271-11210 note |
Hose, Fuel
1997-05 → —
|
2E EL50 LHD | — | |
| 23100B — Gasket, Fuel Pump | ||||
| 90923-05024 |
Gasket, Fuel Pump
1994-09 → —
|
2E EL50 | — | |
| 23100C — Insulator, Fuel Pump | ||||
| 23915-10021 |
Insulator, Fuel Pump
1994-09 → —
|
2E EL50 | — | |
| 23100H — Clip(FOR FUEL HOSE) | ||||
| 96132-41100 |
Clip(FOR FUEL HOSE)
1994-09 → —
|
2E EL50 | — | |
| 23801 — Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1 | ||||
| 95334-06010 |
Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
1994-09 → —
|
2E EL50 | — | |
| 23801C — Clip(FOR CARBURETOR FUEL HOSE) | ||||
| 96135-41100 |
Clip(FOR CARBURETOR FUEL HOSE)
1994-09 → —
|
2E EL50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
