Toyota Tercel

1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

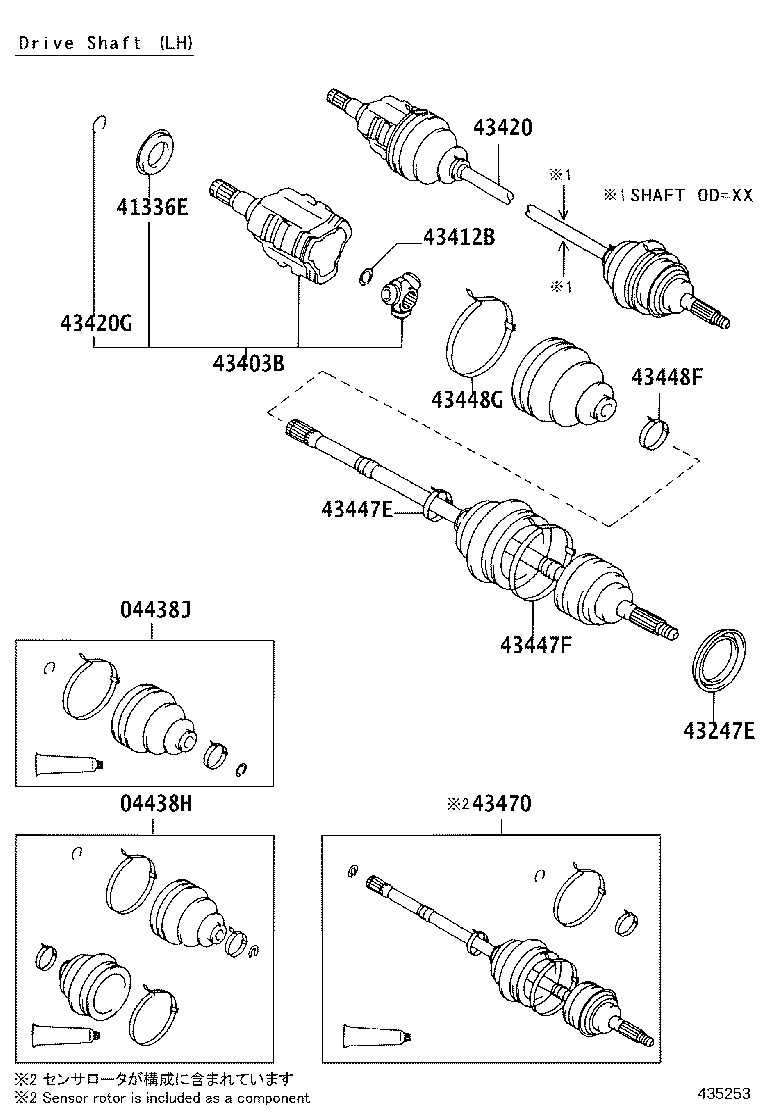

Exploded illustration 435253 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (2 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (2 parts) 43403B — JOINT SET, FRONT AXLE INBOARD, LH (4 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (6 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (3 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (4 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (4 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (3 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (6 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (4 parts) 43247E — DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 LH (1 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (6 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (8 parts)
435253 · 13 callouts Full size ↗
53 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438-10060 Boot Kit, Front Drive Shaft, IN & Outboard, LH
1994-09 → 1995-11 ended
EL5# —
04438-16040 Boot Kit, Front Drive Shaft, IN & Outboard, LH
1995-11 → 1997-09 ended
EL5# —
04438-16040 Boot Kit, Front Drive Shaft, IN & Outboard, LH
1997-09 → 1999-07 ended
EL53 —
04438-16040 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
1997-09 → 1999-07 ended
EL50 —
04438-16090 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
1997-09 → 1998-06 ended
EL50 —
04438-16091 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
1998-06 → 1999-07 ended
EL50 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04438-10050 Boot Kit, Front Drive Shaft Inboard Joint, LH
1994-09 → 1995-11 ended
EL5# —
04438-16100 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1997-09 → 1998-06 ended
EL50 —
04438-16101 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1998-06 → —
EL50 —
04438-16140 Boot Kit, Front Drive Shaft Inboard Joint, LH
1995-11 → 1997-09 ended
EL5# —
04438-16140 Boot Kit, Front Drive Shaft Inboard Joint, LH
1997-09 → —
EL53 —
04438-16140 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1997-09 → —
EL50 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-12010 Cover, Front Drive Shaft Dust, LH
1994-09 → 1998-02 ended
EL5# —
41336-12010 Cover, Front Drive Shaft Dust, LH
1998-02 → —
EL50 —
43247E — Deflector, Front Wheel Bearing Dust, NO.2 LH
43247-16040 Deflector, Front Wheel Bearing Dust, NO.2 LH
1994-09 → —
EL5# —
43403B — Joint Set, Front Axle Inboard, LH
43403-10010 Joint Set, Front Axle Inboard, LH
1994-09 → 1997-09 ended
EL5# —
43403-10010 Joint Set, Front Axle Inboard, LH
1997-09 → 1999-07 ended
EL53 —
43403-10010 note Joint Set, Front Axle Inboard, LH
1997-09 → 1999-07 ended
EL50 —
43403-16020 note Joint Set, Front Axle Inboard, LH
1997-09 → 1999-07 ended
EL50 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-16020 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1997-09 → —
EL50 —
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1994-09 → 1997-09 ended
EL5# —
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1997-09 → —
EL53 —
90520-22001 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1997-09 → —
EL50 —
43420 — Shaft Assy, Front Drive, LH
43420-16121 Shaft Assy, Front Drive, LH
1994-09 → 1997-09 ended
EL5# —
43420-16122 Shaft Assy, Front Drive, LH
1997-09 → 1999-07 ended
EL53 —
43420-16122 note Shaft Assy, Front Drive, LH
1997-09 → 1999-07 ended
EL50 —
43420-16132 note Shaft Assy, Front Drive, LH
1997-12 → 1999-07 ended
EL50 GCC —
43420-16201 note Shaft Assy, Front Drive, LH
1997-09 → 1999-07 ended
EL50 —
43420-16211 note Shaft Assy, Front Drive, LH
1997-12 → 1999-07 ended
EL50 GCC —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
1994-09 → 1997-12 ended
EL5# —
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
1997-12 → —
EL50 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-16010 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1994-09 → 1997-12 ended
EL5# —
42345-16010 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1997-09 → 1997-12 ended
EL50 —
42345-16010 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1997-12 → 1999-07 ended
EL5# —
42345-16140 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1997-09 → 1999-07 ended
EL50 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-16020 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1994-09 → 1997-09 ended
EL5# —
42345-16020 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1997-09 → —
EL5# —
42345-16150 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1997-09 → —
EL50 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-16010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1994-09 → 1997-12 ended
EL5# —
42345-16010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-09 → 1997-12 ended
EL50 —
42345-16010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-12 → 1999-07 ended
EL5# —
42345-16140 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-09 → 1999-07 ended
EL50 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-16080 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1994-09 → 1997-09 ended
EL5# —
42345-16080 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-09 → —
EL5# —
42345-16150 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-09 → —
EL50 —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-19516 Shaft Assy, Front Drive Outboard Joint, LH
1994-09 → 1997-09 ended
EL5# —
43470-19517 Shaft Assy, Front Drive Outboard Joint, LH
1997-09 → 1999-07 ended
EL53 —
43470-19517 note Shaft Assy, Front Drive Outboard Joint, LH
1997-09 → 1999-07 ended
EL50 —
43470-19527 note Shaft Assy, Front Drive Outboard Joint, LH
1997-12 → 1999-07 ended
EL50 GCC —
43470-19816 note Shaft Assy, Front Drive Outboard Joint, LH
1997-09 → 1998-06 ended
EL50 —
43470-19817 note Shaft Assy, Front Drive Outboard Joint, LH
1998-06 → 1999-07 ended
EL50 —
43470-19826 note Shaft Assy, Front Drive Outboard Joint, LH
1997-12 → 1998-06 ended
EL50 GCC —
43470-19827 note Shaft Assy, Front Drive Outboard Joint, LH
1998-06 → 1999-07 ended
EL50 GCC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
