Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

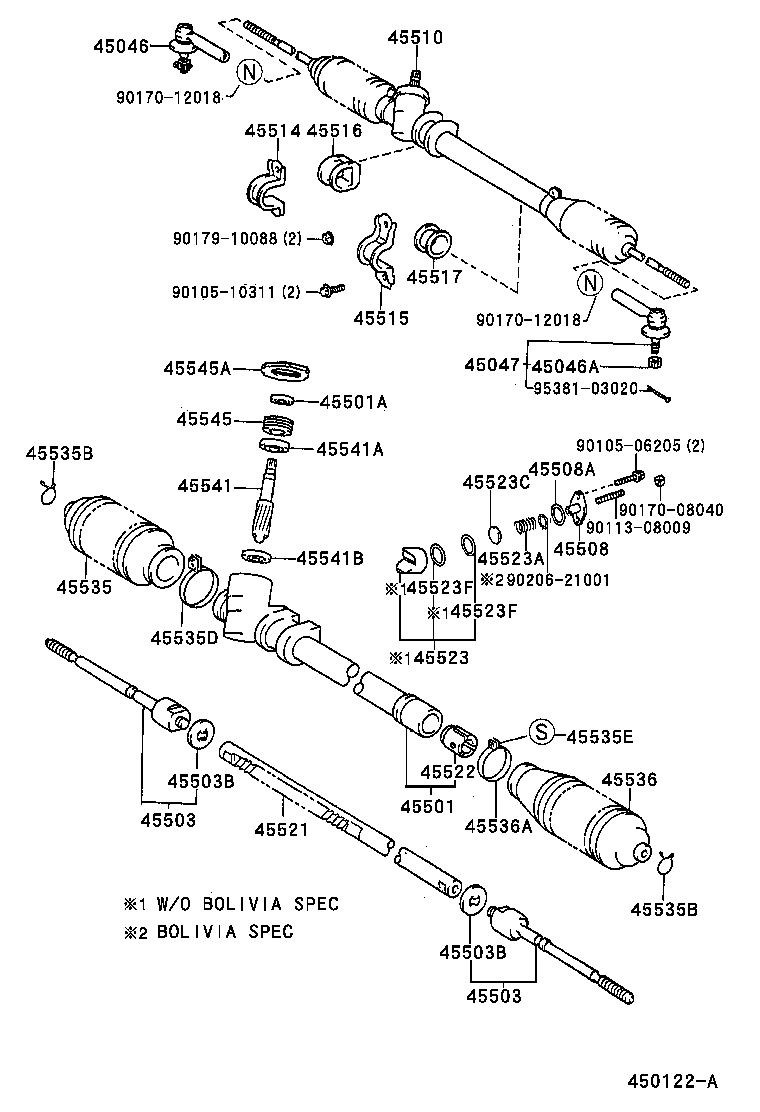

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45046 — End Sub-assy, Tie Rod, RH | ||||
| 45046-19206 |
End Sub-assy, Tie Rod, RH
1994-09 → 1999-07
ended
|
EL5# | — | |
| 45046A — Nut, Castle(FOR TIE ROD END) | ||||
| 90171-12028 |
Nut, Castle(FOR TIE ROD END)
1994-09 → —
|
EL5# | — | |
| 45047 — End Sub-assy, Tie Rod, LH | ||||
| 45046-19206 |
End Sub-assy, Tie Rod, LH
1994-09 → 1999-07
ended
|
EL5# | — | |
| 45501 — Housing Sub-assy, Steering Rack | ||||
| 45501-10100 |
Housing Sub-assy, Steering Rack
1996-02 → —
|
EL50 RHD | — | |
| 45501-10110 |
Housing Sub-assy, Steering Rack
1994-09 → 1996-02
ended
|
EL50 RHD | — | |
| 45501-10120 |
Housing Sub-assy, Steering Rack
1994-09 → 1996-02
ended
|
EL5# LHD | — | |
| 45501-10130 note |
Housing Sub-assy, Steering Rack
1994-09 → 1996-02
ended
|
EL50 LHD GEN | — | |
| 45501-10130 |
Housing Sub-assy, Steering Rack
1996-02 → —
|
EL5# LHD | — | |
| 45501A — Seal, Type T Oil(FOR STEERING RACK HOUSING) | ||||
| 90311-15002 |
Seal, Type T Oil(FOR STEERING RACK HOUSING)
1994-09 → —
|
EL5# | — | |
| 45503 — End Sub-assy, Steering Rack | ||||
| 45503-19185 note |
End Sub-assy, Steering Rack
1994-09 → 1999-07
ended
|
EL50 RHD | — | |
| 45503-19195 |
End Sub-assy, Steering Rack
1994-09 → 1999-07
ended
|
EL5# | — | |
| 45503B — Washer, Claw(FOR STEERING RACK END) | ||||
| 90214-12002 |
Washer, Claw(FOR STEERING RACK END)
1994-09 → —
|
EL5# | — | |
| 45508 — Cover Sub-assy, Steering Rack Guide Spring | ||||
| 45546-10011 |
Cover Sub-assy, Steering Rack Guide Spring
1994-09 → 1996-02
ended
|
EL50 LHD GEN | — | |
| 45546-10011 |
Cover Sub-assy, Steering Rack Guide Spring
1996-02 → —
|
EL5# | — | |
| 45508A — Ring, O(FOR STEERING RACK GUIDE SPRING COVER) | ||||
| 90301-31007 |
Ring, O(FOR STEERING RACK GUIDE SPRING COVER)
1994-09 → 1996-02
ended
|
EL50 LHD GEN | — | |
| 90301-31007 |
Ring, O(FOR STEERING RACK GUIDE SPRING COVER)
1996-02 → —
|
EL5# | — | |
| 45510 — Gear Assy, Steering | ||||
| 45510-16160 |
Gear Assy, Steering
1994-09 → 1996-02
ended
|
EL50 RHD | — | |
| 45510-16161 |
Gear Assy, Steering
1996-02 → —
|
EL50 RHD | — | |
| 45510-16170 |
Gear Assy, Steering
1994-09 → 1996-02
ended
|
EL5# LHD | — | |
| 45510-16180 note |
Gear Assy, Steering
1994-09 → —
|
EL50 LHD GEN | — | |
| 45510-16190 |
Gear Assy, Steering
1996-02 → —
|
EL5# LHD | — | |
| 45514 — Bracket, Steering Rack Housing, NO.1 | ||||
| 45514-16050 |
Bracket, Steering Rack Housing, NO.1
1994-09 → —
|
EL5# | — | |
| 45514-16060 note |
Bracket, Steering Rack Housing, NO.1
1994-09 → 1997-07
ended
|
EL5# | — | |
| 45514-16061 note |
Bracket, Steering Rack Housing, NO.1
1997-07 → —
|
EL5# | — | |
| 45515 — Bracket, Steering Rack Housing, NO.2 | ||||
| 45514-16060 note |
Bracket, Steering Rack Housing, NO.2
1996-08 → 1997-07
ended
|
EL5# | — | |
| 45514-16061 note |
Bracket, Steering Rack Housing, NO.2
1997-07 → —
|
EL5# | — | |
| 45515-10050 note |
Bracket, Steering Rack Housing, NO.2
1994-09 → —
|
EL5# | — | |
| 45516 — Grommet, Steering Rack Housing, NO.1 | ||||
| 45516-16050 |
Grommet, Steering Rack Housing, NO.1
1994-09 → —
|
EL5# | — | |
| 45516-16060 note |
Grommet, Steering Rack Housing, NO.1
1994-09 → —
|
EL5# | — | |
| 45517 — Grommet, Steering Rack Housing, NO.2 | ||||
| 45517-10070 note |
Grommet, Steering Rack Housing, NO.2
1994-09 → —
|
EL5# | — | |
| 45517-10080 |
Grommet, Steering Rack Housing, NO.2
1994-09 → —
|
EL5# | — | |
| 45521 — Rack, Steering | ||||
| 45521-16210 |
Rack, Steering
1994-09 → —
|
EL5# LHD | — | |
| 45521-16220 |
Rack, Steering
1994-09 → —
|
EL50 RHD | — | |
| 45522 — Bush, Steering Rack | ||||
| 45522-10050 |
Bush, Steering Rack
1994-09 → 1996-02
ended
|
EL5# | — | |
| 45522-10080 note |
Bush, Steering Rack
1994-09 → 1996-02
ended
|
EL50 | — | |
| 45522-10080 |
Bush, Steering Rack
1996-02 → —
|
EL5# | — | |
| 45523 — Guide, Rack(FOR STEERING GEAR) | ||||
| 45504-10020 note |
Guide, Rack(FOR STEERING GEAR)
1996-02 → 1999-07
ended
|
EL5# | — | |
| 45504-16050 note |
Guide, Rack(FOR STEERING GEAR)
1994-09 → 1995-12
ended
|
EL50 RHD | — | |
| 45504-16060 note |
Guide, Rack(FOR STEERING GEAR)
1995-12 → 1999-07
ended
|
EL50 RHD | — | |
| 45523-10040 note |
Guide, Rack(FOR STEERING GEAR)
1994-09 → 1995-08
ended
|
EL5# | — | |
| 45523-10041 note |
Guide, Rack(FOR STEERING GEAR)
1995-08 → 1996-02
ended
|
EL5# | — | |
| 45523-10080 note |
Guide, Rack(FOR STEERING GEAR)
1994-09 → 1996-03
ended
|
EL5# LHD | — | |
| 45523-10080 note |
Guide, Rack(FOR STEERING GEAR)
1996-03 → 1996-10
ended
|
EL53 | — | |
| 45523-10090 note |
Guide, Rack(FOR STEERING GEAR)
1996-03 → 1996-10
ended
|
EL50 LHD | — | |
| 45523-10090 note |
Guide, Rack(FOR STEERING GEAR)
1996-10 → 1999-07
ended
|
EL5# LHD | — | |
| 45523-10090 note |
Guide, Rack(FOR STEERING GEAR)
1994-09 → 1996-03
ended
|
EL50 LHD GEN | — | |
| 45523A — Spring(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26042 |
Spring(FOR STEERING GEAR RACK GUIDE)
1994-09 → 1996-02
ended
|
EL5# | — | |
| 90501-32032 note |
Spring(FOR STEERING GEAR RACK GUIDE)
1994-09 → 1996-02
ended
|
EL50 LHD GEN | — | |
| 90501-32032 |
Spring(FOR STEERING GEAR RACK GUIDE)
1996-02 → —
|
EL5# | — | |
| 45523C — Spacer(FOR RACK GUIDE) | ||||
| 45542-12010 |
Spacer(FOR RACK GUIDE)
1995-12 → 1999-07
ended
|
EL50 RHD | — | |
| 45542-17010 |
Spacer(FOR RACK GUIDE)
1994-09 → 1996-02
ended
|
EL50 LHD GEN | — | |
| 45542-17010 note |
Spacer(FOR RACK GUIDE)
1996-02 → 1999-07
ended
|
EL5# | — | |
| 45523F — Ring, O(FOR STEERING GEAR GUIDE) | ||||
| 90301-24005 |
Ring, O(FOR STEERING GEAR GUIDE)
1994-09 → 1996-08
ended
|
EL50 LHD GEN | — | |
| 90301-24005 |
Ring, O(FOR STEERING GEAR GUIDE)
1996-08 → —
|
EL5# | — | |
| 45535 — Boot, Steering Rack, NO.1 | ||||
| 45535-10021 note |
Boot, Steering Rack, NO.1
1994-09 → 1999-07
ended
|
EL5# | — | |
| 45535-10060 note |
Boot, Steering Rack, NO.1
1995-12 → 1999-07
ended
|
EL50 RHD | — | |
| 45535-16010 note |
Boot, Steering Rack, NO.1
1994-09 → 1999-07
ended
|
EL5# LHD | — | |
| 45535-16030 note |
Boot, Steering Rack, NO.1
1994-09 → 1995-12
ended
|
EL50 RHD | — | |
| 45535B — Clip(FOR STEERING RACK BOOT) | ||||
| 90467-17021 note |
Clip(FOR STEERING RACK BOOT)
1994-09 → 1999-07
ended
|
EL50 RHD | — | |
| 90467-18003 |
Clip(FOR STEERING RACK BOOT)
1994-09 → 1999-07
ended
|
EL5# | — | |
| 45535D — Clamp(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-49002 note |
Clamp(FOR STEERING RACK BOOT NO.1)
1994-09 → 1995-12
ended
|
EL50 RHD | — | |
| 90460-56002 note |
Clamp(FOR STEERING RACK BOOT NO.1)
1994-09 → —
|
EL5# LHD | — | |
| 90461-08718 note |
Clamp(FOR STEERING RACK BOOT NO.1)
1995-12 → —
|
EL50 RHD | — | |
| 90461-10273 note |
Clamp(FOR STEERING RACK BOOT NO.1)
1994-09 → —
|
EL5# | — | |
| 45535E — Screw(FOR STEERING RACK BOOT CLAMP) | ||||
| 93269-63020 |
Screw(FOR STEERING RACK BOOT CLAMP)
1994-09 → —
|
EL5# | — | |
| 45536 — Boot, Steering Rack, NO.2 | ||||
| 45535-10060 note |
Boot, Steering Rack, NO.2
1995-12 → 1999-07
ended
|
EL50 RHD | — | |
| 45535-16010 note |
Boot, Steering Rack, NO.2
1994-09 → 1999-07
ended
|
EL5# LHD | — | |
| 45535-16030 note |
Boot, Steering Rack, NO.2
1994-09 → 1995-12
ended
|
EL50 RHD | — | |
| 45536-10060 note |
Boot, Steering Rack, NO.2
1994-09 → 1999-07
ended
|
EL5# | — | |
| 45536A — Clamp(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-49002 note |
Clamp(FOR STEERING RACK BOOT NO.2)
1994-09 → 1995-12
ended
|
EL50 RHD | — | |
| 90460-56002 note |
Clamp(FOR STEERING RACK BOOT NO.2)
1994-09 → —
|
EL5# LHD | — | |
| 90461-08718 note |
Clamp(FOR STEERING RACK BOOT NO.2)
1995-12 → —
|
EL50 RHD | — | |
| 90461-10646 note |
Clamp(FOR STEERING RACK BOOT NO.2)
1994-09 → —
|
EL5# | — | |
| 45541 — Pinion, Steering | ||||
| 45541-16090 |
Pinion, Steering
1994-09 → —
|
EL50 RHD | — | |
| 45541-16100 |
Pinion, Steering
1994-09 → —
|
EL5# LHD | — | |
| 45541A — Bearing, Radial Ball(FOR STEERING PINION UPPER) | ||||
| 90363-15015 |
Bearing, Radial Ball(FOR STEERING PINION UPPER)
1994-09 → —
|
EL5# | — | |
| 45541B — Bearing, Radial Ball(FOR STEERING PINION LOWER) | ||||
| 90363-13004 |
Bearing, Radial Ball(FOR STEERING PINION LOWER)
1994-09 → —
|
EL5# | — | |
| 45545 — Screw, Pinion Bearing Adjusting | ||||
| 45545-10020 |
Screw, Pinion Bearing Adjusting
1994-09 → —
|
EL5# | — | |
| 45545A — Nut(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
Nut(FOR PINION BEARING ADJUSTING SCREW)
1994-09 → —
|
EL5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
