Toyota Tercel

1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General

Discontinued model Data version 2000-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

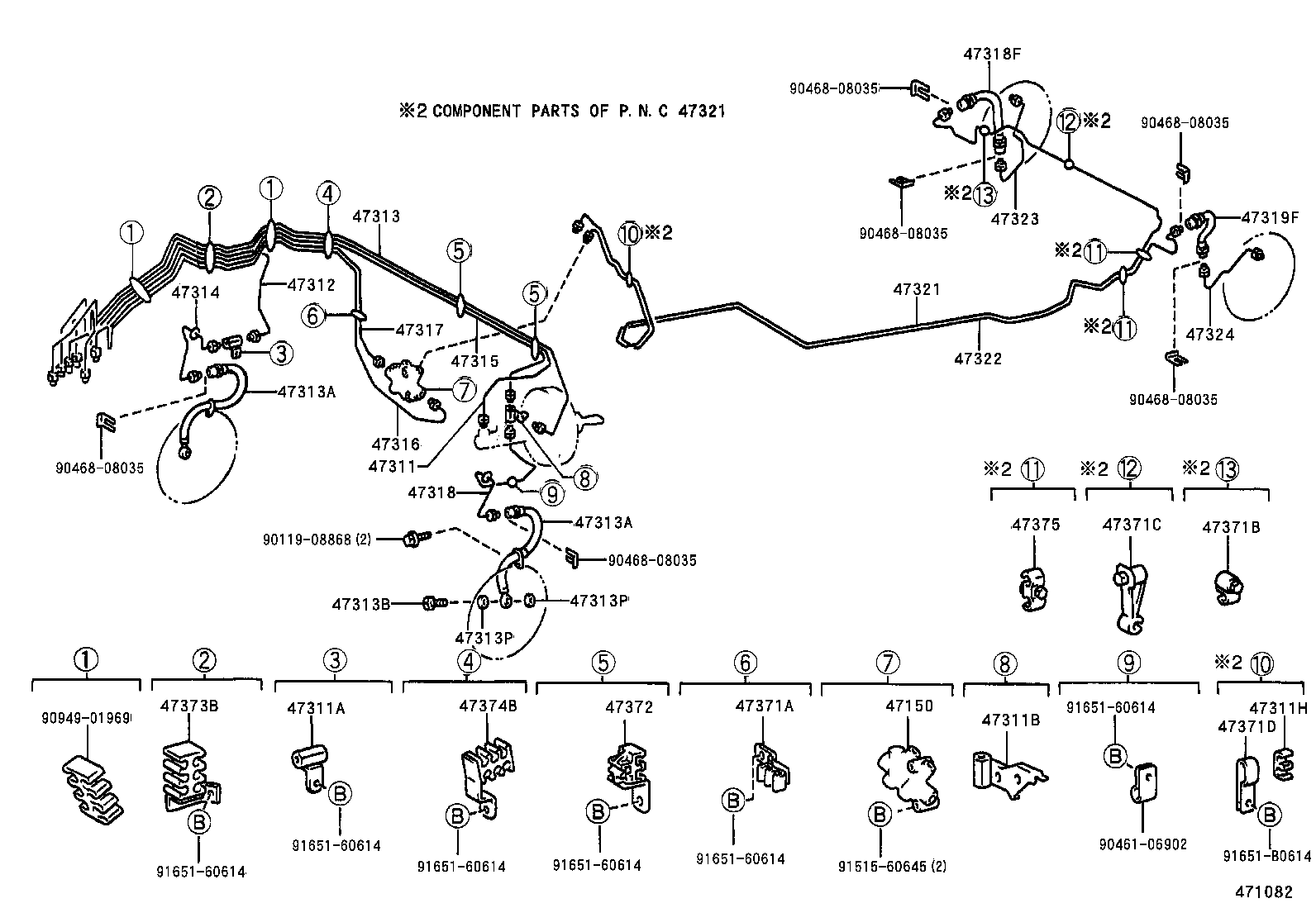

59 parts on this figure

Part number	Description	Fitment	Price
47150 — Valve Assy, Proportioning
47150-12050	Valve Assy, Proportioning 1994-09 → 1996-08 ended	EL5#	—
47150-12230	Valve Assy, Proportioning 1996-08 → —	EL5#	—
47150-44020 note	Valve Assy, Proportioning 1997-12 → —	EL50 GCC	—
47311 — Tube, Front Brake, NO.1
47311-10180	Tube, Front Brake, NO.1 1994-09 → —	EL50 RHD	—
47311-16160	Tube, Front Brake, NO.1 1994-09 → —	EL5# LHD	—
47311-16250 note	Tube, Front Brake, NO.1 1997-12 → —	EL50 GCC	—
47311A — Way(FOR FRONT BRAKE TUBE)
90412-10169	Way(FOR FRONT BRAKE TUBE) 1997-12 → —	EL50 GCC	—
47311B — Way, NO.1(FOR FRONT BRAKE TUBE)
47391-16020 note	Way, NO.1(FOR FRONT BRAKE TUBE) 1997-12 → —	EL50 GCC	—
90413-10004	Way, NO.1(FOR FRONT BRAKE TUBE) 1994-09 → —	EL5# LHD	—
90413-10259	Way, NO.1(FOR FRONT BRAKE TUBE) 1994-09 → —	EL50 RHD	—
47311H — Grommet(FOR BRAKE TUBE)
90480-01122	Grommet(FOR BRAKE TUBE) 1994-09 → —	EL5# LHD	—
47312 — Tube, Front Brake, NO.2
47312-16090	Tube, Front Brake, NO.2 1994-09 → —	EL5# LHD	—
47312-16140	Tube, Front Brake, NO.2 1994-09 → —	EL50 RHD	—
47312-16220 note	Tube, Front Brake, NO.2 1997-12 → —	EL50 GCC	—
47313 — Tube, Front Brake, NO.3
47313-16140	Tube, Front Brake, NO.3 1994-09 → —	EL50 RHD	—
47313-16160	Tube, Front Brake, NO.3 1994-09 → —	EL5# LHD	—
47313-16240 note	Tube, Front Brake, NO.3 1997-12 → —	EL50 GCC	—
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-02813 note	Hose, Flexible, NO.1(FOR FRONT) 1994-09 → —	EL5#	—
90947-02814 note	Hose, Flexible, NO.1(FOR FRONT) 1994-09 → —	EL5#	—
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-10015	Bolt, Union(FOR FRONT FLEXIBLE HOSE) 1994-09 → —	EL5#	—
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
90430-10074	Gasket(FOR FRONT FLEXIBLE HOSE) 1994-09 → —	EL5#	—
47314 — Tube, Front Brake, NO.4
47314-10230 note	Tube, Front Brake, NO.4 1997-12 → —	EL50 GCC	—
47314-16090	Tube, Front Brake, NO.4 1994-09 → —	EL50 RHD	—
47314-16100	Tube, Front Brake, NO.4 1994-09 → —	EL5# LHD	—
47315 — Tube, Front Brake, NO.5
47315-16120	Tube, Front Brake, NO.5 1994-09 → —	EL50 RHD	—
47315-16130	Tube, Front Brake, NO.5 1994-09 → —	EL5# LHD	—
47315-16210 note	Tube, Front Brake, NO.5 1997-12 → —	EL50 GCC	—
47316 — Tube, Front Brake, NO.6
47316-16130	Tube, Front Brake, NO.6 1997-12 → —	EL50 GCC	—
47317 — Tube, Front Brake, NO.7
47317-16130	Tube, Front Brake, NO.7 1997-12 → —	EL50 GCC	—
47318 — Tube, Front Brake, NO.8
47318-16021	Tube, Front Brake, NO.8 1997-12 → —	EL50 GCC	—
47318F — Hose, Flexible(FOR REAR RH)
90947-02637	Hose, Flexible(FOR REAR RH) 1994-09 → —	EL5#	—
47319F — Hose, Flexible(FOR REAR LH)
90947-02637	Hose, Flexible(FOR REAR LH) 1994-09 → —	EL5#	—
47321 — Tube, Rear Brake, NO.1
47321-16110	Tube, Rear Brake, NO.1 1994-09 → —	EL5# LHD GEN	—
47321-16120	Tube, Rear Brake, NO.1 1994-09 → 1997-05 ended	EL50 GCC	—
47321-16120 note	Tube, Rear Brake, NO.1 1997-05 → —	EL50 LHD	—
47321-16140	Tube, Rear Brake, NO.1 1994-09 → —	EL50 RHD	—
47322 — Tube, Rear Brake, NO.2
47322-16100	Tube, Rear Brake, NO.2 1994-09 → —	EL5# LHD GEN	—
47322-16110	Tube, Rear Brake, NO.2 1994-09 → 1997-05 ended	EL50 GCC	—
47322-16110 note	Tube, Rear Brake, NO.2 1997-05 → —	EL50 LHD	—
47322-16130	Tube, Rear Brake, NO.2 1994-09 → —	EL50 RHD	—
47323 — Tube, Rear Brake, NO.3
47323-16170	Tube, Rear Brake, NO.3 1994-09 → —	EL5#	—
47324 — Tube, Rear Brake, NO.4
47324-16160	Tube, Rear Brake, NO.4 1994-09 → —	EL5#	—
47371A — Clamp, Brake Tube, NO.1
47371-16040 note	Clamp, Brake Tube, NO.1 1997-12 → —	EL50 GCC	—
47371-16050 note	Clamp, Brake Tube, NO.1 1996-08 → —	EL5# LHD	—
47371-16050	Clamp, Brake Tube, NO.1 1994-09 → 1996-08 ended	EL5# LHD	—
47371-16100 note	Clamp, Brake Tube, NO.1 1996-08 → —	EL5# LHD	—
90461-06221	Clamp, Brake Tube, NO.1 1994-09 → —	EL50 RHD	—
47371B — Clamp, Brake Tube, NO.6
47371-10100	Clamp, Brake Tube, NO.6 1994-09 → —	EL5#	—
47371C — Clamp, Brake Tube, NO.7
47371-10110	Clamp, Brake Tube, NO.7 1994-09 → —	EL5#	—
47371D — Clamp, Brake Tube, NO.8
47371-30010	Clamp, Brake Tube, NO.8 1994-09 → —	EL50 RHD	—
90949-01703	Clamp, Brake Tube, NO.8 1994-09 → —	EL5# LHD	—
47372 — Clamp, Brake Tube, NO.2
47371-10140	Clamp, Brake Tube, NO.2 1994-09 → —	EL5# LHD	—
47371-16050 note	Clamp, Brake Tube, NO.2 1997-12 → —	EL50 GCC	—
90461-10738	Clamp, Brake Tube, NO.2 1994-09 → —	EL50 RHD	—
47373B — Clamp, Brake Tube, NO.3
47371-16080 note	Clamp, Brake Tube, NO.3 1997-12 → —	EL50 GCC	—
90461-06902	Clamp, Brake Tube, NO.3 1994-09 → —	EL5# LHD	—
90949-01207	Clamp, Brake Tube, NO.3 1994-09 → —	EL50 RHD	—
47374B — Clamp, Brake Tube, NO.4
47371-16090	Clamp, Brake Tube, NO.4 1997-12 → —	EL50 GCC	—
47375 — Clamp, Brake Tube, NO.5
47371-10080	Clamp, Brake Tube, NO.5 1994-09 → —	EL5#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
