Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

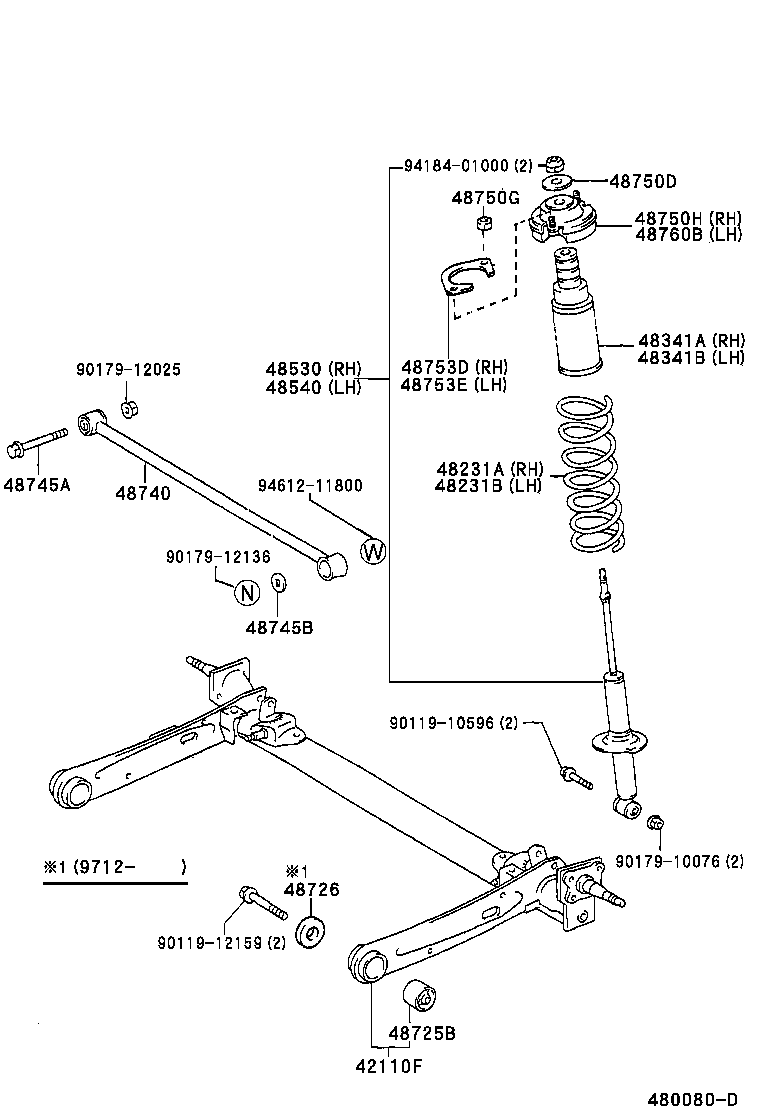

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42110F — Beam Assy, Rear Axle | ||||
| 42110-16170 |
Beam Assy, Rear Axle
1994-09 → 1999-07
ended
|
EL5# | — | |
| 42110-16191 note |
Beam Assy, Rear Axle
1997-12 → 1999-07
ended
|
EL50 GCC | — | |
| 48231A — Spring, Coil, Rear RH | ||||
| 48231-16500 |
Spring, Coil, Rear RH
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 48231-16720 |
Spring, Coil, Rear RH
1994-09 → 1997-12
ended
|
EL50 GCC | — | |
| 48231-16750 note |
Spring, Coil, Rear RH
1995-08 → —
|
EL5# 4FC,5F;EL50 3FC GEN | — | |
| 48231-16750 note |
Spring, Coil, Rear RH
1994-09 → 1995-08
ended
|
EL5# GEN | — | |
| 48231-16840 |
Spring, Coil, Rear RH
1996-08 → —
|
EL5# GEN | — | |
| 48231-1G040 |
Spring, Coil, Rear RH
1997-12 → —
|
EL50 GCC | — | |
| 48231B — Spring, Coil, Rear LH | ||||
| 48231-16500 |
Spring, Coil, Rear LH
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 48231-16720 |
Spring, Coil, Rear LH
1994-09 → 1997-12
ended
|
EL50 GCC | — | |
| 48231-16750 note |
Spring, Coil, Rear LH
1994-09 → 1995-08
ended
|
EL5# GEN | — | |
| 48231-16750 note |
Spring, Coil, Rear LH
1995-08 → —
|
EL5# 4FC,5F;EL50 3FC GEN | — | |
| 48231-16840 |
Spring, Coil, Rear LH
1996-08 → —
|
EL5# GEN | — | |
| 48231-1G040 |
Spring, Coil, Rear LH
1997-12 → —
|
EL50 GCC | — | |
| 48341A — Bumper, Rear Spring, NO.1 RH | ||||
| 48341-10140 |
Bumper, Rear Spring, NO.1 RH
1994-09 → —
|
EL5# | — | |
| 48341B — Bumper, Rear Spring, NO.1 LH | ||||
| 48341-10140 |
Bumper, Rear Spring, NO.1 LH
1994-09 → —
|
EL5# | — | |
| 48530 — Absorber Assy, Shock, Rear RH | ||||
| 48530-19575 |
Absorber Assy, Shock, Rear RH
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 48530-19595 |
Absorber Assy, Shock, Rear RH
1994-09 → 1997-08
ended
|
EL50 GCC | — | |
| 48530-19595 note |
Absorber Assy, Shock, Rear RH
1994-09 → 1997-08
ended
|
EL5# GEN | — | |
| 48530-19596 note |
Absorber Assy, Shock, Rear RH
1997-08 → —
|
EL5# | — | |
| 48530-19875 |
Absorber Assy, Shock, Rear RH
1996-08 → 1997-12
ended
|
EL5# GEN | — | |
| 48530-80013 |
Absorber Assy, Shock, Rear RH
1997-12 → —
|
EL5# GEN | — | |
| 48540 — Absorber Assy, Shock, Rear LH | ||||
| 48530-19575 |
Absorber Assy, Shock, Rear LH
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 48530-19595 |
Absorber Assy, Shock, Rear LH
1994-09 → 1997-08
ended
|
EL50 GCC | — | |
| 48530-19595 note |
Absorber Assy, Shock, Rear LH
1994-09 → 1997-08
ended
|
EL5# GEN | — | |
| 48530-19596 note |
Absorber Assy, Shock, Rear LH
1997-08 → —
|
EL5# | — | |
| 48530-19875 |
Absorber Assy, Shock, Rear LH
1996-08 → 1997-12
ended
|
EL5# GEN | — | |
| 48530-80013 |
Absorber Assy, Shock, Rear LH
1997-12 → —
|
EL5# GEN | — | |
| 48725B — Bush, Rear Suspension Arm, NO.1 | ||||
| 48725-10040 |
Bush, Rear Suspension Arm, NO.1
1997-12 → 1999-07
ended
|
EL50 GCC | — | |
| 48725-16150 |
Bush, Rear Suspension Arm, NO.1
1994-09 → 1996-01
ended
|
EL5# | — | |
| 48726 — Seat, Rear Suspension Arm | ||||
| 48726-16010 |
Seat, Rear Suspension Arm
1997-12 → —
|
EL5# | — | |
| 48740 — Rod Assy, Rear Lateral Control | ||||
| 48740-16080 |
Rod Assy, Rear Lateral Control
1994-09 → —
|
EL5# | — | |
| 48745A — Bolt, Hexagon(FOR LATERAL CONTROL ROD) | ||||
| 90105-12070 |
Bolt, Hexagon(FOR LATERAL CONTROL ROD)
1994-09 → —
|
EL5# | — | |
| 48745B — Washer, Lateral Control Rod Cushion | ||||
| 90201-12037 |
Washer, Lateral Control Rod Cushion
1994-09 → —
|
EL5# | — | |
| 48750D — Retainer(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) | ||||
| 48597-10010 |
Retainer(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
1996-08 → —
|
EL5# | — | |
| 90948-02082 |
Retainer(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
1994-09 → 1996-08
ended
|
EL5# | — | |
| 48750G — Nut(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08090 |
Nut(FOR REAR SUSPENSION SUPPORT)
1997-04 → —
|
EL5# | — | |
| 90179-08206 |
Nut(FOR REAR SUSPENSION SUPPORT)
1994-09 → 1997-04
ended
|
EL5# | — | |
| 48750H — Support Assy, Rear Suspension, RH | ||||
| 48750-16100 |
Support Assy, Rear Suspension, RH
1994-09 → —
|
EL5# GEN | — | |
| 48750-16110 |
Support Assy, Rear Suspension, RH
1994-09 → —
|
EL50 GCC | — | |
| 48750-16110 note |
Support Assy, Rear Suspension, RH
1994-09 → —
|
EL5# GEN | — | |
| 48753D — Cover, Rear Suspension Supoport, NO.2 RH | ||||
| 48753-16020 |
Cover, Rear Suspension Supoport, NO.2 RH
1996-08 → —
|
EL5# | — | |
| 48753E — Cover, Rear Suspension Supoport, NO.2 LH | ||||
| 48753-16020 |
Cover, Rear Suspension Supoport, NO.2 LH
1996-08 → —
|
EL5# | — | |
| 48760B — Support Assy Rear Suspension, LH | ||||
| 48750-16100 |
Support Assy Rear Suspension, LH
1994-09 → —
|
EL5# GEN | — | |
| 48750-16110 |
Support Assy Rear Suspension, LH
1994-09 → —
|
EL50 GCC | — | |
| 48750-16110 note |
Support Assy Rear Suspension, LH
1994-09 → —
|
EL5# GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
