Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

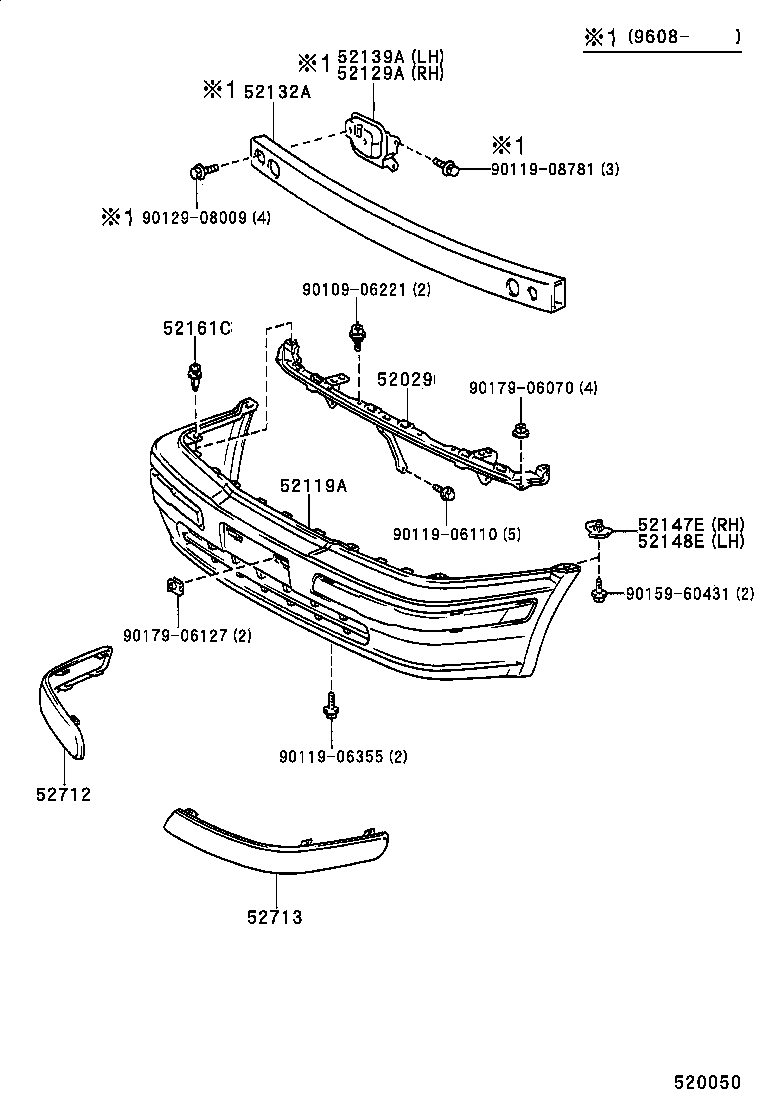

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52029 — Reinforcement Sub-assy, Front Bumper, Upper | ||||
| 52029-16050 |
Reinforcement Sub-assy, Front Bumper, Upper
1994-09 → 1997-12
ended
|
EL5# | — | |
| 52029-16052 |
Reinforcement Sub-assy, Front Bumper, Upper
1997-12 → —
|
EL5# | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-16420 |
Cover, Front Bumper
1994-09 → 1997-12
ended
|
EL5# | — | |
| 52119-16520 |
Cover, Front Bumper
1997-12 → —
|
EL5# | — | |
| 52129A — Arm, Front Bumper, Upper NO.2 RH | ||||
| 52129-16010 |
Arm, Front Bumper, Upper NO.2 RH
1996-08 → —
|
EL5# | — | |
| 52132A — Reinforcement, Front Bumper, NO.2 | ||||
| 52132-16060 |
Reinforcement, Front Bumper, NO.2
1996-08 → 1997-12
ended
|
EL5# | — | |
| 52132-16070 |
Reinforcement, Front Bumper, NO.2
1997-12 → —
|
EL5# | — | |
| 52139A — Arm, Front Bumper, Upper NO.2 LH | ||||
| 52139-16010 |
Arm, Front Bumper, Upper NO.2 LH
1996-08 → —
|
EL5# | — | |
| 52147E — Bracket, Front Bumper Mounting, RH | ||||
| 52147-16080 |
Bracket, Front Bumper Mounting, RH
1994-09 → —
|
EL5# | — | |
| 52148E — Bracket, Front Bumper Mounting, LH | ||||
| 52147-16080 |
Bracket, Front Bumper Mounting, LH
1994-09 → —
|
EL5# | — | |
| 52161C — Piece, Front Bumper | ||||
| 52161-16010 |
Piece, Front Bumper
1994-09 → —
|
EL5# | — | |
| 52712 — Moulding, Front Bumper Side, RH | ||||
| 52712-16010 |
Moulding, Front Bumper Side, RH
1994-09 → 1997-12
ended
|
EL5# | — | |
| 52712-16050 |
Moulding, Front Bumper Side, RH
1997-12 → —
|
EL5# | — | |
| 52712-16070-B0 note |
Moulding, Front Bumper Side, RH
1997-12 → —
|
EL5# | — | |
| 52712-16070-B2 note |
Moulding, Front Bumper Side, RH
1997-12 → —
|
EL5# | — | |
| 52713 — Plug, Front Bumper Moulding | ||||
| 52713-16010 |
Plug, Front Bumper Moulding
1994-09 → 1997-12
ended
|
EL5# | — | |
| 52713-16050 |
Plug, Front Bumper Moulding
1997-12 → —
|
EL5# | — | |
| 52713-16070-B0 note |
Plug, Front Bumper Moulding
1997-12 → —
|
EL5# | — | |
| 52713-16070-B2 note |
Plug, Front Bumper Moulding
1997-12 → —
|
EL5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
