Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

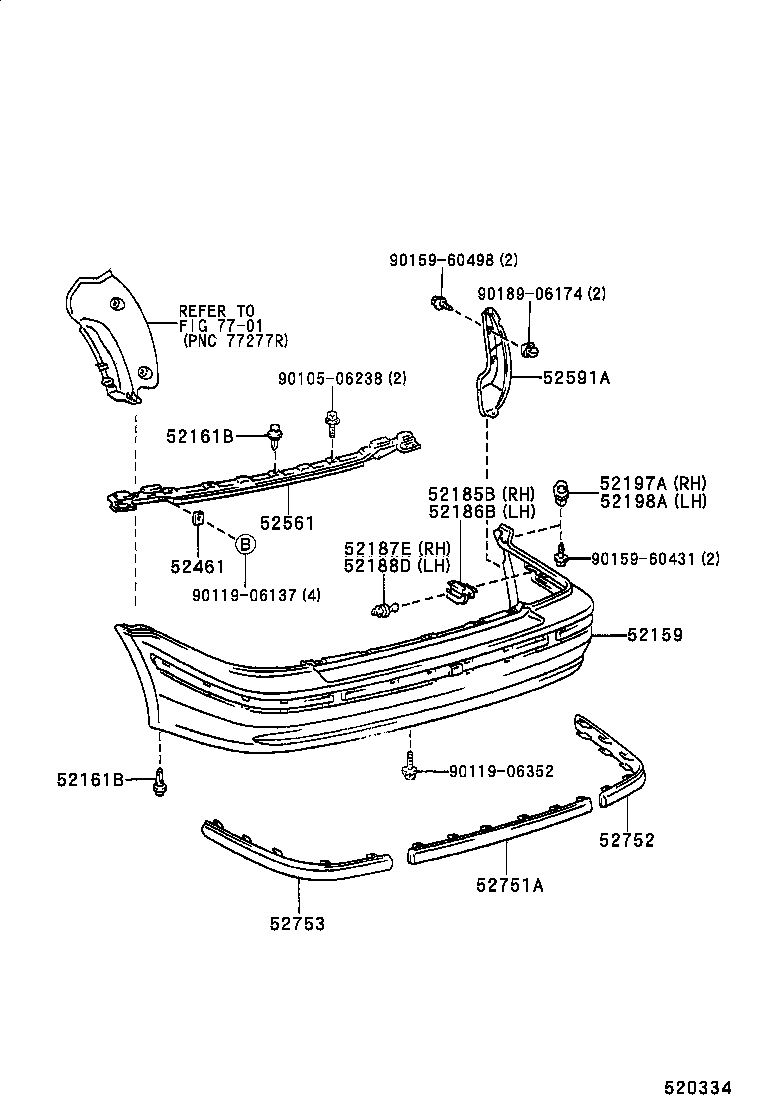

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52159 — Cover, Rear Bumper | ||||
| 52159-16450 |
Cover, Rear Bumper
1994-09 → 1997-12
ended
|
EL5# | — | |
| 52159-16530 |
Cover, Rear Bumper
1997-12 → —
|
EL5# | — | |
| 52161B — Piece, Rear Bumper | ||||
| 52161-16010 |
Piece, Rear Bumper
1994-09 → 1996-08
ended
|
EL5# | — | |
| 52161-16010 |
Piece, Rear Bumper
1996-08 → —
|
EL5# | — | |
| 52185B — Bracket, Rear Bumper Side Mounting, RH | ||||
| 52185-16020 |
Bracket, Rear Bumper Side Mounting, RH
1994-09 → 1997-12
ended
|
EL5# | — | |
| 52185-16050 |
Bracket, Rear Bumper Side Mounting, RH
1997-12 → —
|
EL5# | — | |
| 52186B — Bracket, Rear Bumper Side Mounting, LH | ||||
| 52185-16020 |
Bracket, Rear Bumper Side Mounting, LH
1994-09 → 1997-12
ended
|
EL5# | — | |
| 52185-16050 |
Bracket, Rear Bumper Side Mounting, LH
1997-12 → —
|
EL5# | — | |
| 52187E — Guide, Rear Bumper Location, RH | ||||
| 52187-16070 |
Guide, Rear Bumper Location, RH
1994-09 → —
|
EL5# | — | |
| 52188D — Guide, Rear Bumper Location, LH | ||||
| 52187-16070 |
Guide, Rear Bumper Location, LH
1994-09 → —
|
EL5# | — | |
| 52197A — Bracket, Rear Bumper Seal, RH | ||||
| 52197-16020 |
Bracket, Rear Bumper Seal, RH
1994-09 → —
|
EL5# | — | |
| 52198A — Bracket, Rear Bumper Seal, LH | ||||
| 52197-16020 |
Bracket, Rear Bumper Seal, LH
1994-09 → —
|
EL5# | — | |
| 52461 — Pad, Rear Bumper, Center | ||||
| 53882-16030 |
Pad, Rear Bumper, Center
1994-09 → —
|
EL5# | — | |
| 52561 — Retainer, Rear Bumper, Upper Center | ||||
| 52508-16040 |
Retainer, Rear Bumper, Upper Center
1994-09 → —
|
EL5# | — | |
| 52591A — Seal, Rear Bumper | ||||
| 52591-16090 |
Seal, Rear Bumper
1994-09 → —
|
EL5# | — | |
| 52751A — Moulding, Rear Bumper, Center | ||||
| 52751-16050 |
Moulding, Rear Bumper, Center
1997-12 → 1999-07
ended
|
EL5# | — | |
| 52751-16060-B0 note |
Moulding, Rear Bumper, Center
1997-12 → 1999-07
ended
|
EL5# | — | |
| 52751-16060-B2 note |
Moulding, Rear Bumper, Center
1997-12 → 1999-07
ended
|
EL5# | — | |
| 52752 — Moulding, Rear Bumper Side, RH | ||||
| 52752-16020 |
Moulding, Rear Bumper Side, RH
1994-09 → 1997-12
ended
|
EL5# | — | |
| 52752-16060 |
Moulding, Rear Bumper Side, RH
1997-12 → —
|
EL5# | — | |
| 52752-16080-B0 note |
Moulding, Rear Bumper Side, RH
1997-12 → —
|
EL5# | — | |
| 52752-16080-B2 note |
Moulding, Rear Bumper Side, RH
1997-12 → —
|
EL5# | — | |
| 52753 — Moulding, Rear Bumper Side, LH | ||||
| 52753-16020 |
Moulding, Rear Bumper Side, LH
1994-09 → 1997-12
ended
|
EL5# | — | |
| 52753-16060 |
Moulding, Rear Bumper Side, LH
1997-12 → —
|
EL5# | — | |
| 52753-16080-B0 note |
Moulding, Rear Bumper Side, LH
1997-12 → —
|
EL5# | — | |
| 52753-16080-B2 note |
Moulding, Rear Bumper Side, LH
1997-12 → —
|
EL5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
