Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

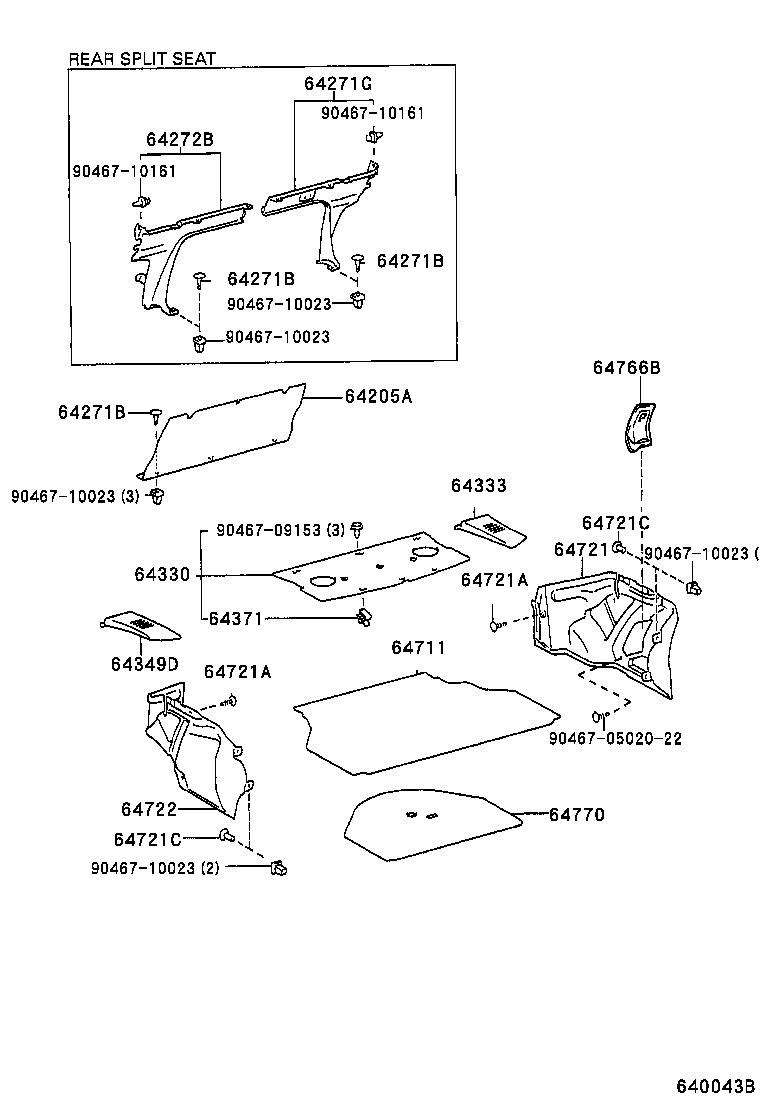

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64205A — Cover Sub-assy, Room Partition | ||||
| 64275-16030-C0 note |
Cover Sub-assy, Room Partition
1994-09 → —
|
EL5# | — | |
| 64271B — Clip(FOR ROOM PARTITION BOARD) | ||||
| 90467-07115-C0 note |
Clip(FOR ROOM PARTITION BOARD)
1994-09 → —
|
EL5# LHD GEN | — | |
| 90467-07115-C0 note |
Clip(FOR ROOM PARTITION BOARD)
1994-09 → —
|
EL5# | — | |
| 64271G — Board, Room Partition, RH | ||||
| 64271-16060-C0 note |
Board, Room Partition, RH
1994-09 → 1997-12
ended
|
EL5# LHD GEN | — | |
| 64271-16061-C0 note |
Board, Room Partition, RH
1997-12 → —
|
EL5# LHD GEN | — | |
| 64272B — Board, Room Partition, LH | ||||
| 64272-16060-C0 note |
Board, Room Partition, LH
1994-09 → 1997-12
ended
|
EL5# LHD GEN | — | |
| 64272-16061-C0 note |
Board, Room Partition, LH
1997-12 → —
|
EL5# LHD GEN | — | |
| 64330 — Panel Assy, Package Tray Trim | ||||
| 64330-16560-B0 note |
Panel Assy, Package Tray Trim
1994-09 → 1996-08
ended
|
EL5# | — | |
| 64330-16560-E0 note |
Panel Assy, Package Tray Trim
1994-09 → 1996-08
ended
|
EL5# | — | |
| 64330-16580-B0 note |
Panel Assy, Package Tray Trim
1994-09 → 1996-08
ended
|
EL5# LHD GEN | — | |
| 64330-16580-E0 note |
Panel Assy, Package Tray Trim
1994-09 → 1996-08
ended
|
EL5# LHD GEN | — | |
| 64330-16810-B0 note |
Panel Assy, Package Tray Trim
1996-08 → —
|
EL5# | — | |
| 64330-16810-E0 note |
Panel Assy, Package Tray Trim
1996-08 → —
|
EL5# | — | |
| 64330-16830-B0 note |
Panel Assy, Package Tray Trim
1996-08 → 1997-12
ended
|
EL5# LHD GEN | — | |
| 64330-16830-B0 note |
Panel Assy, Package Tray Trim
1997-12 → —
|
EL5# LHD | — | |
| 64330-16830-E0 note |
Panel Assy, Package Tray Trim
1996-08 → 1997-12
ended
|
EL5# LHD GEN | — | |
| 64330-16830-E0 note |
Panel Assy, Package Tray Trim
1997-12 → —
|
EL5# LHD | — | |
| 64333 — Cover, Package Tray Trim, Side | ||||
| 64333-16070-B1 note |
Cover, Package Tray Trim, Side
1996-08 → —
|
EL5# | — | |
| 64333-16070-E0 note |
Cover, Package Tray Trim, Side
1994-09 → —
|
EL5# | — | |
| 64333-16080-B1 note |
Cover, Package Tray Trim, Side
1996-08 → —
|
EL5# GEN | — | |
| 64333-16080-E0 note |
Cover, Package Tray Trim, Side
1994-09 → —
|
EL5# GEN | — | |
| 64349D — Cover, Package Tray Trim Side, LH | ||||
| 64349-16050-B1 note |
Cover, Package Tray Trim Side, LH
1996-08 → —
|
EL5# | — | |
| 64349-16050-E0 note |
Cover, Package Tray Trim Side, LH
1994-09 → —
|
EL5# | — | |
| 64349-16060-B1 note |
Cover, Package Tray Trim Side, LH
1996-08 → —
|
EL5# GEN | — | |
| 64349-16060-E0 note |
Cover, Package Tray Trim Side, LH
1994-09 → —
|
EL5# GEN | — | |
| 64371 — Retainer, Package Tray Trim | ||||
| 64371-16010 |
Retainer, Package Tray Trim
1994-09 → —
|
EL5# | — | |
| 64711 — Mat, Luggage Compartment Floor | ||||
| 64711-16130-C0 note |
Mat, Luggage Compartment Floor
1994-09 → 1996-08
ended
|
EL5# | — | |
| 64711-16190-C0 note |
Mat, Luggage Compartment Floor
1996-08 → —
|
EL5# | — | |
| 64721 — Cover, Luggage Compartment Trim, Inner RH | ||||
| 64721-16070-C0 note |
Cover, Luggage Compartment Trim, Inner RH
1994-09 → 1995-10
ended
|
EL5# | — | |
| 64721-16071-C0 note |
Cover, Luggage Compartment Trim, Inner RH
1995-10 → 1996-08
ended
|
EL5# | — | |
| 64721-16100-C0 note |
Cover, Luggage Compartment Trim, Inner RH
1996-08 → —
|
EL5# | — | |
| 64721A — Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-05096-22 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1994-09 → 1996-08
ended
|
EL5# | — | |
| 90467-05096-22 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1996-08 → —
|
EL5# | — | |
| 64721C — Clip(LUGGAGE COMPARTMENT) | ||||
| 90467-14041-C0 note |
Clip(LUGGAGE COMPARTMENT)
1994-09 → —
|
EL5# | — | |
| 64722 — Cover, Luggage Compartment Trim, Inner LH | ||||
| 64722-16070-C0 note |
Cover, Luggage Compartment Trim, Inner LH
1994-09 → 1995-10
ended
|
EL5# | — | |
| 64722-16071-C0 note |
Cover, Luggage Compartment Trim, Inner LH
1995-10 → 1996-08
ended
|
EL5# | — | |
| 64722-16120-C0 note |
Cover, Luggage Compartment Trim, Inner LH
1996-08 → —
|
EL5# | — | |
| 64766B — Cover, Quarter Trim Jack | ||||
| 64766-16050-C0 note |
Cover, Quarter Trim Jack
1996-08 → 1999-07
ended
|
EL5# | — | |
| 64770 — Cover Assy, Spare Wheel | ||||
| 64770-16240 |
Cover Assy, Spare Wheel
1994-09 → —
|
EL5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
