Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

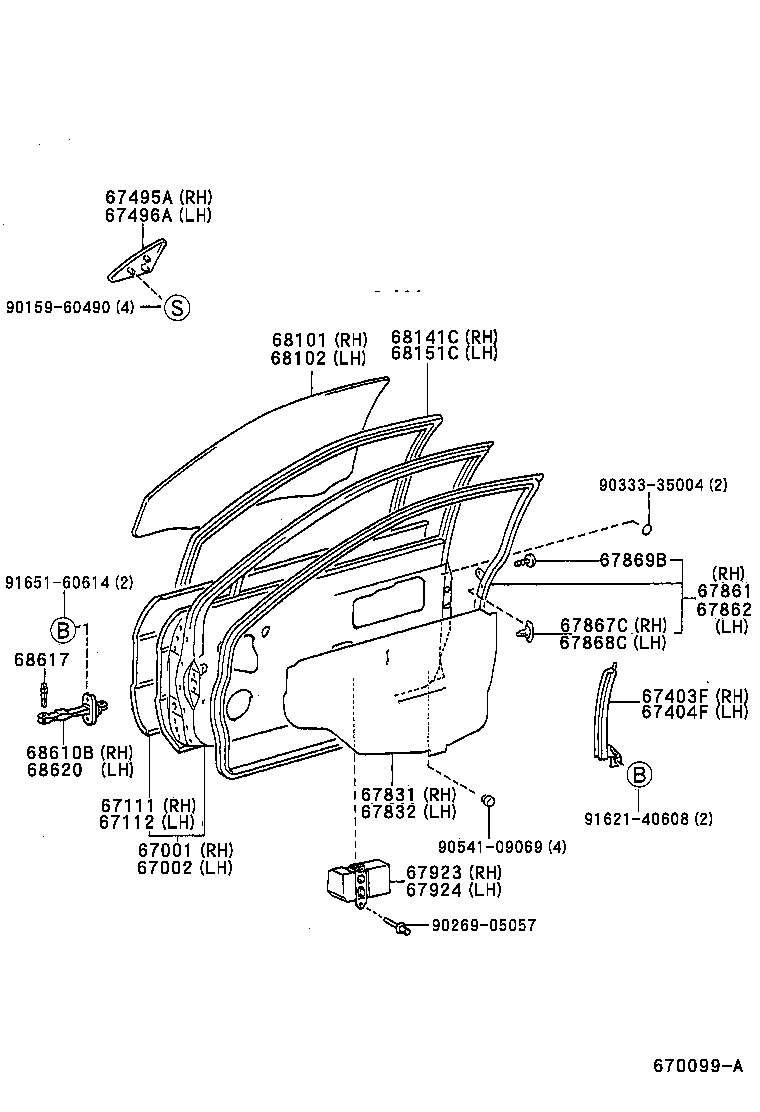

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67001 — Panel Sub-assy, Front Door, RH | ||||
| 67001-16600 |
Panel Sub-assy, Front Door, RH
1994-09 → —
|
EL5# | — | |
| 67002 — Panel Sub-assy, Front Door, LH | ||||
| 67002-16530 |
Panel Sub-assy, Front Door, LH
1994-09 → —
|
EL5# | — | |
| 67111 — Panel, Front Door, Outer RH | ||||
| 67111-16220 |
Panel, Front Door, Outer RH
1994-09 → —
|
EL5# | — | |
| 67112 — Panel, Front Door, Outer LH | ||||
| 67112-16200 |
Panel, Front Door, Outer LH
1994-09 → —
|
EL5# | — | |
| 67403F — Frame Sub-assy, Front Door, Rear Lower RH | ||||
| 67403-16140 |
Frame Sub-assy, Front Door, Rear Lower RH
1994-09 → —
|
EL5# | — | |
| 67404F — Frame Sub-assy, Front Door, Rear Lower LH | ||||
| 67404-16140 |
Frame Sub-assy, Front Door, Rear Lower LH
1994-09 → 1999-07
ended
|
EL5# | — | |
| 67495A — Cover, Front Door Front Lower Frame, Upper RH | ||||
| 67495-16120 |
Cover, Front Door Front Lower Frame, Upper RH
1994-09 → 1995-08
ended
|
EL5# LHD | — | |
| 67495-16120 |
Cover, Front Door Front Lower Frame, Upper RH
1995-08 → —
|
EL5# LHD GEN | — | |
| 67496A — Cover, Front Door Front Lower Frame, Upper LH | ||||
| 67496-16120 |
Cover, Front Door Front Lower Frame, Upper LH
1994-09 → 1995-08
ended
|
EL5# LHD | — | |
| 67496-16120 |
Cover, Front Door Front Lower Frame, Upper LH
1995-08 → —
|
EL5# LHD GEN | — | |
| 67831 — Cover, Front Door Service Hole, RH | ||||
| 67831-16390 |
Cover, Front Door Service Hole, RH
1994-09 → —
|
EL5# | — | |
| 67831-16400 note |
Cover, Front Door Service Hole, RH
1994-09 → 1995-08
ended
|
EL5# LHD GEN | — | |
| 67831-16400 note |
Cover, Front Door Service Hole, RH
1995-08 → —
|
EL5# LHD | — | |
| 67832 — Cover, Front Door Service Hole, LH | ||||
| 67831-16390 |
Cover, Front Door Service Hole, LH
1994-09 → —
|
EL5# | — | |
| 67832-16120 note |
Cover, Front Door Service Hole, LH
1994-09 → 1995-08
ended
|
EL5# LHD GEN | — | |
| 67832-16120 note |
Cover, Front Door Service Hole, LH
1995-08 → —
|
EL5# LHD | — | |
| 67861 — Weatherstrip, Front Door, RH | ||||
| 67861-16300 |
Weatherstrip, Front Door, RH
1994-09 → —
|
EL5# | — | |
| 67862 — Weatherstrip, Front Door, LH | ||||
| 67862-16300 |
Weatherstrip, Front Door, LH
1994-09 → —
|
EL5# | — | |
| 67867C — Retainer, Front Door Weatherstrip, RH | ||||
| 67867-12150 |
Retainer, Front Door Weatherstrip, RH
1994-09 → —
|
EL5# | — | |
| 67868C — Retainer, Front Door Weatherstrip, LH | ||||
| 67867-12150 |
Retainer, Front Door Weatherstrip, LH
1994-09 → —
|
EL5# | — | |
| 67869B — Clip, Front Door Weatherstrip | ||||
| 67869-32020 |
Clip, Front Door Weatherstrip
1994-09 → —
|
EL5# | — | |
| 67923 — Cushion, Front Door Stiffener, NO.1 | ||||
| 67923-16010 |
Cushion, Front Door Stiffener, NO.1
1994-09 → —
|
EL5# | — | |
| 67924 — Cushion, Front Door Stiffener, NO.2 | ||||
| 67924-16010 |
Cushion, Front Door Stiffener, NO.2
1994-09 → —
|
EL5# | — | |
| 68101 — Glass Sub-assy, Front Door, RH | ||||
| 68110-16120 note |
Glass Sub-assy, Front Door, RH
1994-09 → 1996-08
ended
|
EL5# | — | |
| 68110-16130 note |
Glass Sub-assy, Front Door, RH
1994-09 → 1995-08
ended
|
EL5# | — | |
| 68110-16200 note |
Glass Sub-assy, Front Door, RH
1995-08 → —
|
EL5# | — | |
| 68110-16210 note |
Glass Sub-assy, Front Door, RH
1996-09 → 1996-12
ended
|
EL5# GEN | — | |
| 68102 — Glass Sub-assy, Front Door, LH | ||||
| 68120-16120 note |
Glass Sub-assy, Front Door, LH
1994-09 → 1996-08
ended
|
EL5# | — | |
| 68120-16130 note |
Glass Sub-assy, Front Door, LH
1994-09 → 1995-08
ended
|
EL5# | — | |
| 68120-16200 note |
Glass Sub-assy, Front Door, LH
1995-08 → —
|
EL5# | — | |
| 68120-16210 note |
Glass Sub-assy, Front Door, LH
1996-09 → 1996-12
ended
|
EL5# GEN | — | |
| 68141C — Run, Front Door Glass, RH | ||||
| 68141-16210 |
Run, Front Door Glass, RH
1994-09 → —
|
EL5# | — | |
| 68151C — Run, Front Door Glass, LH | ||||
| 68151-16040 |
Run, Front Door Glass, LH
1994-09 → —
|
EL5# | — | |
| 68610B — Check Assy, Front Door, RH | ||||
| 68610-16090 |
Check Assy, Front Door, RH
1994-09 → —
|
EL5# | — | |
| 68617 — Pin, Front Door Check | ||||
| 68617-12030 |
Pin, Front Door Check
1994-09 → 1996-08
ended
|
EL5# | — | |
| 68617-20011 |
Pin, Front Door Check
1996-08 → —
|
EL5# | — | |
| 68620 — Check Assy, Front Door, LH | ||||
| 68610-16090 |
Check Assy, Front Door, LH
1994-09 → —
|
EL5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
