Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

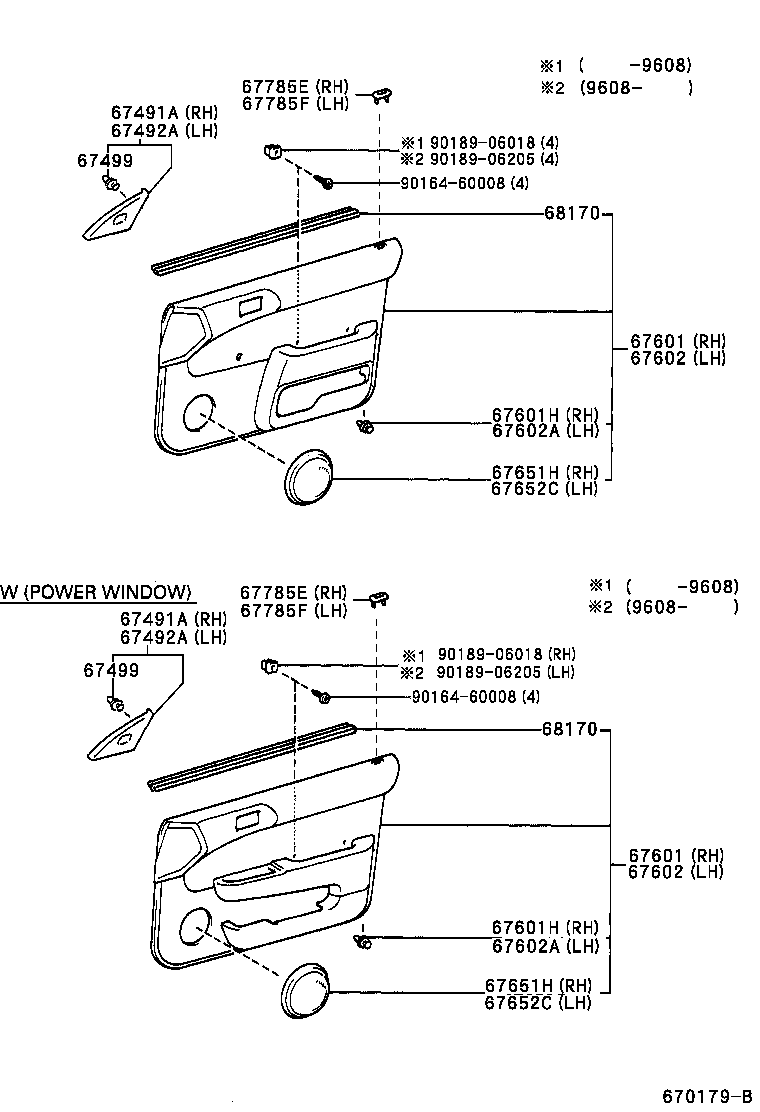

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67491A — Garnish, Front Door Lower Frame Bracket, RH | ||||
| 67491-16110 |
Garnish, Front Door Lower Frame Bracket, RH
1994-09 → 1997-12
ended
|
EL5# | — | |
| 67491-16111 |
Garnish, Front Door Lower Frame Bracket, RH
1997-12 → 1999-07
ended
|
EL5# | — | |
| 67491-16160 note |
Garnish, Front Door Lower Frame Bracket, RH
1995-08 → 1997-12
ended
|
EL5# LHD GEN | — | |
| 67491-16160 note |
Garnish, Front Door Lower Frame Bracket, RH
1994-09 → 1995-08
ended
|
EL5# LHD | — | |
| 67491-16161 note |
Garnish, Front Door Lower Frame Bracket, RH
1997-12 → 1999-07
ended
|
EL5# LHD GEN | — | |
| 67492A — Garnish, Front Door Lower Frame Bracket, LH | ||||
| 67492-16110 |
Garnish, Front Door Lower Frame Bracket, LH
1994-09 → 1997-12
ended
|
EL5# | — | |
| 67492-16111 |
Garnish, Front Door Lower Frame Bracket, LH
1997-12 → 1999-07
ended
|
EL5# | — | |
| 67492-16160 note |
Garnish, Front Door Lower Frame Bracket, LH
1994-09 → 1995-08
ended
|
EL5# LHD | — | |
| 67492-16160 note |
Garnish, Front Door Lower Frame Bracket, LH
1995-08 → 1997-12
ended
|
EL5# LHD GEN | — | |
| 67492-16161 note |
Garnish, Front Door Lower Frame Bracket, LH
1997-12 → 1999-07
ended
|
EL5# LHD GEN | — | |
| 67499 — Retainer, Front Door Lower Frame Bracket Garnish | ||||
| 67771-30070 |
Retainer, Front Door Lower Frame Bracket Garnish
1994-09 → 1999-07
ended
|
EL5# | — | |
| 67601 — Board Sub-assy, Front Door Trim, RH | ||||
| 67610-1G040-B0 note |
Board Sub-assy, Front Door Trim, RH
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 67610-1G040-E0 note |
Board Sub-assy, Front Door Trim, RH
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 67610-1G041-B1 note |
Board Sub-assy, Front Door Trim, RH
1997-12 → —
|
EL50 RHD | — | |
| 67610-1G041-E1 note |
Board Sub-assy, Front Door Trim, RH
1997-12 → —
|
EL50 RHD | — | |
| 67610-1G050-B0 note |
Board Sub-assy, Front Door Trim, RH
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 67610-1G050-E0 note |
Board Sub-assy, Front Door Trim, RH
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 67610-1G051-B1 note |
Board Sub-assy, Front Door Trim, RH
1997-12 → —
|
EL50 RHD | — | |
| 67610-1G051-E1 note |
Board Sub-assy, Front Door Trim, RH
1997-12 → —
|
EL50 RHD | — | |
| 67610-1G060-B0 note |
Board Sub-assy, Front Door Trim, RH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67610-1G060-E0 note |
Board Sub-assy, Front Door Trim, RH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67610-1G061-B1 note |
Board Sub-assy, Front Door Trim, RH
1997-12 → —
|
EL5# LHD | — | |
| 67610-1G061-E1 note |
Board Sub-assy, Front Door Trim, RH
1997-12 → —
|
EL5# LHD | — | |
| 67610-1G070-B0 note |
Board Sub-assy, Front Door Trim, RH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67610-1G070-E0 note |
Board Sub-assy, Front Door Trim, RH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67610-1G071-B1 note |
Board Sub-assy, Front Door Trim, RH
1997-12 → —
|
EL5# LHD | — | |
| 67610-1G071-E1 note |
Board Sub-assy, Front Door Trim, RH
1997-12 → —
|
EL5# LHD | — | |
| 67610-1G240-B0 note |
Board Sub-assy, Front Door Trim, RH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67610-1G240-E0 note |
Board Sub-assy, Front Door Trim, RH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67610-1G241-B1 note |
Board Sub-assy, Front Door Trim, RH
1997-12 → —
|
EL5# LHD | — | |
| 67610-1G241-E1 note |
Board Sub-assy, Front Door Trim, RH
1997-12 → —
|
EL5# LHD | — | |
| 67610-1G250-B0 note |
Board Sub-assy, Front Door Trim, RH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67610-1G250-E0 note |
Board Sub-assy, Front Door Trim, RH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67610-1G251-B1 note |
Board Sub-assy, Front Door Trim, RH
1997-12 → —
|
EL5# LHD | — | |
| 67610-1G251-E1 note |
Board Sub-assy, Front Door Trim, RH
1997-12 → —
|
EL5# LHD | — | |
| 67650-16680-B1 note |
Board Sub-assy, Front Door Trim, RH
1995-09 → 1996-08
ended
|
EL5# LHD | — | |
| 67650-16680-B1 note |
Board Sub-assy, Front Door Trim, RH
1994-09 → 1995-09
ended
|
EL5# LHD GEN | — | |
| 67650-16680-E1 note |
Board Sub-assy, Front Door Trim, RH
1994-09 → 1995-09
ended
|
EL5# LHD GEN | — | |
| 67650-16680-E1 note |
Board Sub-assy, Front Door Trim, RH
1995-09 → 1996-08
ended
|
EL5# LHD | — | |
| 67650-16690-B2 note |
Board Sub-assy, Front Door Trim, RH
1994-09 → 1996-08
ended
|
EL5# | — | |
| 67650-16690-E1 note |
Board Sub-assy, Front Door Trim, RH
1994-09 → 1996-08
ended
|
EL5# | — | |
| 67650-16700-B3 note |
Board Sub-assy, Front Door Trim, RH
1994-09 → 1995-09
ended
|
EL5# LHD GEN | — | |
| 67650-16700-B3 note |
Board Sub-assy, Front Door Trim, RH
1995-09 → 1996-08
ended
|
EL5# LHD | — | |
| 67650-16700-E2 note |
Board Sub-assy, Front Door Trim, RH
1994-09 → 1995-09
ended
|
EL5# LHD GEN | — | |
| 67650-16700-E2 note |
Board Sub-assy, Front Door Trim, RH
1995-09 → 1996-08
ended
|
EL5# LHD | — | |
| 67650-16730-B1 note |
Board Sub-assy, Front Door Trim, RH
1994-09 → 1996-08
ended
|
EL5# | — | |
| 67650-16730-E1 note |
Board Sub-assy, Front Door Trim, RH
1994-09 → 1996-08
ended
|
EL5# | — | |
| 67601H — Retainer, Door Trim, RH | ||||
| 67771-12050 note |
Retainer, Door Trim, RH
1996-08 → —
|
EL5# | — | |
| 67771-16120 |
Retainer, Door Trim, RH
1994-09 → 1996-08
ended
|
EL5# | — | |
| 67771-16120 note |
Retainer, Door Trim, RH
1996-08 → —
|
EL5# | — | |
| 67602 — Board Sub-assy, Front Door Trim, LH | ||||
| 67050-16090-B0 note |
Board Sub-assy, Front Door Trim, LH
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 67050-16090-E0 note |
Board Sub-assy, Front Door Trim, LH
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 67050-16091-B1 note |
Board Sub-assy, Front Door Trim, LH
1997-12 → —
|
EL50 RHD | — | |
| 67050-16091-E1 note |
Board Sub-assy, Front Door Trim, LH
1997-12 → —
|
EL50 RHD | — | |
| 67050-16100-B0 note |
Board Sub-assy, Front Door Trim, LH
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 67050-16100-E0 note |
Board Sub-assy, Front Door Trim, LH
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 67050-16101-B1 note |
Board Sub-assy, Front Door Trim, LH
1997-12 → —
|
EL50 RHD | — | |
| 67050-16101-E1 note |
Board Sub-assy, Front Door Trim, LH
1997-12 → —
|
EL50 RHD | — | |
| 67050-16110-B0 note |
Board Sub-assy, Front Door Trim, LH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67050-16110-E0 note |
Board Sub-assy, Front Door Trim, LH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67050-16111-B1 note |
Board Sub-assy, Front Door Trim, LH
1997-12 → —
|
EL5# LHD | — | |
| 67050-16111-E1 note |
Board Sub-assy, Front Door Trim, LH
1997-12 → —
|
EL5# LHD | — | |
| 67050-16120-B0 note |
Board Sub-assy, Front Door Trim, LH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67050-16120-E0 note |
Board Sub-assy, Front Door Trim, LH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67050-16121-B1 note |
Board Sub-assy, Front Door Trim, LH
1997-12 → —
|
EL5# LHD | — | |
| 67050-16121-E1 note |
Board Sub-assy, Front Door Trim, LH
1997-12 → —
|
EL5# LHD | — | |
| 67050-16130-B0 note |
Board Sub-assy, Front Door Trim, LH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67050-16130-E0 note |
Board Sub-assy, Front Door Trim, LH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67050-16131-B1 note |
Board Sub-assy, Front Door Trim, LH
1997-12 → —
|
EL5# LHD | — | |
| 67050-16131-E1 note |
Board Sub-assy, Front Door Trim, LH
1997-12 → —
|
EL5# LHD | — | |
| 67050-16140-B0 note |
Board Sub-assy, Front Door Trim, LH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67050-16140-E0 note |
Board Sub-assy, Front Door Trim, LH
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 67050-16141-B1 note |
Board Sub-assy, Front Door Trim, LH
1997-12 → —
|
EL5# LHD | — | |
| 67050-16141-E1 note |
Board Sub-assy, Front Door Trim, LH
1997-12 → —
|
EL5# LHD | — | |
| 67620-1G670-B0 note |
Board Sub-assy, Front Door Trim, LH
1994-09 → 1996-08
ended
|
EL5# LHD | — | |
| 67620-1G670-E0 note |
Board Sub-assy, Front Door Trim, LH
1994-09 → 1996-08
ended
|
EL5# LHD | — | |
| 67620-1G680-B1 note |
Board Sub-assy, Front Door Trim, LH
1994-09 → 1995-09
ended
|
EL5# LHD GEN | — | |
| 67620-1G680-B1 note |
Board Sub-assy, Front Door Trim, LH
1995-09 → 1996-08
ended
|
EL5# LHD | — | |
| 67620-1G680-E1 note |
Board Sub-assy, Front Door Trim, LH
1995-09 → 1996-08
ended
|
EL5# LHD | — | |
| 67620-1G680-E1 note |
Board Sub-assy, Front Door Trim, LH
1994-09 → 1995-09
ended
|
EL5# LHD GEN | — | |
| 67620-1G690-B2 note |
Board Sub-assy, Front Door Trim, LH
1994-09 → 1996-08
ended
|
EL50 RHD | — | |
| 67620-1G690-E1 note |
Board Sub-assy, Front Door Trim, LH
1994-09 → 1996-08
ended
|
EL50 RHD | — | |
| 67620-1G730-B1 note |
Board Sub-assy, Front Door Trim, LH
1994-09 → 1996-08
ended
|
EL50 RHD | — | |
| 67620-1G730-E1 note |
Board Sub-assy, Front Door Trim, LH
1994-09 → 1996-08
ended
|
EL50 RHD | — | |
| 67620-1G740-B1 note |
Board Sub-assy, Front Door Trim, LH
1994-09 → 1996-08
ended
|
EL5# LHD | — | |
| 67620-1G740-E1 note |
Board Sub-assy, Front Door Trim, LH
1994-09 → 1996-08
ended
|
EL5# LHD | — | |
| 67620-1G790-B1 note |
Board Sub-assy, Front Door Trim, LH
1995-09 → 1996-08
ended
|
EL5# LHD | — | |
| 67620-1G790-B1 note |
Board Sub-assy, Front Door Trim, LH
1994-09 → 1995-09
ended
|
EL5# LHD GEN | — | |
| 67620-1G790-E1 note |
Board Sub-assy, Front Door Trim, LH
1994-09 → 1995-09
ended
|
EL5# LHD GEN | — | |
| 67620-1G790-E1 note |
Board Sub-assy, Front Door Trim, LH
1995-09 → 1996-08
ended
|
EL5# LHD | — | |
| 67602A — Retainer, Door Trim, LH | ||||
| 67771-12050 note |
Retainer, Door Trim, LH
1996-08 → —
|
EL5# | — | |
| 67771-16120 note |
Retainer, Door Trim, LH
1996-08 → —
|
EL5# | — | |
| 67771-16120 |
Retainer, Door Trim, LH
1994-09 → 1996-08
ended
|
EL5# | — | |
| 67651H — Grille, Speaker Door, RH | ||||
| 67651-16070-B0 note |
Grille, Speaker Door, RH
1994-09 → 1996-08
ended
|
EL5# | — | |
| 67651-16070-B1 note |
Grille, Speaker Door, RH
1996-08 → —
|
EL5# | — | |
| 67651-16070-E0 note |
Grille, Speaker Door, RH
1994-09 → —
|
EL5# | — | |
| 67652C — Grille, Speaker Door, LH | ||||
| 67651-16070-B0 note |
Grille, Speaker Door, LH
1994-09 → 1996-08
ended
|
EL5# | — | |
| 67651-16070-B1 note |
Grille, Speaker Door, LH
1996-08 → —
|
EL5# | — | |
| 67651-16070-E0 note |
Grille, Speaker Door, LH
1994-09 → —
|
EL5# | — | |
| 67785E — Holder, Front Door Lock Control Knob, RH | ||||
| 69751-12050-B0 note |
Holder, Front Door Lock Control Knob, RH
1996-08 → —
|
EL5# | — | |
| 69751-12050-E0 note |
Holder, Front Door Lock Control Knob, RH
1996-08 → —
|
EL5# | — | |
| 67785F — Holder, Front Door Lock Control Knob, LH | ||||
| 69751-12050-B0 note |
Holder, Front Door Lock Control Knob, LH
1996-08 → —
|
EL5# | — | |
| 69751-12050-E0 note |
Holder, Front Door Lock Control Knob, LH
1996-08 → —
|
EL5# | — | |
| 68170 — Weatherstrip Assy, Front Door Glass, Inner | ||||
| 68171-16110 note |
Weatherstrip Assy, Front Door Glass, Inner
1994-09 → 1996-08
ended
|
EL5# | — | |
| 68171-16150 note |
Weatherstrip Assy, Front Door Glass, Inner
1996-08 → 1997-12
ended
|
EL5# | — | |
| 68171-16190 note |
Weatherstrip Assy, Front Door Glass, Inner
1997-12 → —
|
EL5# | — | |
| 68172-16140 note |
Weatherstrip Assy, Front Door Glass, Inner
1994-09 → 1996-08
ended
|
EL5# | — | |
| 68172-16170 note |
Weatherstrip Assy, Front Door Glass, Inner
1996-08 → 1997-12
ended
|
EL5# | — | |
| 68172-16210 note |
Weatherstrip Assy, Front Door Glass, Inner
1997-12 → —
|
EL5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
