Toyota Tercel

1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

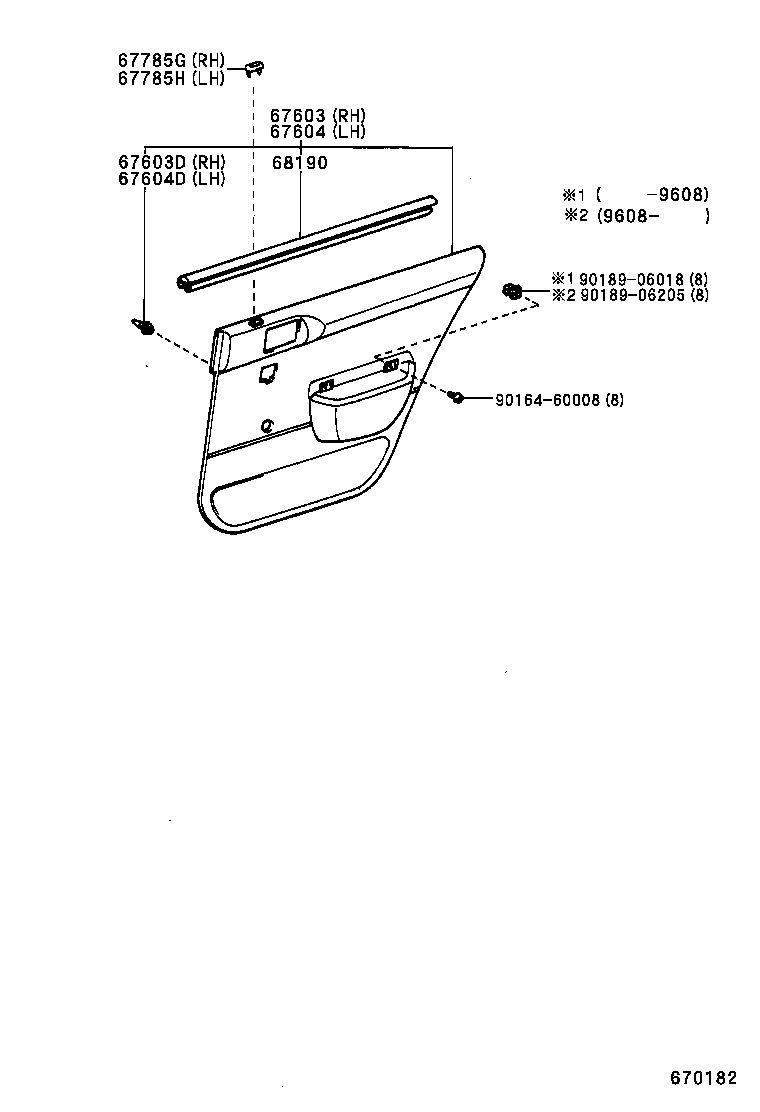

Exploded illustration 670182 67785G — HOLDER, REAR DOOR LOCK CONTROL KNOB, RH (2 parts) 67785H — HOLDER, REAR DOOR LOCK CONTROL KNOB, LH (4 parts) 67603 — BOARD SUB-ASSY, REAR DOOR TRIM, RH (28 parts) 67604 — BOARD SUB-ASSY, REAR DOOR TRIM, LH (28 parts) 67603D — RETAINER, REAR DOOR TRIM, RH (3 parts) 68190 — WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER (6 parts) 67604D — RETAINER, REAR DOOR TRIM, LH (3 parts) 9018906018 — not listed in this catalogue 9018906205 — not listed in this catalogue 9016460008 — not listed in this catalogue
670182 · 7 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
74 parts on this figure
Part number Description Fitment Price
67603 — Board Sub-assy, Rear Door Trim, RH
67630-16530-B1 note Board Sub-assy, Rear Door Trim, RH
1995-09 → 1996-08 ended
EL5# LHD —
67630-16530-B1 note Board Sub-assy, Rear Door Trim, RH
1994-09 → 1995-09 ended
EL5# LHD GEN —
67630-16530-E1 note Board Sub-assy, Rear Door Trim, RH
1994-09 → 1995-09 ended
EL5# LHD GEN —
67630-16530-E1 note Board Sub-assy, Rear Door Trim, RH
1995-09 → 1996-08 ended
EL5# LHD —
67630-16540-B1 note Board Sub-assy, Rear Door Trim, RH
1994-09 → 1996-08 ended
EL5# —
67630-16540-E1 note Board Sub-assy, Rear Door Trim, RH
1994-09 → 1996-08 ended
EL5# —
67630-16550-B3 note Board Sub-assy, Rear Door Trim, RH
1994-09 → 1995-09 ended
EL5# LHD GEN —
67630-16550-B3 note Board Sub-assy, Rear Door Trim, RH
1995-09 → 1996-08 ended
EL5# LHD —
67630-16550-E2 note Board Sub-assy, Rear Door Trim, RH
1994-09 → 1995-09 ended
EL5# LHD GEN —
67630-16550-E2 note Board Sub-assy, Rear Door Trim, RH
1995-09 → 1996-08 ended
EL5# LHD —
67630-16580-B0 note Board Sub-assy, Rear Door Trim, RH
1994-09 → 1996-08 ended
EL5# —
67630-16580-E0 note Board Sub-assy, Rear Door Trim, RH
1994-09 → 1996-08 ended
EL5# —
67630-16650-B0 note Board Sub-assy, Rear Door Trim, RH
1996-08 → 1997-12 ended
EL5# —
67630-16650-E0 note Board Sub-assy, Rear Door Trim, RH
1996-08 → 1997-12 ended
EL5# —
67630-16651-B1 note Board Sub-assy, Rear Door Trim, RH
1997-12 → —
EL5# —
67630-16651-E1 note Board Sub-assy, Rear Door Trim, RH
1997-12 → —
EL5# —
67630-16660-B0 note Board Sub-assy, Rear Door Trim, RH
1996-08 → 1997-12 ended
EL5# —
67630-16660-E0 note Board Sub-assy, Rear Door Trim, RH
1996-08 → 1997-12 ended
EL5# —
67630-16661-B1 note Board Sub-assy, Rear Door Trim, RH
1997-12 → —
EL5# —
67630-16661-E1 note Board Sub-assy, Rear Door Trim, RH
1997-12 → —
EL5# —
67630-16670-B0 note Board Sub-assy, Rear Door Trim, RH
1996-08 → 1997-12 ended
EL5# LHD —
67630-16670-E0 note Board Sub-assy, Rear Door Trim, RH
1996-08 → 1997-12 ended
EL5# LHD —
67630-16671-B1 note Board Sub-assy, Rear Door Trim, RH
1997-12 → —
EL5# LHD —
67630-16671-E1 note Board Sub-assy, Rear Door Trim, RH
1997-12 → —
EL5# LHD —
67630-16680-B0 note Board Sub-assy, Rear Door Trim, RH
1996-08 → 1997-12 ended
EL5# LHD —
67630-16680-E0 note Board Sub-assy, Rear Door Trim, RH
1996-08 → 1997-12 ended
EL5# LHD —
67630-16681-B1 note Board Sub-assy, Rear Door Trim, RH
1997-12 → —
EL5# LHD —
67630-16681-E1 note Board Sub-assy, Rear Door Trim, RH
1997-12 → —
EL5# LHD —
67603D — Retainer, Rear Door Trim, RH
67771-12050 note Retainer, Rear Door Trim, RH
1996-08 → —
EL5# —
67771-16120 Retainer, Rear Door Trim, RH
1994-09 → 1996-08 ended
EL5# —
67771-16120 note Retainer, Rear Door Trim, RH
1996-08 → —
EL5# —
67604 — Board Sub-assy, Rear Door Trim, LH
67640-16540-B1 note Board Sub-assy, Rear Door Trim, LH
1994-09 → 1995-09 ended
EL5# LHD GEN —
67640-16540-B1 note Board Sub-assy, Rear Door Trim, LH
1995-09 → 1996-08 ended
EL5# LHD —
67640-16540-E1 note Board Sub-assy, Rear Door Trim, LH
1994-09 → 1995-09 ended
EL5# LHD GEN —
67640-16540-E1 note Board Sub-assy, Rear Door Trim, LH
1995-09 → 1996-08 ended
EL5# LHD —
67640-16550-B1 note Board Sub-assy, Rear Door Trim, LH
1994-09 → 1996-08 ended
EL5# —
67640-16550-E1 note Board Sub-assy, Rear Door Trim, LH
1994-09 → 1996-08 ended
EL5# —
67640-16560-B3 note Board Sub-assy, Rear Door Trim, LH
1994-09 → 1995-09 ended
EL5# LHD GEN —
67640-16560-B3 note Board Sub-assy, Rear Door Trim, LH
1995-09 → 1996-08 ended
EL5# LHD —
67640-16560-E2 note Board Sub-assy, Rear Door Trim, LH
1994-09 → 1995-09 ended
EL5# LHD GEN —
67640-16560-E2 note Board Sub-assy, Rear Door Trim, LH
1995-09 → 1996-08 ended
EL5# LHD —
67640-16590-B0 note Board Sub-assy, Rear Door Trim, LH
1994-09 → 1996-08 ended
EL5# —
67640-16590-E0 note Board Sub-assy, Rear Door Trim, LH
1994-09 → 1996-08 ended
EL5# —
67640-16660-B0 note Board Sub-assy, Rear Door Trim, LH
1996-08 → 1997-12 ended
EL5# —
67640-16660-E0 note Board Sub-assy, Rear Door Trim, LH
1996-08 → 1997-12 ended
EL5# —
67640-16661-B1 note Board Sub-assy, Rear Door Trim, LH
1997-12 → —
EL5# —
67640-16661-E1 note Board Sub-assy, Rear Door Trim, LH
1997-12 → —
EL5# —
67640-16670-B0 note Board Sub-assy, Rear Door Trim, LH
1996-08 → 1997-12 ended
EL5# —
67640-16670-E0 note Board Sub-assy, Rear Door Trim, LH
1996-08 → 1997-12 ended
EL5# —
67640-16671-B1 note Board Sub-assy, Rear Door Trim, LH
1997-12 → —
EL5# —
67640-16671-E1 note Board Sub-assy, Rear Door Trim, LH
1997-12 → —
EL5# —
67640-16680-B0 note Board Sub-assy, Rear Door Trim, LH
1996-08 → 1997-12 ended
EL5# LHD —
67640-16680-E0 note Board Sub-assy, Rear Door Trim, LH
1996-08 → 1997-12 ended
EL5# LHD —
67640-16681-B1 note Board Sub-assy, Rear Door Trim, LH
1997-12 → —
EL5# LHD —
67640-16681-E1 note Board Sub-assy, Rear Door Trim, LH
1997-12 → —
EL5# LHD —
67640-16690-B0 note Board Sub-assy, Rear Door Trim, LH
1996-08 → 1997-12 ended
EL5# LHD —
67640-16690-E0 note Board Sub-assy, Rear Door Trim, LH
1996-08 → 1997-12 ended
EL5# LHD —
67640-16691-B1 note Board Sub-assy, Rear Door Trim, LH
1997-12 → —
EL5# LHD —
67640-16691-E1 note Board Sub-assy, Rear Door Trim, LH
1997-12 → —
EL5# LHD —
67604D — Retainer, Rear Door Trim, LH
67771-12050 note Retainer, Rear Door Trim, LH
1996-08 → —
EL5# —
67771-16120 Retainer, Rear Door Trim, LH
1994-09 → 1996-08 ended
EL5# —
67771-16120 note Retainer, Rear Door Trim, LH
1996-08 → —
EL5# —
67785G — Holder, Rear Door Lock Control Knob, RH
69751-12050-B0 note Holder, Rear Door Lock Control Knob, RH
1996-08 → —
EL5# —
69751-12050-E0 note Holder, Rear Door Lock Control Knob, RH
1996-08 → —
EL5# —
67785H — Holder, Rear Door Lock Control Knob, LH
69751-12050-B0 note Holder, Rear Door Lock Control Knob, LH
1996-08 → 1997-12 ended
EL5# LHD —
69751-12050-B0 note Holder, Rear Door Lock Control Knob, LH
1997-12 → —
EL5# —
69751-12050-E0 note Holder, Rear Door Lock Control Knob, LH
1996-08 → 1997-12 ended
EL5# LHD —
69751-12050-E0 note Holder, Rear Door Lock Control Knob, LH
1997-12 → —
EL5# —
68190 — Weatherstrip Assy, Rear Door Glass, Inner
68173-16070 note Weatherstrip Assy, Rear Door Glass, Inner
1994-09 → 1996-08 ended
EL5# —
68173-16080 note Weatherstrip Assy, Rear Door Glass, Inner
1996-08 → 1997-12 ended
EL5# —
68173-16090 note Weatherstrip Assy, Rear Door Glass, Inner
1997-12 → —
EL5# —
68174-16070 note Weatherstrip Assy, Rear Door Glass, Inner
1994-09 → 1996-08 ended
EL5# —
68174-16080 note Weatherstrip Assy, Rear Door Glass, Inner
1996-08 → 1997-12 ended
EL5# —
68174-16090 note Weatherstrip Assy, Rear Door Glass, Inner
1997-12 → —
EL5# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
