Toyota Tercel

1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General

Discontinued model Data version 2000-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

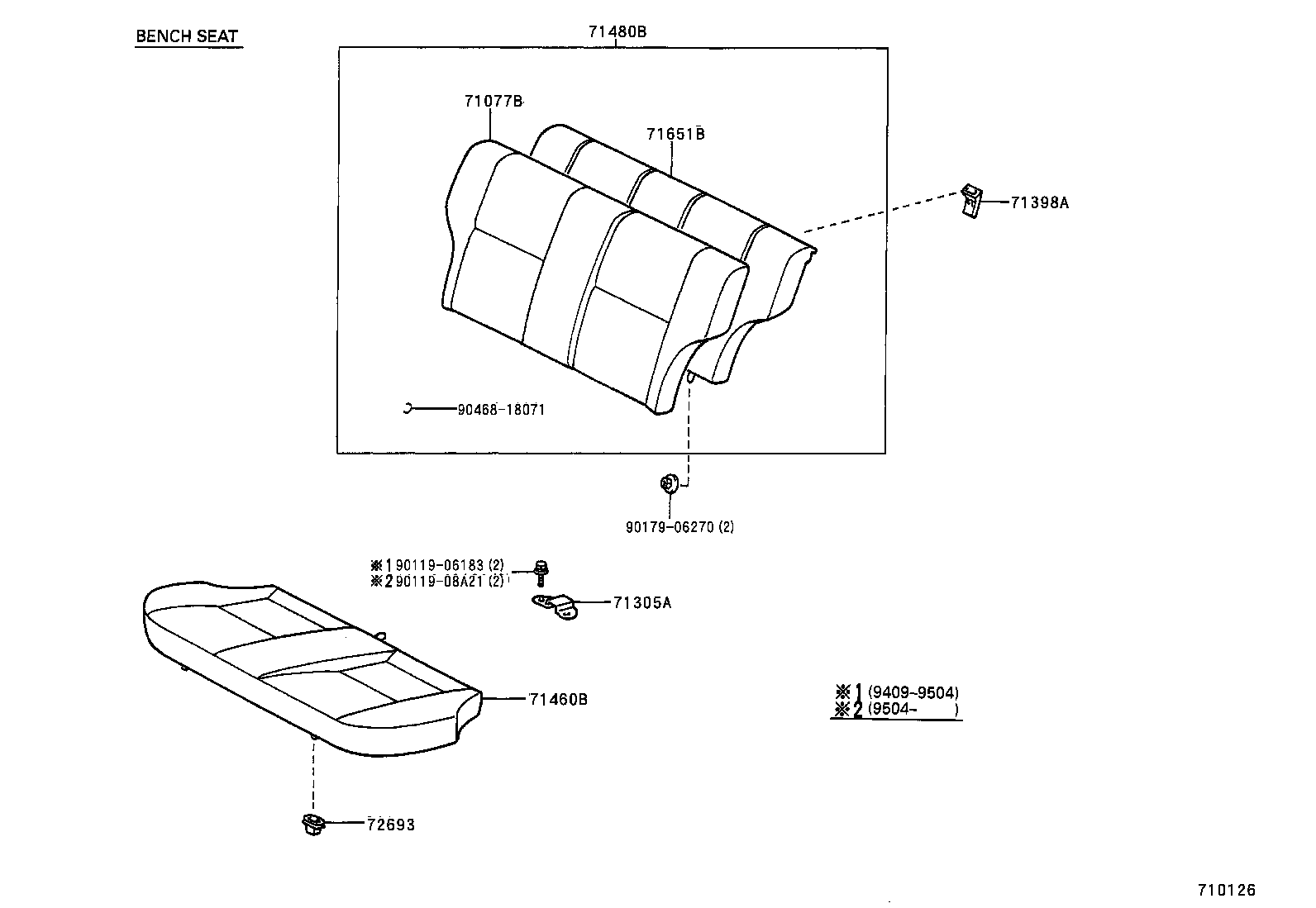

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

29 parts on this figure

Part number	Description	Fitment	Price
71077B — Cover, Rear Seatback (FOR BENCH TYPE)
71077-1G740-B0 note	Cover, Rear Seatback (FOR BENCH TYPE) 1994-09 → 1996-08 ended	EL5#	—
71077-1G740-E0 note	Cover, Rear Seatback (FOR BENCH TYPE) 1994-09 → 1996-08 ended	EL5#	—
71077-1S050-B0 note	Cover, Rear Seatback (FOR BENCH TYPE) 1996-08 → 1997-12 ended	EL5#	—
71077-1S050-E0 note	Cover, Rear Seatback (FOR BENCH TYPE) 1996-08 → 1997-12 ended	EL5#	—
71077-1S200-B0 note	Cover, Rear Seatback (FOR BENCH TYPE) 1997-12 → —	EL5#	—
71077-1S200-E0 note	Cover, Rear Seatback (FOR BENCH TYPE) 1997-12 → —	EL5#	—
71305A — Hinge Sub-assy, Rear Seatback, Center
71305-16070 note	Hinge Sub-assy, Rear Seatback, Center 1994-09 → 1995-04 ended	EL5# LHD GEN	—
71305-16080	Hinge Sub-assy, Rear Seatback, Center 1995-04 → —	EL5# LHD GEN	—
71343-16070	Hinge Sub-assy, Rear Seatback, Center 1994-09 → 1995-04 ended	EL5#	—
71398A — Holder, Rear Seatback
71398-32010	Holder, Rear Seatback 1994-09 → —	EL5#	—
71460B — Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460-1G240-B0 note	Cushion Assy, Rear Seat (FOR BENCH TYPE) 1996-08 → 1997-12 ended	EL5#	—
71460-1G240-B5 note	Cushion Assy, Rear Seat (FOR BENCH TYPE) 1997-12 → —	EL5#	—
71460-1G240-E0 note	Cushion Assy, Rear Seat (FOR BENCH TYPE) 1996-08 → 1997-12 ended	EL5#	—
71460-1G240-E5 note	Cushion Assy, Rear Seat (FOR BENCH TYPE) 1997-12 → —	EL5#	—
71560-16870-B0 note	Cushion Assy, Rear Seat (FOR BENCH TYPE) 1994-09 → 1996-08 ended	EL5#	—
71560-16870-E0 note	Cushion Assy, Rear Seat (FOR BENCH TYPE) 1994-09 → 1996-08 ended	EL5#	—
71480B — Back Assy, Rear Seat (FOR BENCH TYPE)
71480-1G860-B2 note	Back Assy, Rear Seat (FOR BENCH TYPE) 1994-09 → 1996-08 ended	EL50 GCC	—
71480-1G860-B2 note	Back Assy, Rear Seat (FOR BENCH TYPE) 1994-09 → 1996-08 ended	EL5# GEN	—
71480-1G860-E2 note	Back Assy, Rear Seat (FOR BENCH TYPE) 1994-09 → 1996-08 ended	EL50 GCC	—
71480-1G860-E2 note	Back Assy, Rear Seat (FOR BENCH TYPE) 1994-09 → 1996-08 ended	EL5# GEN	—
71480-1S130-B0 note	Back Assy, Rear Seat (FOR BENCH TYPE) 1996-08 → 1997-12 ended	EL5#	—
71480-1S130-E0 note	Back Assy, Rear Seat (FOR BENCH TYPE) 1996-08 → 1997-12 ended	EL5#	—
71480-1S250-B0 note	Back Assy, Rear Seat (FOR BENCH TYPE) 1997-12 → —	EL5# GEN	—
71480-1S250-E0 note	Back Assy, Rear Seat (FOR BENCH TYPE) 1997-12 → —	EL5# GEN	—
71480-1S270-B0 note	Back Assy, Rear Seat (FOR BENCH TYPE) 1997-12 → —	EL50 GCC	—
71480-1S270-E0 note	Back Assy, Rear Seat (FOR BENCH TYPE) 1997-12 → —	EL50 GCC	—
71651B — Pad, Rear Seatback(FOR BENCH TYPE)
71507-16060	Pad, Rear Seatback(FOR BENCH TYPE) 1994-09 → 1997-12 ended	EL5#	—
71507-16080	Pad, Rear Seatback(FOR BENCH TYPE) 1997-12 → —	EL5#	—
72693 — Hook, Rear Seat Cushion Lock
72693-20040	Hook, Rear Seat Cushion Lock 1994-09 → —	EL5#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
