Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

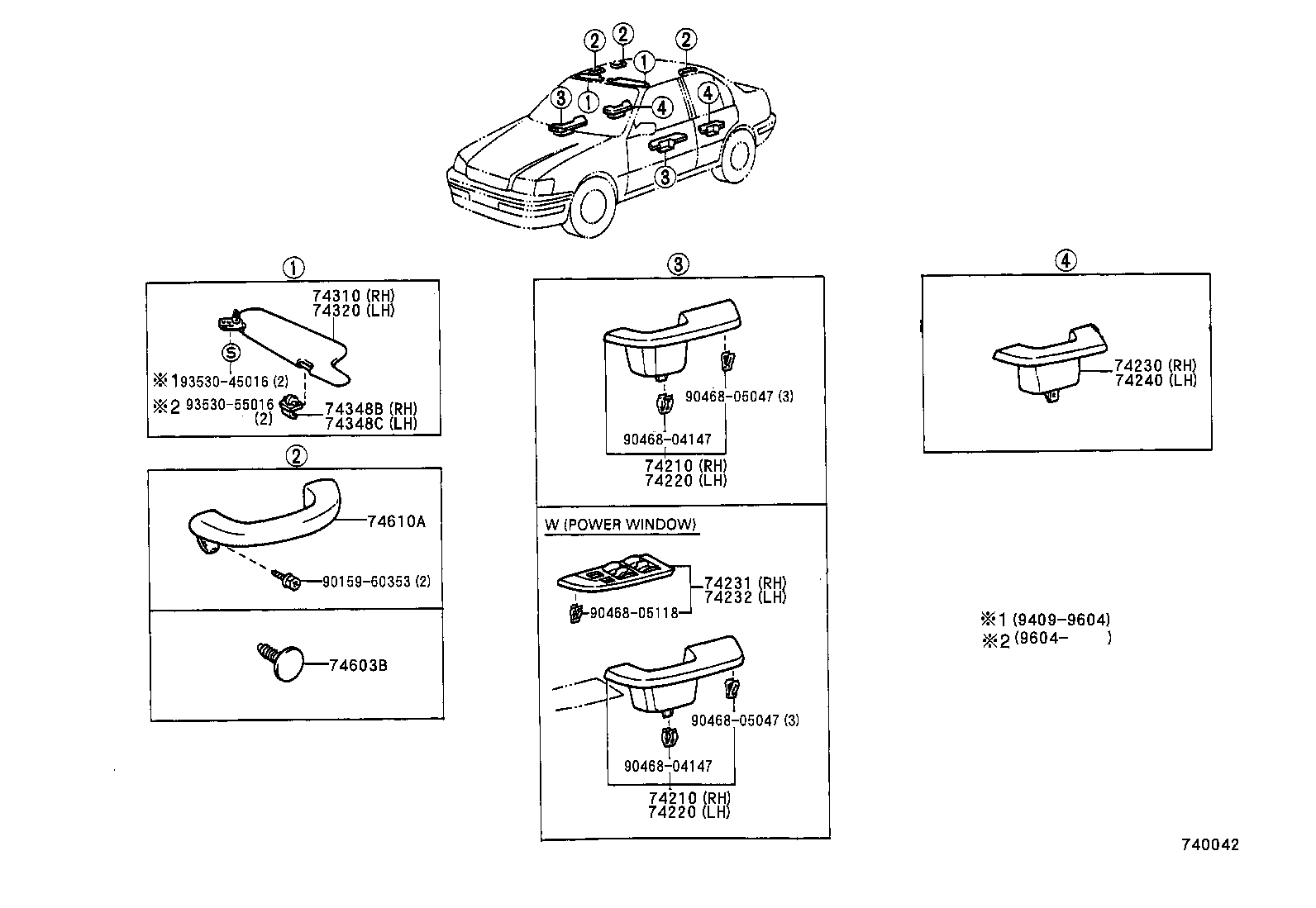

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74210 — Armrest Assy, Front, RH | ||||
| 74210-16110-E0 note |
Armrest Assy, Front, RH
1994-09 → 1995-01
ended
|
EL5# | — | |
| 74210-16111-B1 note |
Armrest Assy, Front, RH
1996-08 → —
|
EL5# | — | |
| 74210-16111-E0 note |
Armrest Assy, Front, RH
1995-01 → —
|
EL5# | — | |
| 74210-16120-B1 note |
Armrest Assy, Front, RH
1996-08 → —
|
EL5# LHD | — | |
| 74210-16120-E0 note |
Armrest Assy, Front, RH
1994-09 → 1995-09
ended
|
EL5# LHD GEN | — | |
| 74210-16120-E0 note |
Armrest Assy, Front, RH
1995-09 → —
|
EL5# LHD | — | |
| 74220 — Armrest Assy, Front, LH | ||||
| 74220-16090-E0 note |
Armrest Assy, Front, LH
1994-09 → 1995-01
ended
|
EL5# | — | |
| 74220-16091-B1 note |
Armrest Assy, Front, LH
1996-08 → —
|
EL5# | — | |
| 74220-16091-E0 note |
Armrest Assy, Front, LH
1995-01 → —
|
EL5# | — | |
| 74220-16100-B1 note |
Armrest Assy, Front, LH
1996-08 → —
|
EL5# LHD | — | |
| 74220-16100-E0 note |
Armrest Assy, Front, LH
1994-09 → 1995-09
ended
|
EL5# LHD GEN | — | |
| 74220-16100-E0 note |
Armrest Assy, Front, LH
1995-09 → —
|
EL5# LHD | — | |
| 74230 — Armrest Assy, Rear, RH | ||||
| 74250-16060-B1 note |
Armrest Assy, Rear, RH
1996-08 → —
|
EL5# | — | |
| 74250-16060-E0 note |
Armrest Assy, Rear, RH
1994-09 → —
|
EL5# | — | |
| 74231 — Panel, Front Armrest Base, Upper RH | ||||
| 74231-10032-B0 note |
Panel, Front Armrest Base, Upper RH
1997-12 → —
|
EL5# LHD | — | |
| 74231-10032-C0 note |
Panel, Front Armrest Base, Upper RH
1994-09 → 1995-09
ended
|
EL5# LHD GEN | — | |
| 74231-10032-C0 note |
Panel, Front Armrest Base, Upper RH
1995-09 → 1997-12
ended
|
EL5# LHD | — | |
| 74231-10032-E0 note |
Panel, Front Armrest Base, Upper RH
1997-12 → —
|
EL5# LHD | — | |
| 74232 — Panel, Front Armrest Base, Upper LH | ||||
| 74232-16020-B1 note |
Panel, Front Armrest Base, Upper LH
1997-12 → —
|
EL5# LHD | — | |
| 74232-16020-C0 note |
Panel, Front Armrest Base, Upper LH
1994-09 → 1995-09
ended
|
EL5# LHD GEN | — | |
| 74232-16020-C0 note |
Panel, Front Armrest Base, Upper LH
1995-09 → 1997-12
ended
|
EL5# LHD | — | |
| 74232-16020-E0 note |
Panel, Front Armrest Base, Upper LH
1997-12 → —
|
EL5# LHD | — | |
| 74240 — Armrest Assy, Rear, LH | ||||
| 74250-16060-B1 note |
Armrest Assy, Rear, LH
1996-08 → —
|
EL5# | — | |
| 74250-16060-E0 note |
Armrest Assy, Rear, LH
1994-09 → —
|
EL5# | — | |
| 74310 — Visor Assy, RH | ||||
| 74310-16610-B1 note |
Visor Assy, RH
1994-09 → —
|
EL5# LHD | — | |
| 74310-16610-E0 note |
Visor Assy, RH
1994-09 → —
|
EL5# LHD | — | |
| 74310-16620-B1 note |
Visor Assy, RH
1994-09 → —
|
EL50 RHD | — | |
| 74310-16620-E0 note |
Visor Assy, RH
1994-09 → —
|
EL50 RHD | — | |
| 74310-16820-B0 note |
Visor Assy, RH
1996-08 → 1997-08
ended
|
EL50 RHD | — | |
| 74310-16820-E0 note |
Visor Assy, RH
1996-08 → 1997-08
ended
|
EL50 RHD | — | |
| 74310-16821-B0 note |
Visor Assy, RH
1997-08 → —
|
EL50 RHD | — | |
| 74310-16821-E0 note |
Visor Assy, RH
1997-08 → —
|
EL50 RHD | — | |
| 74320 — Visor Assy, LH | ||||
| 74320-16410-B1 note |
Visor Assy, LH
1997-12 → —
|
EL5# LHD GEN | — | |
| 74320-16410-B1 note |
Visor Assy, LH
1994-09 → 1997-12
ended
|
EL5# LHD | — | |
| 74320-16410-E0 note |
Visor Assy, LH
1997-12 → —
|
EL5# LHD GEN | — | |
| 74320-16410-E0 note |
Visor Assy, LH
1994-09 → 1997-12
ended
|
EL5# LHD | — | |
| 74320-16430-B1 note |
Visor Assy, LH
1994-09 → —
|
EL50 RHD | — | |
| 74320-16430-E0 note |
Visor Assy, LH
1994-09 → —
|
EL50 RHD | — | |
| 74320-16670-B0 note |
Visor Assy, LH
1996-08 → 1997-08
ended
|
EL5# LHD GEN | — | |
| 74320-16670-E0 note |
Visor Assy, LH
1996-08 → 1997-08
ended
|
EL5# LHD GEN | — | |
| 74320-16671-B0 note |
Visor Assy, LH
1997-08 → —
|
EL5# LHD GEN | — | |
| 74320-16671-E0 note |
Visor Assy, LH
1997-08 → —
|
EL5# LHD GEN | — | |
| 74320-16680-B0 note |
Visor Assy, LH
1996-08 → 1997-08
ended
|
EL50 GCC | — | |
| 74320-16680-E0 note |
Visor Assy, LH
1996-08 → 1997-08
ended
|
EL50 GCC | — | |
| 74320-16681-B0 note |
Visor Assy, LH
1997-08 → —
|
EL50 GCC | — | |
| 74320-16681-E0 note |
Visor Assy, LH
1997-08 → —
|
EL50 GCC | — | |
| 74320-16690-B0 note |
Visor Assy, LH
1997-12 → —
|
EL50 GCC | — | |
| 74320-16690-E0 note |
Visor Assy, LH
1997-12 → —
|
EL50 GCC | — | |
| 74348B — Holder, Visor, RH | ||||
| 74348-16010-B0 note |
Holder, Visor, RH
1994-09 → —
|
EL5# | — | |
| 74348-16010-E0 note |
Holder, Visor, RH
1994-09 → —
|
EL5# | — | |
| 74348C — Holder, Visor, LH | ||||
| 74348-16010-B0 note |
Holder, Visor, LH
1994-09 → —
|
EL5# | — | |
| 74348-16010-E0 note |
Holder, Visor, LH
1994-09 → —
|
EL5# | — | |
| 74603B — Clip (FOR ASSIST GRIP) | ||||
| 90467-05021-B1 note |
Clip (FOR ASSIST GRIP)
1994-09 → —
|
EL5# | — | |
| 90467-05021-E1 note |
Clip (FOR ASSIST GRIP)
1994-09 → —
|
EL5# | — | |
| 74610A — Grip Sub-assy, Assist | ||||
| 74611-20030-B2 note |
Grip Sub-assy, Assist
1994-09 → —
|
EL5# | — | |
| 74611-20030-E1 note |
Grip Sub-assy, Assist
1994-09 → —
|
EL5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
