Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

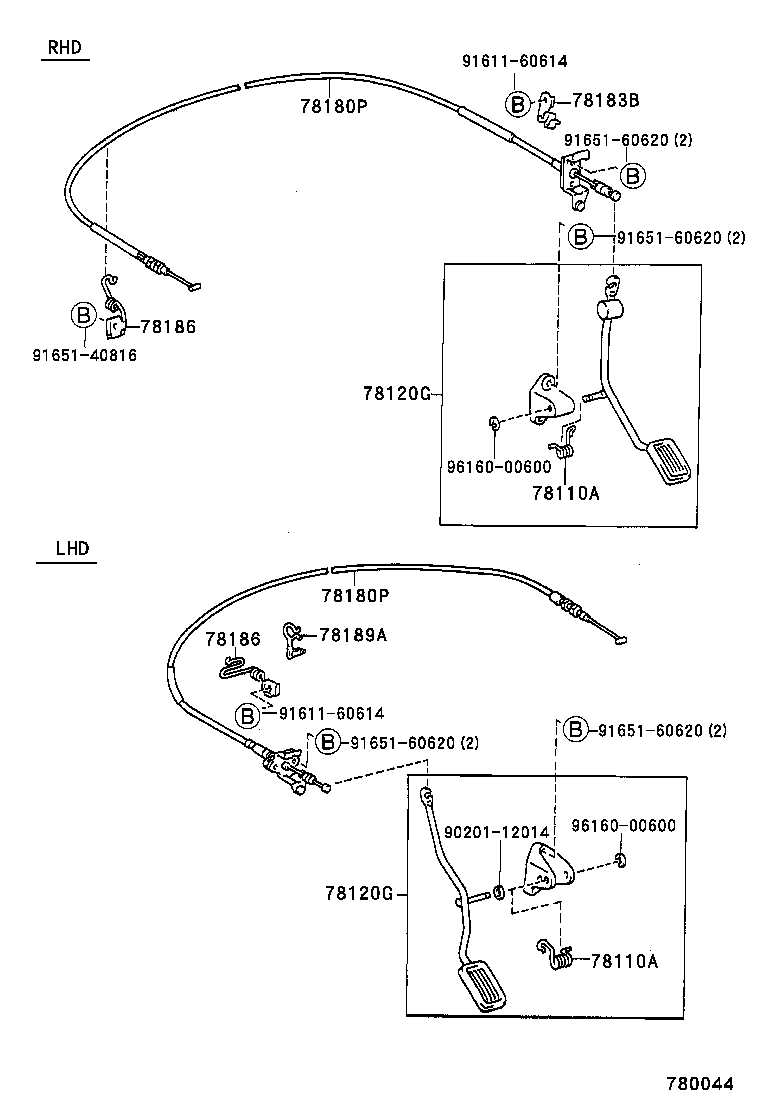

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78110A — Spring (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-17003 |
Spring (FOR ACCELERATOR PEDAL ROD)
1994-09 → —
|
EL5# LHD | — | |
| 90508-20114 |
Spring (FOR ACCELERATOR PEDAL ROD)
1994-09 → —
|
EL50 RHD 3FC | — | |
| 90959-03007 |
Spring (FOR ACCELERATOR PEDAL ROD)
1994-09 → —
|
EL50 RHD 5F | — | |
| 78120G — Rod Assy, Accelerator Pedal | ||||
| 78120-16100 |
Rod Assy, Accelerator Pedal
1994-09 → —
|
EL5# LHD | — | |
| 78120-16120 |
Rod Assy, Accelerator Pedal
1994-09 → —
|
EL50 RHD 3FC | — | |
| 78120-16130 |
Rod Assy, Accelerator Pedal
1994-09 → —
|
EL50 RHD 5F | — | |
| 78180P — Cable Assy, Accelerator Control | ||||
| 78180-10460 |
Cable Assy, Accelerator Control
1994-09 → —
|
EL50 RHD | — | |
| 78180-10470 |
Cable Assy, Accelerator Control
1994-09 → —
|
EL50 LHD | — | |
| 78180-16270 |
Cable Assy, Accelerator Control
1994-09 → 1995-09
ended
|
EL53 5F | — | |
| 78180-16300 |
Cable Assy, Accelerator Control
1994-09 → 1995-09
ended
|
EL53 4FC | — | |
| 78180-16440 |
Cable Assy, Accelerator Control
1995-09 → —
|
EL53 | — | |
| 78183B — Clamp, Accelerator Control Cable | ||||
| 78183-10080 |
Clamp, Accelerator Control Cable
1994-09 → —
|
EL50 RHD | — | |
| 78186 — Support, Accelerator Control Cable, NO.1 | ||||
| 78183-16050 |
Support, Accelerator Control Cable, NO.1
1994-09 → —
|
EL50 LHD | — | |
| 78186-16110 |
Support, Accelerator Control Cable, NO.1
1994-09 → 1995-09
ended
|
EL53 | — | |
| 78186-16160 |
Support, Accelerator Control Cable, NO.1
1994-09 → —
|
EL50 RHD | — | |
| 78186-16180 |
Support, Accelerator Control Cable, NO.1
1995-09 → —
|
EL53 | — | |
| 78189A — Support, Accelerator Control Cable, NO.2 | ||||
| 78186-10080 |
Support, Accelerator Control Cable, NO.2
1994-09 → —
|
EL50 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
