Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

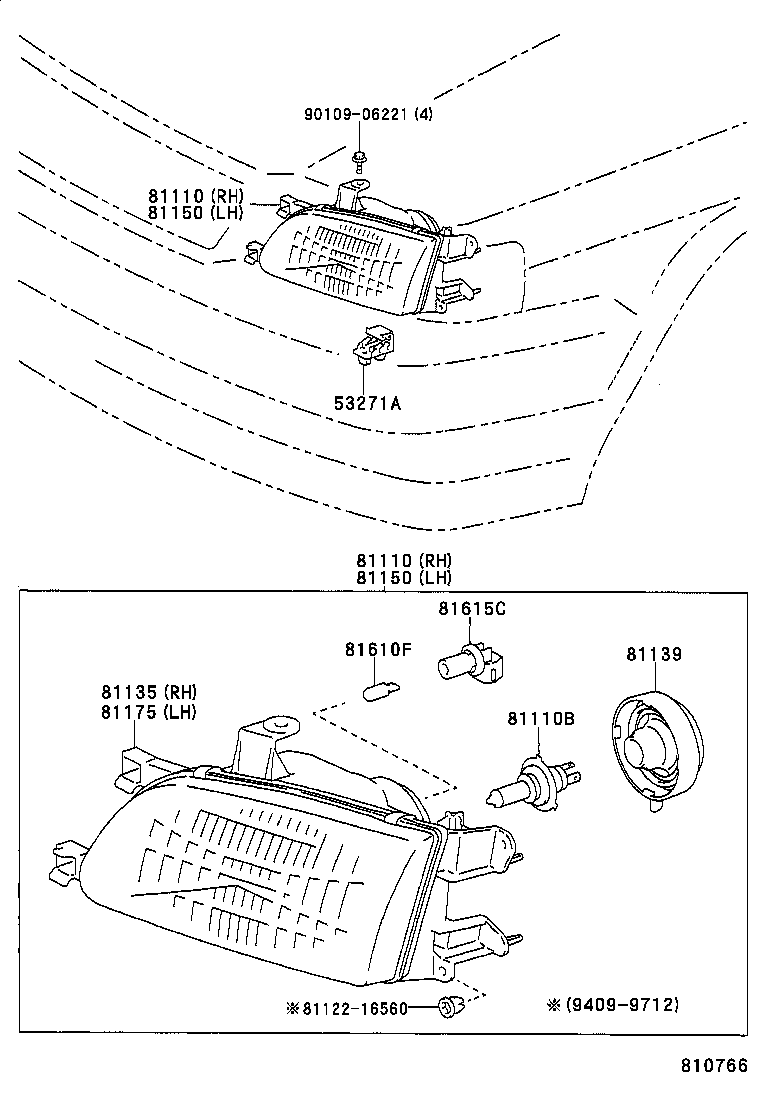

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53271A — Bracket, Headlamp Mounting | ||||
| 53271-12060 |
Bracket, Headlamp Mounting
1994-09 → —
|
EL5# | — | |
| 81110 — Headlamp Assy, RH | ||||
| 81110-16560 |
Headlamp Assy, RH
1994-09 → 1997-12
ended
|
EL50 RHD | — | |
| 81110-16560 note |
Headlamp Assy, RH
1994-09 → 1997-12
ended
|
EL50 LHD GEN | — | |
| 81110-16570 |
Headlamp Assy, RH
1994-09 → 1997-12
ended
|
EL5# LHD | — | |
| 81110-16590 note |
Headlamp Assy, RH
1994-09 → 1997-12
ended
|
EL50 LHD GEN | — | |
| 81110-16740 |
Headlamp Assy, RH
1997-12 → —
|
EL50 RHD | — | |
| 81110-16740 note |
Headlamp Assy, RH
1997-12 → —
|
EL50 LHD GEN | — | |
| 81110-16750 |
Headlamp Assy, RH
1997-12 → —
|
EL5# LHD | — | |
| 81110B — Bulb(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 note |
Bulb(FOR HEADLAMP, NO.1)
1994-09 → 1997-12
ended
|
EL5# | — | |
| 90981-13016 note |
Bulb(FOR HEADLAMP, NO.1)
1994-09 → 1997-12
ended
|
EL50 LHD GEN | — | |
| 90981-22002 note |
Bulb(FOR HEADLAMP, NO.1)
1997-12 → —
|
EL5# | — | |
| 81135 — Unit Assy, Headlamp, RH | ||||
| 81130-16560 |
Unit Assy, Headlamp, RH
1994-09 → 1997-12
ended
|
EL50 RHD | — | |
| 81130-16560 note |
Unit Assy, Headlamp, RH
1994-09 → 1997-12
ended
|
EL50 LHD GEN | — | |
| 81130-16570 |
Unit Assy, Headlamp, RH
1994-09 → 1997-12
ended
|
EL5# LHD | — | |
| 81130-16740 |
Unit Assy, Headlamp, RH
1997-12 → —
|
EL50 RHD | — | |
| 81130-16740 note |
Unit Assy, Headlamp, RH
1997-12 → —
|
EL50 LHD GEN | — | |
| 81130-16750 |
Unit Assy, Headlamp, RH
1997-12 → —
|
EL5# LHD | — | |
| 81139 — Cover, Headlamp Socket | ||||
| 81139-16560 |
Cover, Headlamp Socket
1994-09 → 1997-12
ended
|
EL5# | — | |
| 81139-1E340 |
Cover, Headlamp Socket
1997-12 → —
|
EL5# | — | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-16560 |
Headlamp Assy, LH
1994-09 → 1997-12
ended
|
EL50 RHD | — | |
| 81150-16560 note |
Headlamp Assy, LH
1994-09 → 1997-12
ended
|
EL50 LHD GEN | — | |
| 81150-16570 |
Headlamp Assy, LH
1994-09 → 1997-12
ended
|
EL5# LHD | — | |
| 81150-16590 note |
Headlamp Assy, LH
1994-09 → 1997-12
ended
|
EL50 LHD GEN | — | |
| 81150-16740 |
Headlamp Assy, LH
1997-12 → —
|
EL50 RHD | — | |
| 81150-16740 note |
Headlamp Assy, LH
1997-12 → —
|
EL50 LHD GEN | — | |
| 81150-16750 |
Headlamp Assy, LH
1997-12 → —
|
EL5# LHD | — | |
| 81175 — Unit Assy, Headlamp, LH | ||||
| 81170-16560 |
Unit Assy, Headlamp, LH
1994-09 → 1997-12
ended
|
EL50 RHD | — | |
| 81170-16560 note |
Unit Assy, Headlamp, LH
1994-09 → 1997-12
ended
|
EL50 LHD GEN | — | |
| 81170-16570 |
Unit Assy, Headlamp, LH
1994-09 → 1997-12
ended
|
EL5# LHD | — | |
| 81170-16740 |
Unit Assy, Headlamp, LH
1997-12 → —
|
EL50 RHD | — | |
| 81170-16740 note |
Unit Assy, Headlamp, LH
1997-12 → —
|
EL50 LHD GEN | — | |
| 81170-16750 |
Unit Assy, Headlamp, LH
1997-12 → —
|
EL5# LHD | — | |
| 81610F — Bulb(FOR CLEARANCE LAMP) | ||||
| 99132-12050 note |
Bulb(FOR CLEARANCE LAMP)
1994-09 → —
|
EL5# | — | |
| 81615C — Socket & Wire, Clearance Lamp | ||||
| 81138-22680 |
Socket & Wire, Clearance Lamp
1997-12 → —
|
EL5# | — | |
| 90075-99044 |
Socket & Wire, Clearance Lamp
1994-09 → 1997-12
ended
|
EL5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
