Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

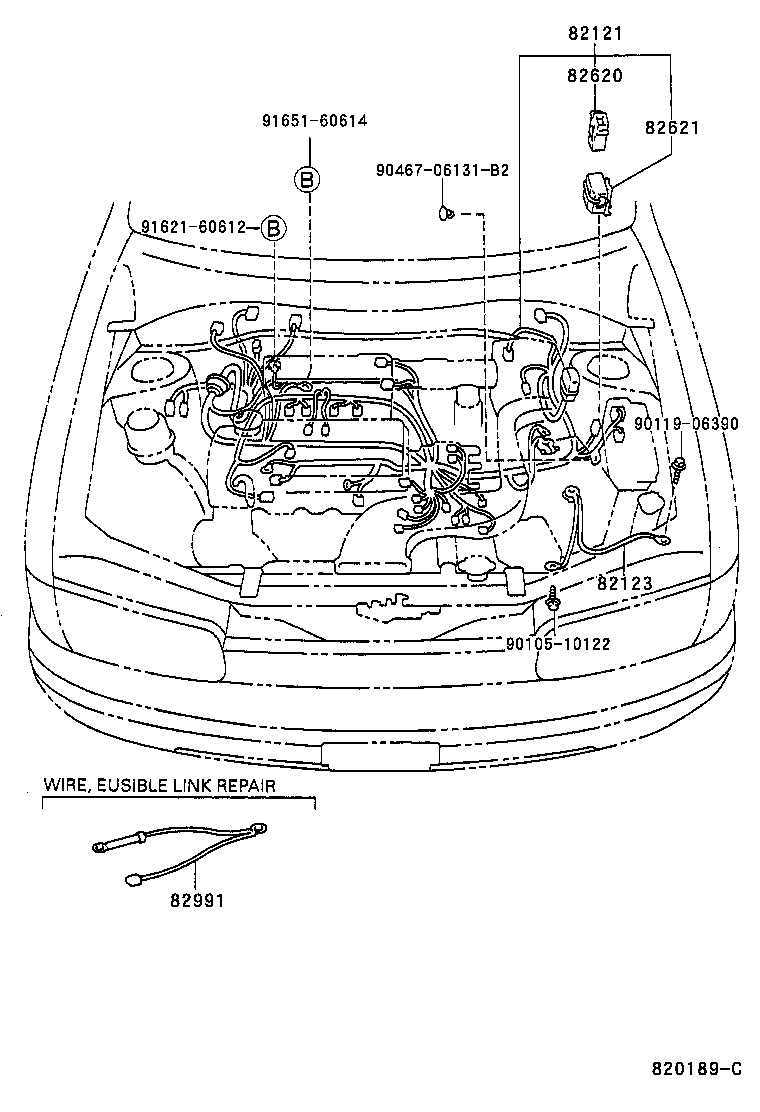

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-1G130 |
Wire, Engine
1994-09 → 1997-12
ended
|
EL50 RHD 5F | — | |
| 82121-1G131 |
Wire, Engine
1997-12 → —
|
EL50 RHD 5F | — | |
| 82121-1G140 |
Wire, Engine
1994-09 → 1997-12
ended
|
EL50 RHD 3FC | — | |
| 82121-1G141 |
Wire, Engine
1997-12 → —
|
EL50 RHD 3FC | — | |
| 82121-1G150 |
Wire, Engine
1995-08 → 1996-08
ended
|
EL50 LHD 5F GEN | — | |
| 82121-1G150 |
Wire, Engine
1994-09 → 1995-08
ended
|
EL50 LHD 5F | — | |
| 82121-1G151 |
Wire, Engine
1996-08 → 1997-12
ended
|
EL50 LHD 5F GEN | — | |
| 82121-1G152 |
Wire, Engine
1997-12 → —
|
EL50 LHD 5F GEN | — | |
| 82121-1G160 |
Wire, Engine
1994-09 → 1996-08
ended
|
EL50 LHD 3FC | — | |
| 82121-1G161 |
Wire, Engine
1996-08 → 1997-12
ended
|
EL50 LHD 3FC | — | |
| 82121-1G162 |
Wire, Engine
1997-12 → —
|
EL50 LHD 3FC | — | |
| 82121-1G170 |
Wire, Engine
1994-09 → 1995-08
ended
|
EL53 5F | — | |
| 82121-1G180 |
Wire, Engine
1994-09 → 1995-08
ended
|
EL53 4FC | — | |
| 82121-1G370 |
Wire, Engine
1995-08 → 1996-08
ended
|
EL53 5F | — | |
| 82121-1G371 |
Wire, Engine
1996-08 → 1997-05
ended
|
EL53 5F | — | |
| 82121-1G372 |
Wire, Engine
1997-05 → 1997-12
ended
|
EL53 5F | — | |
| 82121-1G373 |
Wire, Engine
1997-12 → —
|
EL53 5F | — | |
| 82121-1G440 |
Wire, Engine
1995-08 → 1996-08
ended
|
EL53 4FC | — | |
| 82121-1G441 |
Wire, Engine
1996-08 → 1997-05
ended
|
EL53 4FC | — | |
| 82121-1G442 |
Wire, Engine
1997-05 → 1997-12
ended
|
EL53 4FC | — | |
| 82121-1G443 |
Wire, Engine
1997-12 → —
|
EL53 4FC | — | |
| 82121-1G450 |
Wire, Engine
1995-08 → 1996-08
ended
|
EL50 5F GCC | — | |
| 82121-1G451 |
Wire, Engine
1997-05 → 1997-12
ended
|
EL50 5F GCC | — | |
| 82121-1G451 note |
Wire, Engine
1997-05 → 1997-12
ended
|
EL50 LHD 5F GEN | — | |
| 82121-1G451 |
Wire, Engine
1996-08 → 1997-05
ended
|
EL50 5F GCC | — | |
| 82121-1G452 note |
Wire, Engine
1997-12 → —
|
EL50 5F GCC | — | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-16110 |
Wire, Engine, NO.3
1994-09 → —
|
EL50 3FC | — | |
| 82123-16120 |
Wire, Engine, NO.3
1994-09 → —
|
EL5# 4FC,5F | — | |
| 82123-16130 note |
Wire, Engine, NO.3
1994-09 → —
|
EL5# 4FC,5F | — | |
| 82123-16140 note |
Wire, Engine, NO.3
1994-09 → —
|
EL50 3FC | — | |
| 82620 — Block Assy, Fusible Link | ||||
| 82620-16080 |
Block Assy, Fusible Link
1994-09 → —
|
EL5# | — | |
| 82621 — Cover, Fusible Link | ||||
| 82621-16010 |
Cover, Fusible Link
1994-09 → —
|
EL5# | — | |
| 82991 — Wire, Fusible Link Repair | ||||
| 82991-16040 |
Wire, Fusible Link Repair
1994-09 → —
|
EL50 RHD | — | |
| 82991-16050 |
Wire, Fusible Link Repair
1994-09 → —
|
EL53;EL50 GCC | — | |
| 82991-16060 |
Wire, Fusible Link Repair
1994-09 → —
|
EL50 LHD GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
