Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

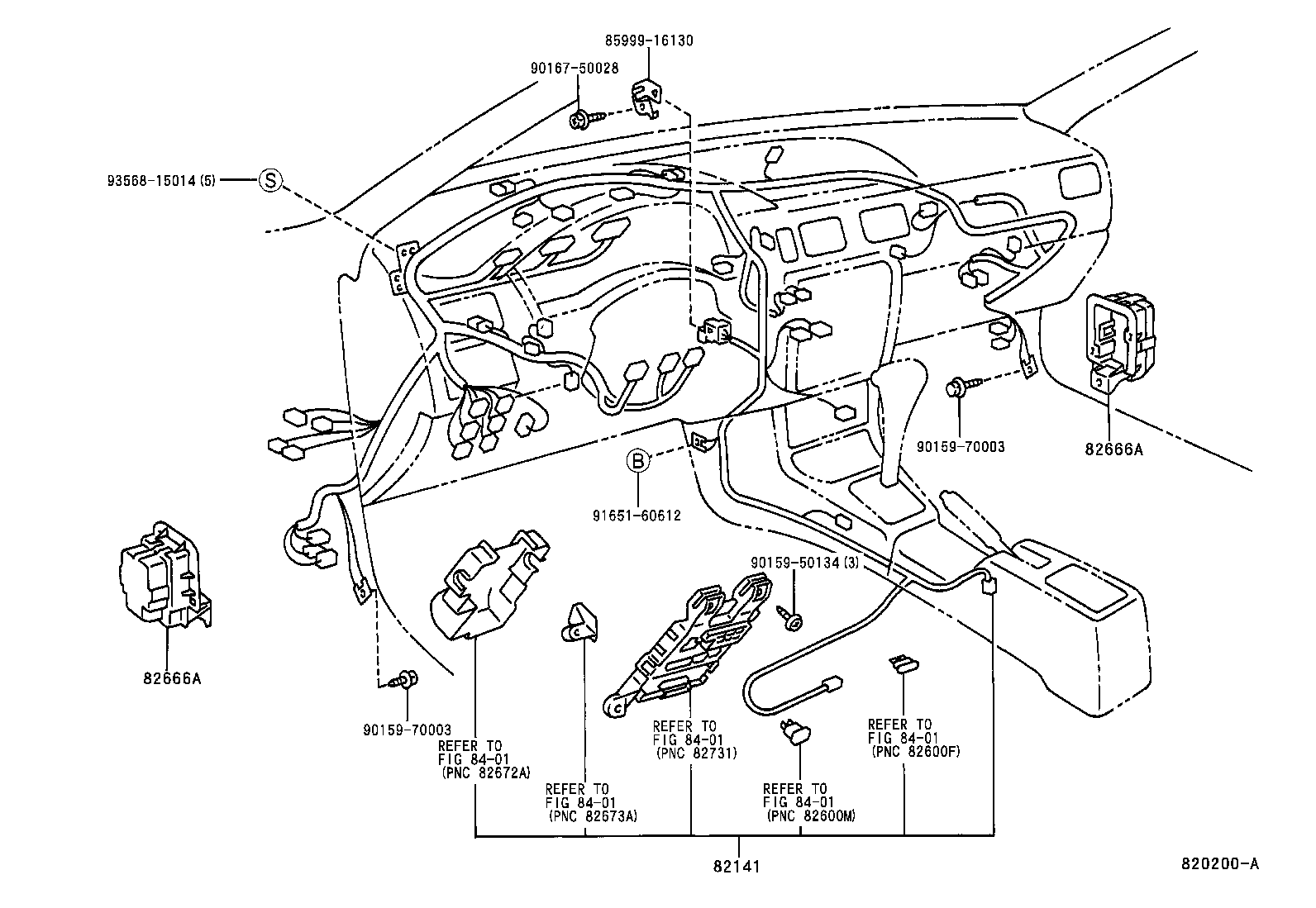

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-16090 |
Wire, Instrument Panel
1994-09 → 1996-08
ended
|
EL50 RHD | — | |
| 82141-16091 |
Wire, Instrument Panel
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 82141-16092 |
Wire, Instrument Panel
1997-12 → —
|
EL50 RHD | — | |
| 82141-16100 |
Wire, Instrument Panel
1994-09 → 1996-08
ended
|
EL50 LHD | — | |
| 82141-16101 |
Wire, Instrument Panel
1996-08 → 1997-12
ended
|
EL50 LHD | — | |
| 82141-16102 |
Wire, Instrument Panel
1997-12 → —
|
EL50 LHD GEN | — | |
| 82141-16110 |
Wire, Instrument Panel
1994-09 → 1995-08
ended
|
EL53 5F | — | |
| 82141-16120 |
Wire, Instrument Panel
1994-09 → 1995-08
ended
|
EL53 4FC | — | |
| 82141-16130 note |
Wire, Instrument Panel
1994-09 → 1995-08
ended
|
EL53 4FC | — | |
| 82141-16250 note |
Wire, Instrument Panel
1994-09 → 1995-08
ended
|
EL50 LHD GEN | — | |
| 82141-16251 note |
Wire, Instrument Panel
1995-08 → 1996-08
ended
|
EL50 LHD | — | |
| 82141-16252 note |
Wire, Instrument Panel
1996-08 → 1997-12
ended
|
EL50 LHD | — | |
| 82141-16253 note |
Wire, Instrument Panel
1997-12 → —
|
EL50 LHD GEN | — | |
| 82141-16280 note |
Wire, Instrument Panel
1994-09 → 1995-08
ended
|
EL53 5F | — | |
| 82141-16630 |
Wire, Instrument Panel
1995-08 → 1996-08
ended
|
EL53 | — | |
| 82141-16631 |
Wire, Instrument Panel
1996-08 → 1997-12
ended
|
EL53 | — | |
| 82141-16632 |
Wire, Instrument Panel
1997-12 → —
|
EL53 | — | |
| 82141-16640 note |
Wire, Instrument Panel
1995-08 → 1996-08
ended
|
EL53 | — | |
| 82141-16641 note |
Wire, Instrument Panel
1996-08 → 1997-12
ended
|
EL53 | — | |
| 82141-16642 note |
Wire, Instrument Panel
1997-12 → —
|
EL53 | — | |
| 82141-1G040 note |
Wire, Instrument Panel
1997-12 → —
|
EL50 RHD | — | |
| 82141-1G050 note |
Wire, Instrument Panel
1997-12 → —
|
EL53 | — | |
| 82141-1G060 note |
Wire, Instrument Panel
1997-12 → —
|
EL53 | — | |
| 82141-1G070 note |
Wire, Instrument Panel
1997-12 → —
|
EL50 LHD | — | |
| 82141-1G080 note |
Wire, Instrument Panel
1997-12 → —
|
EL50 GCC | — | |
| 82141-1G090 note |
Wire, Instrument Panel
1997-12 → —
|
EL50 GCC | — | |
| 82141-1G090 note |
Wire, Instrument Panel
1997-12 → —
|
EL50 LHD GEN | — | |
| 82141-1G100 note |
Wire, Instrument Panel
1997-12 → —
|
EL50 GCC | — | |
| 82666A — Holder, Connector NO.2 | ||||
| 82666-16020 |
Holder, Connector NO.2
1994-09 → —
|
EL5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
