Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

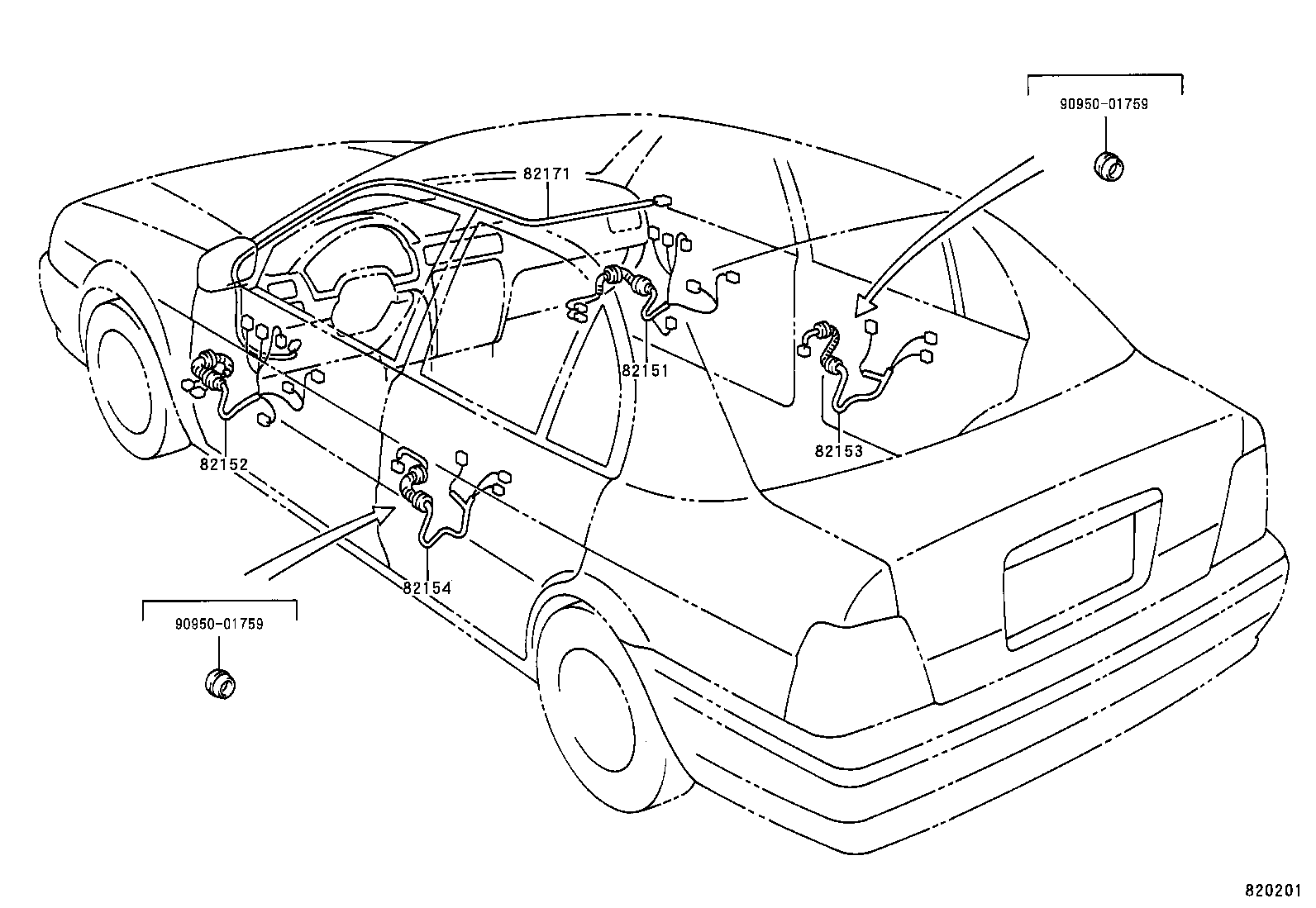

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82151 — Wire, Front Door, RH | ||||
| 82151-16420 |
Wire, Front Door, RH
1994-09 → —
|
EL5# | — | |
| 82151-16480 note |
Wire, Front Door, RH
1994-09 → 1995-08
ended
|
EL5# LHD GEN | — | |
| 82151-16480 note |
Wire, Front Door, RH
1995-08 → 1997-12
ended
|
EL5# LHD | — | |
| 82151-16481 note |
Wire, Front Door, RH
1997-12 → —
|
EL5# LHD | — | |
| 82152 — Wire, Front Door, LH | ||||
| 82152-16330 |
Wire, Front Door, LH
1994-09 → —
|
EL5# | — | |
| 82152-16410 note |
Wire, Front Door, LH
1994-09 → 1995-08
ended
|
EL5# LHD GEN | — | |
| 82152-16410 note |
Wire, Front Door, LH
1995-08 → 1997-12
ended
|
EL5# LHD | — | |
| 82152-16411 note |
Wire, Front Door, LH
1997-12 → —
|
EL5# LHD | — | |
| 82153 — Wire, Rear Door, NO.1 | ||||
| 82153-16100 |
Wire, Rear Door, NO.1
1994-09 → 1995-08
ended
|
EL5# LHD GEN | — | |
| 82153-16100 |
Wire, Rear Door, NO.1
1995-08 → —
|
EL5# LHD | — | |
| 82154 — Wire, Rear Door, NO.2 | ||||
| 82154-16100 |
Wire, Rear Door, NO.2
1994-09 → 1995-08
ended
|
EL5# LHD GEN | — | |
| 82154-16100 |
Wire, Rear Door, NO.2
1995-08 → —
|
EL5# LHD | — | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-16280 |
Wire, Roof, NO.1
1994-09 → 1997-12
ended
|
EL50 RHD | — | |
| 82171-16281 |
Wire, Roof, NO.1
1997-12 → —
|
EL50 RHD | — | |
| 82171-16300 |
Wire, Roof, NO.1
1994-09 → 1997-12
ended
|
EL5# LHD | — | |
| 82171-16301 |
Wire, Roof, NO.1
1997-12 → —
|
EL5# LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
