Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

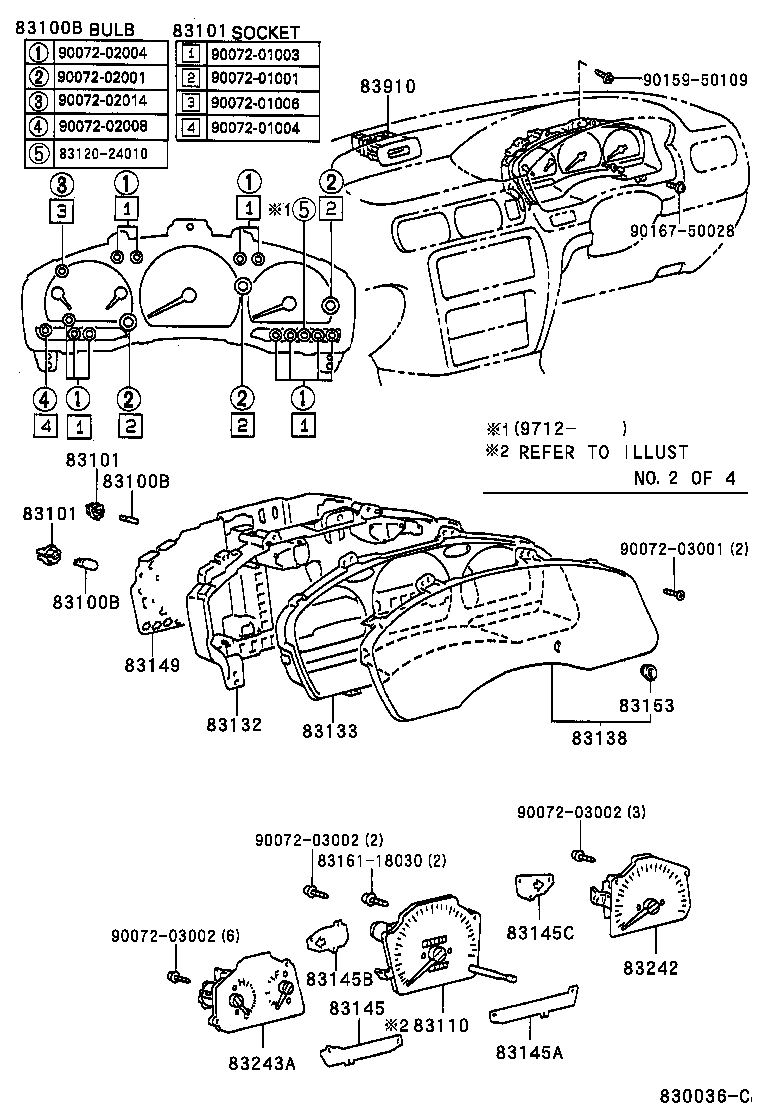

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100B — Bulb, Combination Meter, NO.1 | ||||
| 83109-24020 note |
Bulb, Combination Meter, NO.1
1994-09 → 1996-08
ended
|
EL5# | — | |
| 83109-24020 note |
Bulb, Combination Meter, NO.1
1997-12 → —
|
EL5# | — | |
| 83109-24020 note |
Bulb, Combination Meter, NO.1
1996-08 → 1997-12
ended
|
EL5# GEN | — | |
| 83109-30070 note |
Bulb, Combination Meter, NO.1
1994-09 → 1997-12
ended
|
EL50 GCC | — | |
| 83109-30070 note |
Bulb, Combination Meter, NO.1
1997-12 → —
|
EL5# | — | |
| 83119-32010 note |
Bulb, Combination Meter, NO.1
1994-09 → —
|
EL5# | — | |
| 83120-24010 note |
Bulb, Combination Meter, NO.1
1997-12 → —
|
EL50 GCC | — | |
| 90072-02001 note |
Bulb, Combination Meter, NO.1
1994-09 → —
|
EL5# GEN | — | |
| 90072-02004 note |
Bulb, Combination Meter, NO.1
1994-09 → 1997-12
ended
|
EL5# GEN | — | |
| 90072-02004 note |
Bulb, Combination Meter, NO.1
1997-12 → —
|
EL5# GEN | — | |
| 90072-02008 note |
Bulb, Combination Meter, NO.1
1994-09 → —
|
EL5# GEN | — | |
| 90072-02014 note |
Bulb, Combination Meter, NO.1
1994-09 → —
|
EL5# GEN | — | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1994-09 → —
|
EL5# GEN | — | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1995-08 → —
|
EL50 LHD 5F GEN | — | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1994-09 → 1997-12
ended
|
EL50 GCC | — | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1997-12 → —
|
EL50 GCC | — | |
| 83101 — Socket Sub-assy, Combination Meter Bulb | ||||
| 83101-14030 note |
Socket Sub-assy, Combination Meter Bulb
1994-09 → —
|
EL5# | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1997-12 → —
|
EL5# GEN | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1997-12 → —
|
EL50 GCC | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1997-12 → —
|
EL50 LHD 5F GEN | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1996-08 → 1997-12
ended
|
EL50 LHD 5F GEN | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1994-09 → 1997-12
ended
|
EL5# GEN | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1994-09 → 1997-12
ended
|
EL50 GCC | — | |
| 83101-32020 note |
Socket Sub-assy, Combination Meter Bulb
1994-09 → —
|
EL5# | — | |
| 90072-01001 note |
Socket Sub-assy, Combination Meter Bulb
1994-09 → —
|
EL5# GEN | — | |
| 90072-01003 note |
Socket Sub-assy, Combination Meter Bulb
1994-09 → 1997-12
ended
|
EL5# GEN | — | |
| 90072-01003 note |
Socket Sub-assy, Combination Meter Bulb
1997-12 → —
|
EL5# GEN | — | |
| 90072-01004 note |
Socket Sub-assy, Combination Meter Bulb
1994-09 → —
|
EL5# GEN | — | |
| 90072-01006 note |
Socket Sub-assy, Combination Meter Bulb
1994-09 → —
|
EL5# GEN | — | |
| 83110 — Speedometer Assy | ||||
| 83110-1G430 note |
Speedometer Assy
1994-09 → 1995-08
ended
|
EL50 GCC | — | |
| 83110-1G431 note |
Speedometer Assy
1995-08 → 1997-06
ended
|
EL50 GCC | — | |
| 83110-1G432 note |
Speedometer Assy
1997-06 → 1997-12
ended
|
EL50 GCC | — | |
| 83110-1G440 note |
Speedometer Assy
1994-09 → 1995-08
ended
|
EL5# GEN | — | |
| 83110-1G441 note |
Speedometer Assy
1995-08 → 1997-06
ended
|
EL5# GEN | — | |
| 83110-1G450 note |
Speedometer Assy
1994-09 → 1995-08
ended
|
EL5# GEN | — | |
| 83110-1G451 note |
Speedometer Assy
1995-08 → 1997-06
ended
|
EL5# GEN | — | |
| 83110-1G452 note |
Speedometer Assy
1997-06 → 1997-12
ended
|
EL5# GEN | — | |
| 83110-1G480 note |
Speedometer Assy
1994-09 → 1997-12
ended
|
EL5# GEN | — | |
| 83110-1G490 note |
Speedometer Assy
1994-09 → 1997-12
ended
|
EL5# GEN | — | |
| 83220-16110 note |
Speedometer Assy
1997-12 → —
|
EL50 GCC | — | |
| 83220-16120 note |
Speedometer Assy
1997-12 → —
|
EL5# GEN | — | |
| 83220-16130 note |
Speedometer Assy
1997-12 → —
|
EL5# GEN | — | |
| 83220-16160 note |
Speedometer Assy
1997-12 → —
|
EL5# GEN | — | |
| 83220-16170 note |
Speedometer Assy
1997-12 → —
|
EL5# GEN | — | |
| 83132 — Case, Combination Meter | ||||
| 83132-1G020 note |
Case, Combination Meter
1994-09 → —
|
EL5# GEN | — | |
| 83132-1S130 note |
Case, Combination Meter
1995-08 → 1997-12
ended
|
EL50 LHD 5F GEN | — | |
| 83132-1S130 |
Case, Combination Meter
1994-09 → 1997-12
ended
|
EL50 GCC | — | |
| 83132-1S210 |
Case, Combination Meter
1994-09 → 1997-12
ended
|
EL5# GEN | — | |
| 83841-16250 |
Case, Combination Meter
1997-12 → —
|
EL5# | — | |
| 83133 — Plate, Combination Meter, NO.1 | ||||
| 83133-1G020 note |
Plate, Combination Meter, NO.1
1994-09 → —
|
EL5# GEN | — | |
| 83133-1G310 |
Plate, Combination Meter, NO.1
1994-09 → 1996-08
ended
|
EL5# | — | |
| 83133-1G310 |
Plate, Combination Meter, NO.1
1997-12 → —
|
EL5# | — | |
| 83811-10120 |
Plate, Combination Meter, NO.1
1996-08 → 1997-12
ended
|
EL5# | — | |
| 83138 — Glass, Speedometer | ||||
| 83138-16630 |
Glass, Speedometer
1994-09 → —
|
EL5# | — | |
| 83138-1G020 note |
Glass, Speedometer
1994-09 → —
|
EL5# GEN | — | |
| 83145 — Lens, Meter, NO.1 | ||||
| 83145-1G100 |
Lens, Meter, NO.1
1994-09 → 1997-12
ended
|
EL5# GEN | — | |
| 83145-1G100 |
Lens, Meter, NO.1
1997-12 → —
|
EL53 | — | |
| 83145A — Lens, Meter, NO.2 | ||||
| 83145-1G200 |
Lens, Meter, NO.2
1994-09 → 1997-12
ended
|
EL5# GEN | — | |
| 83145B — Lens, Meter, NO.3 | ||||
| 83145-1G220 |
Lens, Meter, NO.3
1994-09 → —
|
EL5# GEN | — | |
| 83145C — Lens, Meter, NO.4 | ||||
| 83145-1G240 |
Lens, Meter, NO.4
1994-09 → —
|
EL5# GEN | — | |
| 83149 — Plate, Meter Circuit | ||||
| 83149-1G140 note |
Plate, Meter Circuit
1994-09 → 1997-12
ended
|
EL5# GEN | — | |
| 83149-1G510 |
Plate, Meter Circuit
1994-09 → 1997-12
ended
|
EL5# | — | |
| 83861-16160 |
Plate, Meter Circuit
1997-12 → —
|
EL5# | — | |
| 83861-16360 note |
Plate, Meter Circuit
1997-12 → —
|
EL5# GEN | — | |
| 83153 — Grommet, Meter Glass | ||||
| 83153-1G020 |
Grommet, Meter Glass
1994-09 → —
|
EL5# GEN | — | |
| 83242 — Tachometer Assy, Engine | ||||
| 83242-1G080 |
Tachometer Assy, Engine
1995-08 → 1997-12
ended
|
EL53 | — | |
| 83242-1G100 |
Tachometer Assy, Engine
1994-09 → 1995-08
ended
|
EL5# GEN | — | |
| 83242-1G100 |
Tachometer Assy, Engine
1995-08 → 1997-12
ended
|
EL50 GEN | — | |
| 83881-16350 |
Tachometer Assy, Engine
1997-12 → —
|
EL53 | — | |
| 83881-16360 |
Tachometer Assy, Engine
1997-12 → —
|
EL50 GEN | — | |
| 83243A — Gauge Sub-assy, Fuel Receiver | ||||
| 83243-1G020 note |
Gauge Sub-assy, Fuel Receiver
1994-09 → 1997-12
ended
|
EL5# GEN | — | |
| 83243-1G150 |
Gauge Sub-assy, Fuel Receiver
1994-09 → 1995-08
ended
|
EL5# | — | |
| 83243-1G151 |
Gauge Sub-assy, Fuel Receiver
1995-08 → 1997-12
ended
|
EL5# | — | |
| 83882-16160 |
Gauge Sub-assy, Fuel Receiver
1997-12 → —
|
EL50 GCC | — | |
| 83882-16160 |
Gauge Sub-assy, Fuel Receiver
1997-12 → —
|
EL5# GEN | — | |
| 83882-16350 note |
Gauge Sub-assy, Fuel Receiver
1997-12 → —
|
EL5# GEN | — | |
| 83910 — Clock Assy | ||||
| 83910-16190-B0 note |
Clock Assy
1994-09 → 1996-08
ended
|
EL50 RHD | — | |
| 83910-16190-B1 note |
Clock Assy
1996-08 → —
|
EL50 RHD | — | |
| 83910-16190-E0 note |
Clock Assy
1994-09 → —
|
EL50 RHD | — | |
| 83910-16200-B0 note |
Clock Assy
1994-09 → 1996-08
ended
|
EL5# LHD | — | |
| 83910-16200-B1 note |
Clock Assy
1996-08 → —
|
EL5# LHD | — | |
| 83910-16200-E0 note |
Clock Assy
1994-09 → —
|
EL5# LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
