Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

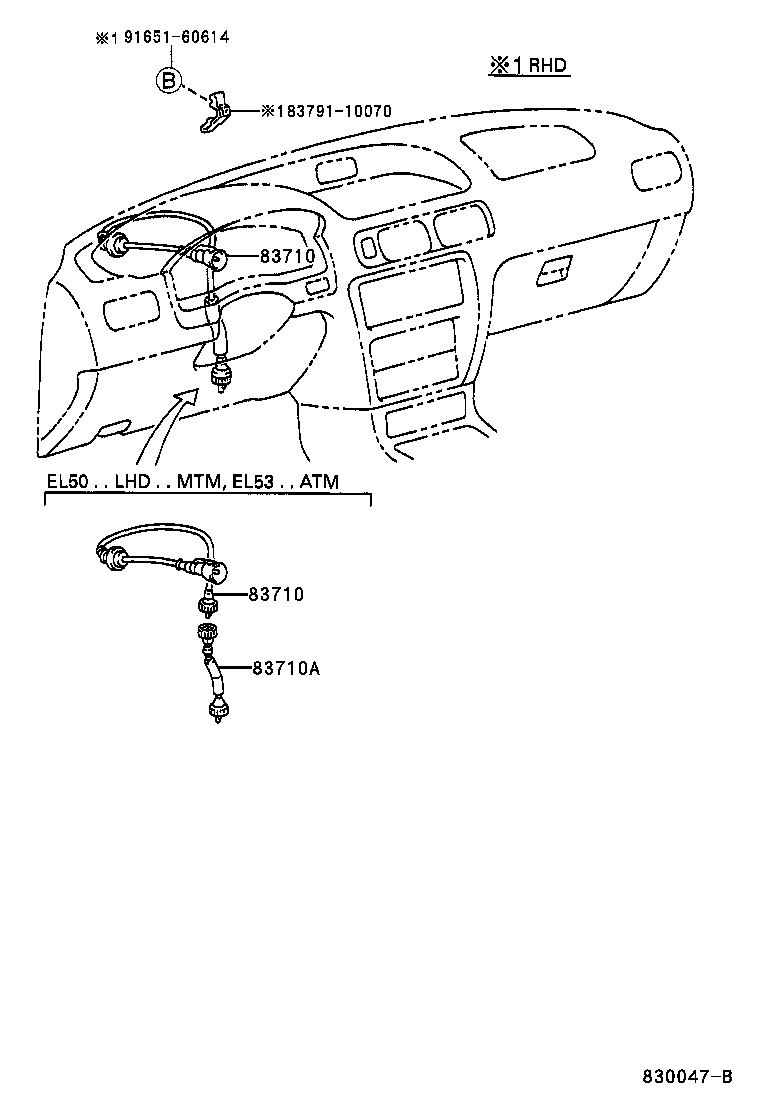

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83710 — Cable Assy, Speedometer Drive, NO.1 | ||||
| 83710-16260 |
Cable Assy, Speedometer Drive, NO.1
1994-09 → —
|
EL50 RHD 3FC | — | |
| 83710-16270 |
Cable Assy, Speedometer Drive, NO.1
1994-09 → —
|
EL50 RHD 5F | — | |
| 83710-16350 |
Cable Assy, Speedometer Drive, NO.1
1994-09 → 1997-05
ended
|
EL50 5F GCC | — | |
| 83710-16350 |
Cable Assy, Speedometer Drive, NO.1
1997-05 → —
|
EL50 5F GCC | — | |
| 83710-16350 note |
Cable Assy, Speedometer Drive, NO.1
1997-05 → —
|
EL50 LHD 5F GEN | — | |
| 83710-16360 |
Cable Assy, Speedometer Drive, NO.1
1994-09 → —
|
EL53 5F;EL50 LHD 3FC | — | |
| 83710-16380 |
Cable Assy, Speedometer Drive, NO.1
1994-09 → —
|
EL53 4FC;EL50 LHD 5F +1 | — | |
| 83710A — Cable Assy, Speedometer Drive, NO.2 | ||||
| 83710-20760 |
Cable Assy, Speedometer Drive, NO.2
1994-09 → —
|
EL53 4FC;EL50 LHD 5F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
