Toyota Tercel

1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General

Discontinued model Data version 2000-02

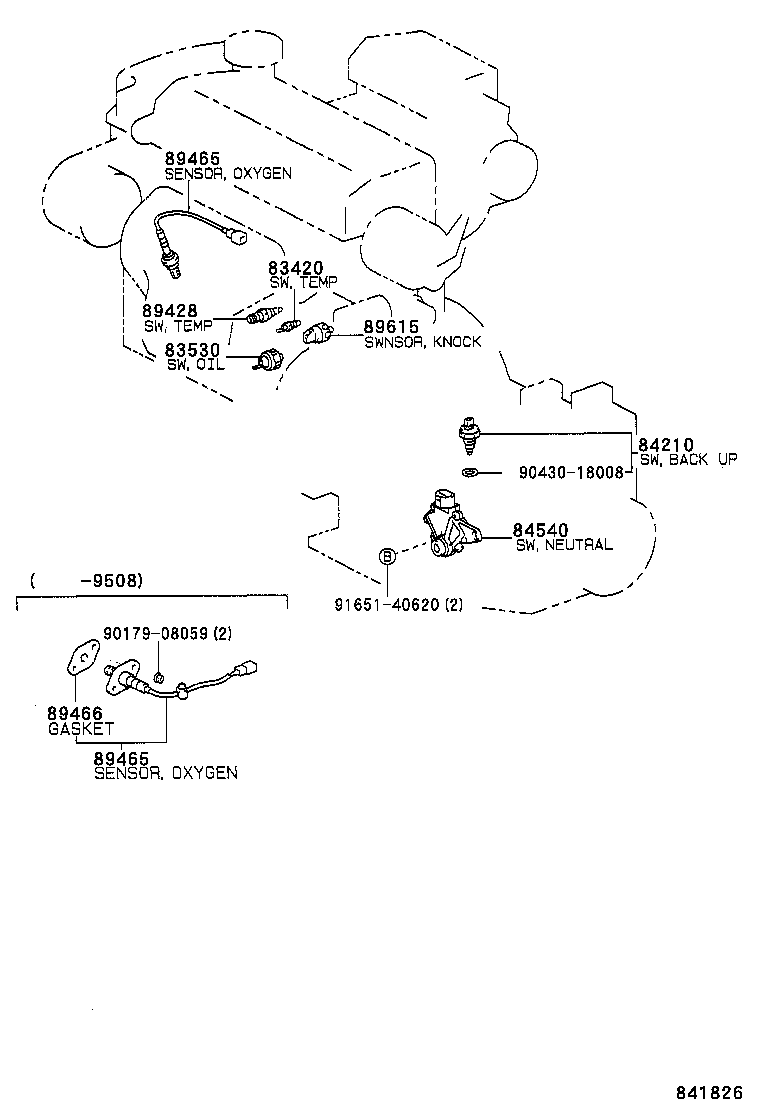

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

16 parts on this figure

Part number	Description	Fitment	Price
83420 — Gage Assy, Water Temperature Sender
83420-16020	Gage Assy, Water Temperature Sender 1994-09 → 1996-08 ended	EL53;EL50 GCC;EL50 RHD	—
83420-16020	Gage Assy, Water Temperature Sender 1996-08 → —	EL50	—
83420-20040	Gage Assy, Water Temperature Sender 1994-09 → 1996-08 ended	EL50 LHD GEN	—
83420-20040	Gage Assy, Water Temperature Sender 1996-08 → 1997-05 ended	EL53	—
83530 — Switch Assy, Oil Pressure (FOR ENGINE)
83530-14060	Switch Assy, Oil Pressure (FOR ENGINE) 1994-09 → 1994-11 ended	EL5#	—
83530-28020	Switch Assy, Oil Pressure (FOR ENGINE) 1998-03 → —	EL5#	—
83530-30090	Switch Assy, Oil Pressure (FOR ENGINE) 1994-11 → 1998-03 ended	EL5#	—
84210 — Switch Assy, Back-up Lamp
84210-12040	Switch Assy, Back-up Lamp 1994-09 → —	EL5# 5F	—
84540 — Switch Assy, Neutral Start
84540-16050	Switch Assy, Neutral Start 1994-09 → —	EL5# ATM	—
89428 — Switch, Temperature Detect, NO.2
89428-12160	Switch, Temperature Detect, NO.2 1994-09 → —	EL5#	—
89465 — Sensor, Oxygen
89465-16050	Sensor, Oxygen 1995-08 → 1996-08 ended	EL53	—
89465-16110	Sensor, Oxygen 1996-08 → —	EL53	—
89465-19655	Sensor, Oxygen 1994-09 → 1995-08 ended	EL53	—
89466 — Gasket, Oxygen Sensor
89466-20020	Gasket, Oxygen Sensor 1994-09 → 1995-08 ended	EL53	—
89615 — Sensor, Knock Control
89615-22030 note	Sensor, Knock Control 1995-08 → —	EL53	—
89615-22040 note	Sensor, Knock Control 1995-08 → —	EL53	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
