Toyota Tercel

1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General

Discontinued model Data version 2000-02

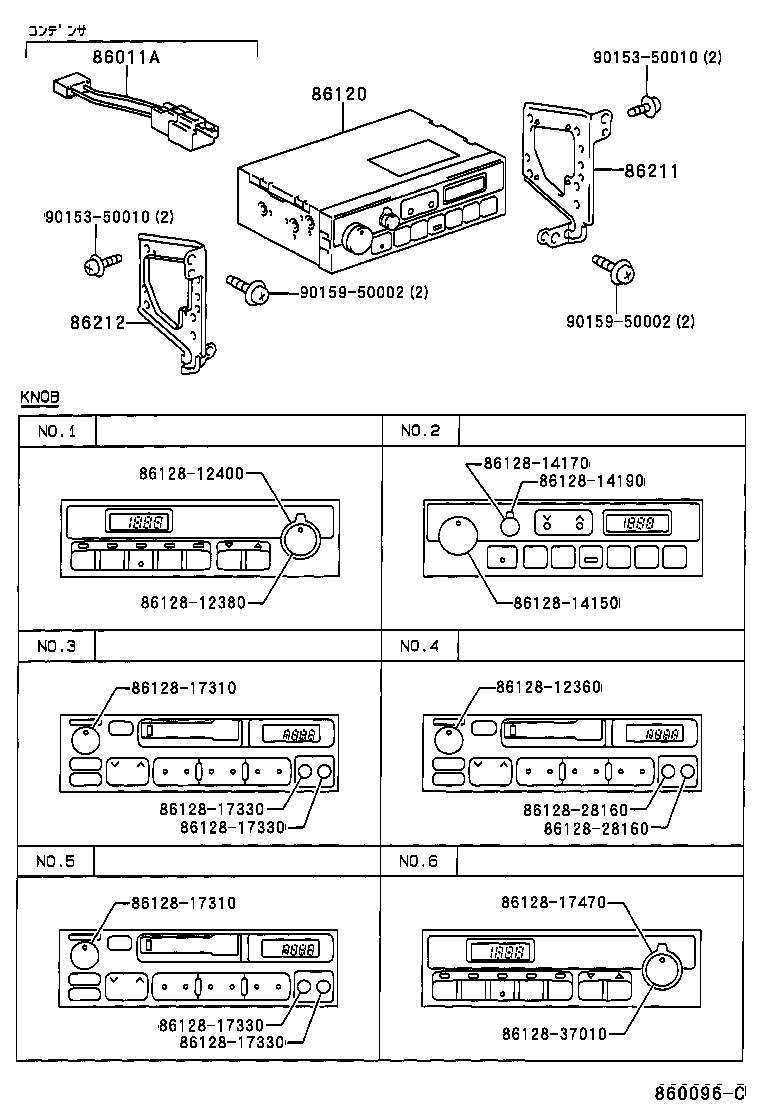

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

15 parts on this figure

Part number	Description	Fitment	Price
86011A — Condenser, Radio Setting
90980-04116	Condenser, Radio Setting 1997-12 → —	EL53	—
86120 — Receiver Assy, Radio
86120-08020 note	Receiver Assy, Radio 1997-12 → —	EL5# GEN	—
86120-16650 note	Receiver Assy, Radio 1997-12 → —	EL5# GEN	—
86120-16660 note	Receiver Assy, Radio 1997-12 → —	EL50	—
86120-16670 note	Receiver Assy, Radio 1997-12 → —	EL5# GEN	—
86120-16680 note	Receiver Assy, Radio 1997-12 → —	EL50 GCC	—
86120-1A040 note	Receiver Assy, Radio 1994-09 → —	EL50	—
86120-2A070 note	Receiver Assy, Radio 1994-09 → 1997-12 ended	EL5# GEN	—
86120-2A190 note	Receiver Assy, Radio 1994-09 → 1995-08 ended	EL50 GCC	—
86120-2B380 note	Receiver Assy, Radio 1994-09 → 1997-12 ended	EL50	—
86120-35090 note	Receiver Assy, Radio 1994-09 → 1997-12 ended	EL5# GEN	—
86120-35100 note	Receiver Assy, Radio 1995-08 → 1997-12 ended	EL50 GCC	—
86120-35110 note	Receiver Assy, Radio 1994-09 → —	EL5# GEN	—
86211 — Bracket, Radio, NO.1
86211-16260	Bracket, Radio, NO.1 1994-09 → —	EL5#	—
86212 — Bracket, Radio, NO.2
86212-16260	Bracket, Radio, NO.2 1994-09 → —	EL5#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
