Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

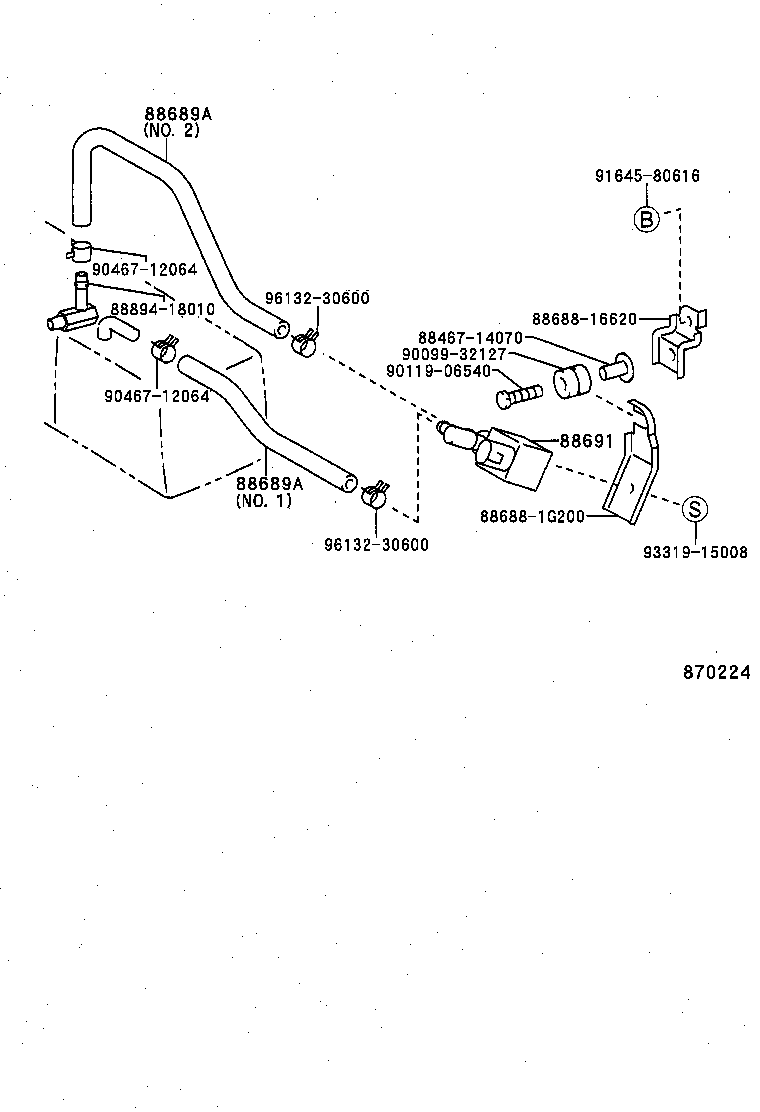

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88689A — Hose, Cooler Vacuum NO.1 | ||||
| 88689-16100 note |
Hose, Cooler Vacuum NO.1
1994-09 → 1995-08
ended
|
EL53 | — | |
| 88689-16110 note |
Hose, Cooler Vacuum NO.1
1994-09 → 1995-08
ended
|
EL53 | — | |
| 88691 — Valve, Magnet (FOR IDLE UP DEVICE) | ||||
| 88691-16060 |
Valve, Magnet (FOR IDLE UP DEVICE)
1994-09 → —
|
EL50 | — | |
| 88691-17030 |
Valve, Magnet (FOR IDLE UP DEVICE)
1994-09 → 1995-08
ended
|
EL53 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
