Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

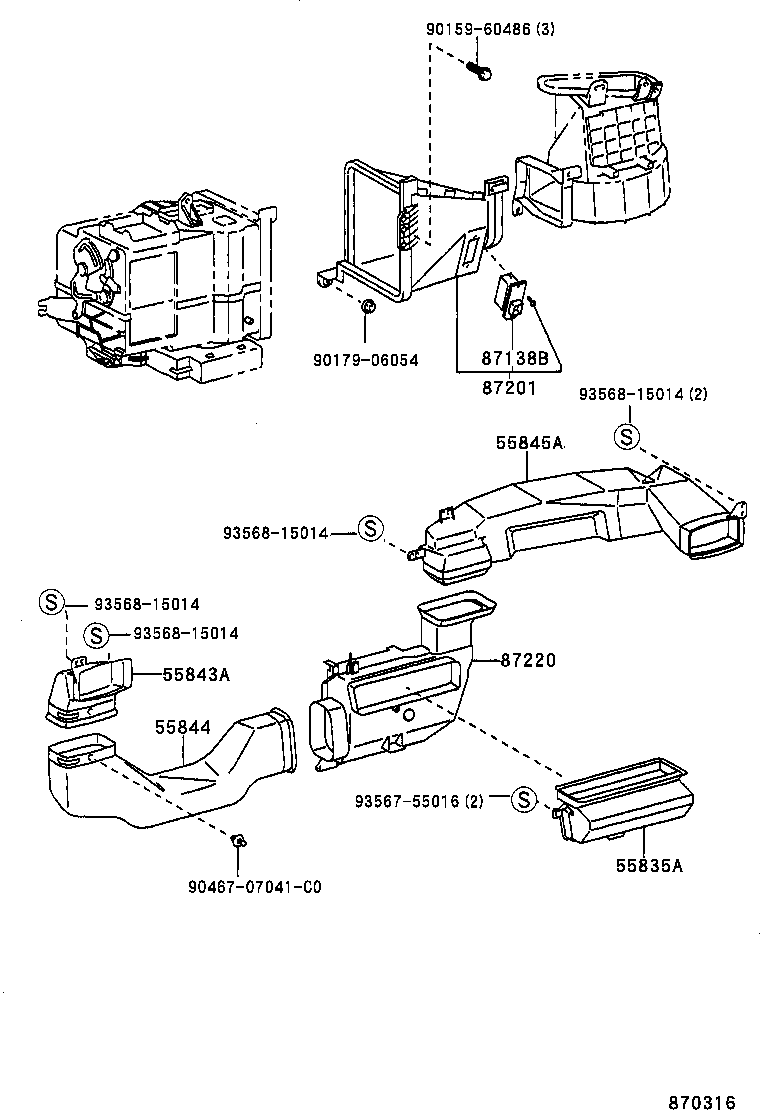

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55835A — Duct, Heater TO Register, Center | ||||
| 55835-16060 |
Duct, Heater TO Register, Center
1994-09 → 1997-12
ended
|
EL50 RHD | — | |
| 55835-16070 |
Duct, Heater TO Register, Center
1994-09 → —
|
EL5# LHD | — | |
| 55835-16080 |
Duct, Heater TO Register, Center
1997-12 → —
|
EL50 RHD | — | |
| 55843A — Duct, Heater TO Register, NO.1 | ||||
| 55843-16110 |
Duct, Heater TO Register, NO.1
1994-09 → —
|
EL50 RHD | — | |
| 55843-16120 |
Duct, Heater TO Register, NO.1
1994-09 → —
|
EL5# LHD | — | |
| 55844 — Duct, Heater TO Register, NO.2 | ||||
| 55844-16090 |
Duct, Heater TO Register, NO.2
1994-09 → —
|
EL50 RHD | — | |
| 55844-16100 |
Duct, Heater TO Register, NO.2
1994-09 → —
|
EL5# LHD | — | |
| 55845A — Duct, Heater TO Register, NO.3 | ||||
| 55845-16090 |
Duct, Heater TO Register, NO.3
1994-09 → 1996-08
ended
|
EL50 RHD | — | |
| 55845-16100 |
Duct, Heater TO Register, NO.3
1994-09 → 1997-12
ended
|
EL5# LHD | — | |
| 55845-16110 |
Duct, Heater TO Register, NO.3
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 55845-16110 |
Duct, Heater TO Register, NO.3
1997-12 → —
|
EL50 RHD | — | |
| 55845-16120 |
Duct, Heater TO Register, NO.3
1997-12 → —
|
EL5# LHD | — | |
| 87138B — Resistor, Heater Blower | ||||
| 87138-16140 |
Resistor, Heater Blower
1994-09 → —
|
EL5# | — | |
| 87201 — Duct Sub-assy, Air, NO.1 | ||||
| 87201-16140 |
Duct Sub-assy, Air, NO.1
1994-09 → —
|
EL50 RHD | — | |
| 87201-16150 |
Duct Sub-assy, Air, NO.1
1994-09 → —
|
EL5# LHD | — | |
| 87220 — Duct Assy, Air | ||||
| 87220-16040 |
Duct Assy, Air
1994-09 → —
|
EL5# LHD | — | |
| 87220-16050 |
Duct Assy, Air
1994-09 → 1997-12
ended
|
EL50 RHD | — | |
| 87220-16051 |
Duct Assy, Air
1997-12 → —
|
EL50 RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
