Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

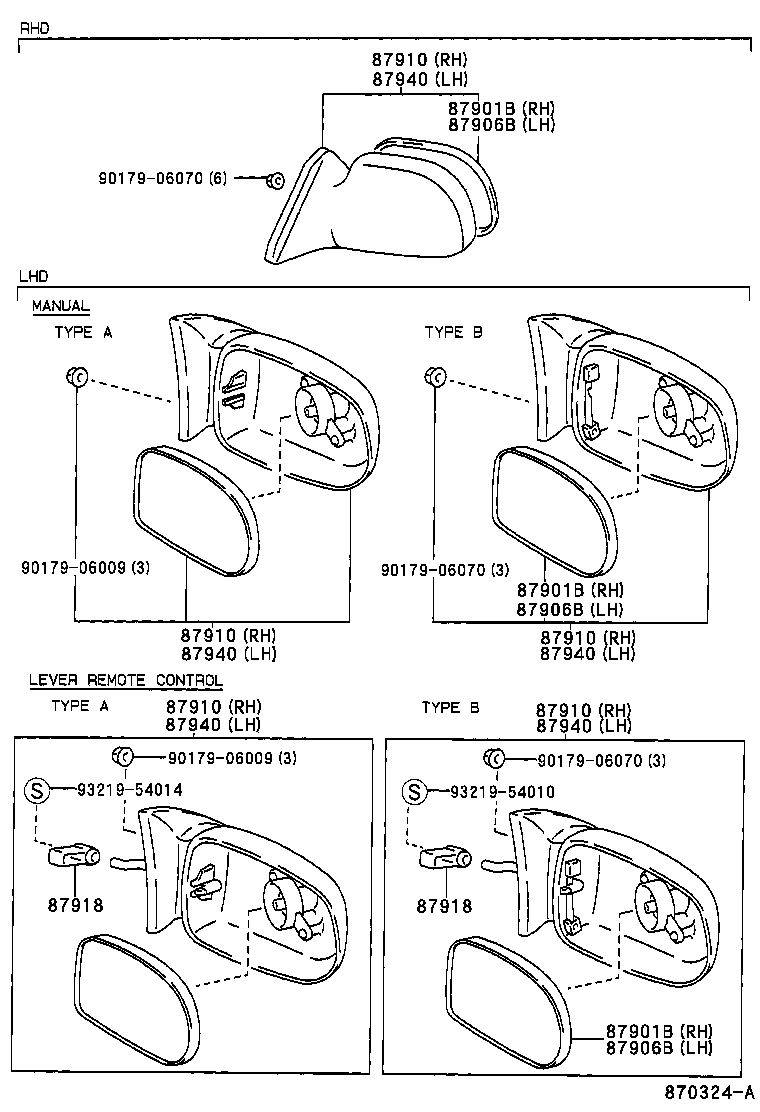

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87901B — Mirror Sub-assy, Outer Rear View, RH | ||||
| 87931-16510 |
Mirror Sub-assy, Outer Rear View, RH
1995-09 → —
|
EL5# LHD GEN | — | |
| 87931-16510 |
Mirror Sub-assy, Outer Rear View, RH
1994-09 → 1995-09
ended
|
EL5# LHD | — | |
| 87931-16750 |
Mirror Sub-assy, Outer Rear View, RH
1994-09 → 1995-09
ended
|
EL50 RHD | — | |
| 87931-16750 |
Mirror Sub-assy, Outer Rear View, RH
1995-09 → 1996-08
ended
|
EL50 GCC;EL50 RHD | — | |
| 87931-16750 |
Mirror Sub-assy, Outer Rear View, RH
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 87931-16880 |
Mirror Sub-assy, Outer Rear View, RH
1996-08 → 1997-12
ended
|
EL50 GCC | — | |
| 87931-1E720 |
Mirror Sub-assy, Outer Rear View, RH
1997-12 → —
|
EL50 RHD | — | |
| 87931-1G080 |
Mirror Sub-assy, Outer Rear View, RH
1997-12 → —
|
EL50 GCC | — | |
| 87906B — Mirror Sub-assy, Outer Rear View, LH | ||||
| 87961-16550 |
Mirror Sub-assy, Outer Rear View, LH
1994-09 → 1995-09
ended
|
EL5# LHD | — | |
| 87961-16550 |
Mirror Sub-assy, Outer Rear View, LH
1995-09 → —
|
EL5# LHD GEN | — | |
| 87961-16750 |
Mirror Sub-assy, Outer Rear View, LH
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 87961-16750 |
Mirror Sub-assy, Outer Rear View, LH
1995-09 → 1996-08
ended
|
EL50 GCC;EL50 RHD | — | |
| 87961-16750 |
Mirror Sub-assy, Outer Rear View, LH
1994-09 → 1995-09
ended
|
EL50 RHD | — | |
| 87961-1G040 |
Mirror Sub-assy, Outer Rear View, LH
1996-08 → 1997-12
ended
|
EL50 GCC | — | |
| 87961-1G130 |
Mirror Sub-assy, Outer Rear View, LH
1997-12 → —
|
EL50 GCC | — | |
| 87961-1H050 |
Mirror Sub-assy, Outer Rear View, LH
1997-12 → —
|
EL50 RHD | — | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87910-0W010 note |
Mirror Assy, Outer Rear View, RH
1994-09 → 1995-09
ended
|
EL5# LHD | — | |
| 87910-0W010 note |
Mirror Assy, Outer Rear View, RH
1995-09 → —
|
EL5# LHD GEN | — | |
| 87910-0W020 note |
Mirror Assy, Outer Rear View, RH
1994-09 → 1995-09
ended
|
EL5# LHD | — | |
| 87910-0W020 note |
Mirror Assy, Outer Rear View, RH
1995-09 → 1996-08
ended
|
EL5# LHD GEN | — | |
| 87910-0W040 note |
Mirror Assy, Outer Rear View, RH
1996-08 → —
|
EL5# LHD GEN | — | |
| 87910-16750 |
Mirror Assy, Outer Rear View, RH
1994-09 → 1997-12
ended
|
EL50 RHD | — | |
| 87910-16780 note |
Mirror Assy, Outer Rear View, RH
1995-09 → —
|
EL5# LHD GEN | — | |
| 87910-16780 note |
Mirror Assy, Outer Rear View, RH
1994-09 → 1995-09
ended
|
EL5# LHD | — | |
| 87910-16790 note |
Mirror Assy, Outer Rear View, RH
1995-09 → 1996-08
ended
|
EL5# LHD GEN | — | |
| 87910-16790 note |
Mirror Assy, Outer Rear View, RH
1994-09 → 1995-09
ended
|
EL5# LHD | — | |
| 87910-16830 note |
Mirror Assy, Outer Rear View, RH
1995-09 → 1996-08
ended
|
EL50 GCC | — | |
| 87910-16860 note |
Mirror Assy, Outer Rear View, RH
1996-08 → —
|
EL5# LHD GEN | — | |
| 87910-16880 note |
Mirror Assy, Outer Rear View, RH
1996-08 → 1997-12
ended
|
EL50 GCC | — | |
| 87910-1G050 |
Mirror Assy, Outer Rear View, RH
1997-12 → —
|
EL50 RHD | — | |
| 87910-1G080 note |
Mirror Assy, Outer Rear View, RH
1997-12 → —
|
EL50 GCC | — | |
| 87918 — Knob, Control Outer Mirror | ||||
| 87918-0W010 note |
Knob, Control Outer Mirror
1994-09 → 1995-09
ended
|
EL5# LHD | — | |
| 87918-0W010 note |
Knob, Control Outer Mirror
1995-09 → 1996-08
ended
|
EL5# LHD GEN | — | |
| 87918-0W020 note |
Knob, Control Outer Mirror
1996-08 → —
|
EL5# LHD GEN | — | |
| 87918-16010 note |
Knob, Control Outer Mirror
1994-09 → 1995-09
ended
|
EL5# LHD | — | |
| 87918-16010 note |
Knob, Control Outer Mirror
1995-09 → 1996-08
ended
|
EL5# LHD GEN | — | |
| 87918-16020 note |
Knob, Control Outer Mirror
1996-08 → —
|
EL5# LHD GEN | — | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87940-0W010 note |
Mirror Assy, Outer Rear View, LH
1994-09 → 1995-09
ended
|
EL5# LHD | — | |
| 87940-0W010 note |
Mirror Assy, Outer Rear View, LH
1995-09 → —
|
EL5# LHD GEN | — | |
| 87940-0W020 note |
Mirror Assy, Outer Rear View, LH
1995-09 → 1996-08
ended
|
EL5# LHD GEN | — | |
| 87940-0W020 note |
Mirror Assy, Outer Rear View, LH
1994-09 → 1995-09
ended
|
EL5# LHD | — | |
| 87940-0W040 note |
Mirror Assy, Outer Rear View, LH
1996-08 → —
|
EL5# LHD GEN | — | |
| 87940-16750 |
Mirror Assy, Outer Rear View, LH
1994-09 → 1997-12
ended
|
EL50 RHD | — | |
| 87940-16780 note |
Mirror Assy, Outer Rear View, LH
1994-09 → 1995-09
ended
|
EL5# LHD | — | |
| 87940-16780 note |
Mirror Assy, Outer Rear View, LH
1995-09 → —
|
EL5# LHD GEN | — | |
| 87940-16790 note |
Mirror Assy, Outer Rear View, LH
1994-09 → 1995-09
ended
|
EL5# LHD | — | |
| 87940-16790 note |
Mirror Assy, Outer Rear View, LH
1995-09 → 1996-08
ended
|
EL5# LHD GEN | — | |
| 87940-16880 note |
Mirror Assy, Outer Rear View, LH
1995-09 → 1996-08
ended
|
EL50 GCC | — | |
| 87940-1G020 note |
Mirror Assy, Outer Rear View, LH
1996-08 → —
|
EL5# LHD GEN | — | |
| 87940-1G040 note |
Mirror Assy, Outer Rear View, LH
1996-08 → 1997-12
ended
|
EL50 GCC | — | |
| 87940-1G100 |
Mirror Assy, Outer Rear View, LH
1997-12 → —
|
EL50 RHD | — | |
| 87940-1G130 note |
Mirror Assy, Outer Rear View, LH
1997-12 → —
|
EL50 GCC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
