Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

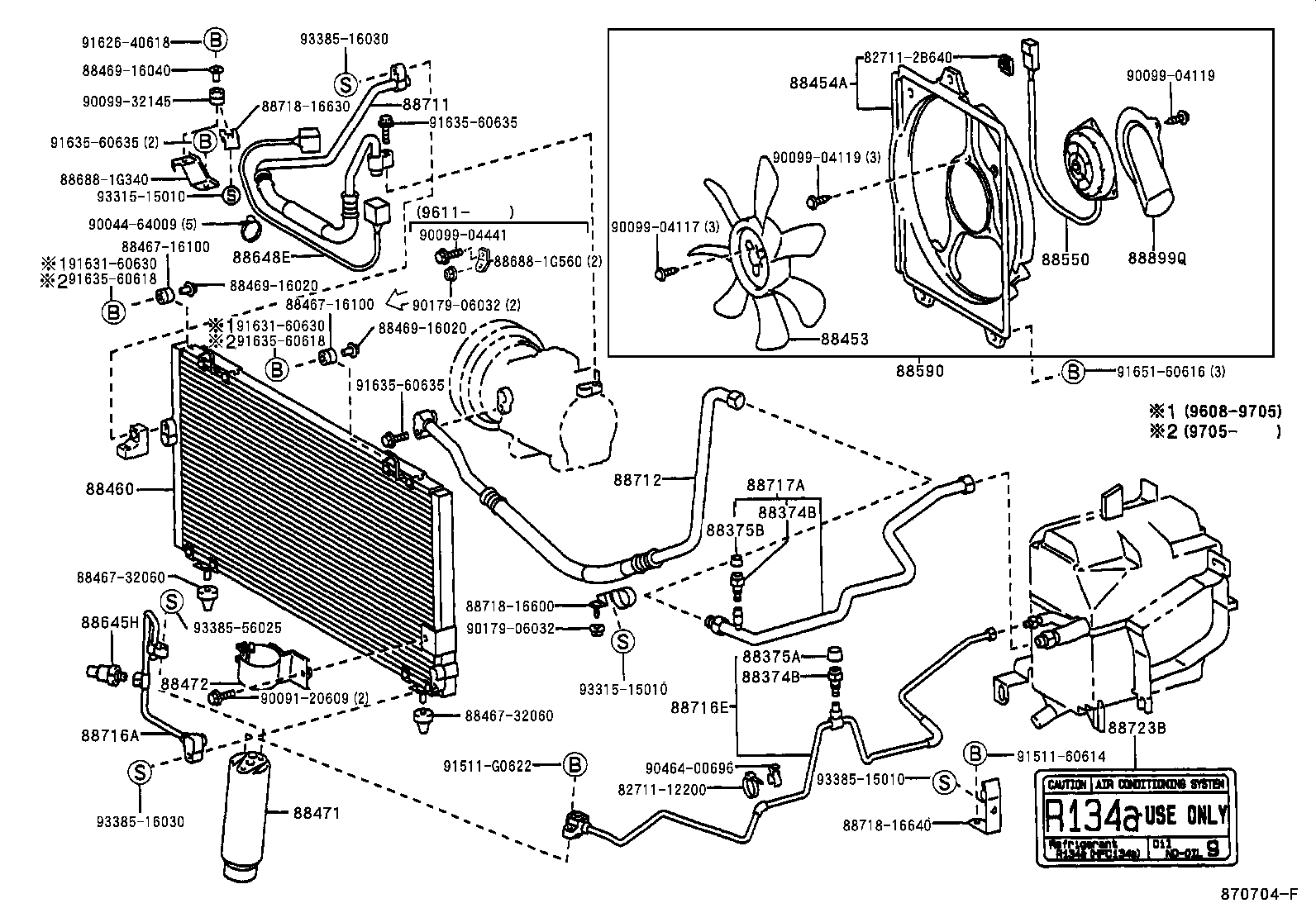

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88374B — Valve, Service, NO.1 | ||||
| 88374-30010 |
Valve, Service, NO.1
1997-12 → —
|
EL5# GEN | — | |
| 88374-30010 |
Valve, Service, NO.1
1994-09 → 1997-12
ended
|
EL5# | — | |
| 88375A — Cap, Service Valve (FOR COOLER PIPE) | ||||
| 88375-30280 |
Cap, Service Valve (FOR COOLER PIPE)
1997-12 → —
|
EL5# GEN | — | |
| 88375-30280 |
Cap, Service Valve (FOR COOLER PIPE)
1994-09 → 1997-12
ended
|
EL5# | — | |
| 88375B — Cap, Service Valve, NO.1 | ||||
| 88375-30290 |
Cap, Service Valve, NO.1
1997-12 → —
|
EL5# GEN | — | |
| 88375-30290 |
Cap, Service Valve, NO.1
1994-09 → 1997-12
ended
|
EL5# | — | |
| 88453 — Fan, Cooling (FOR CONDENSER) | ||||
| 88453-20080 |
Fan, Cooling (FOR CONDENSER)
1994-09 → —
|
EL5# | — | |
| 88454A — Shroud, Fan | ||||
| 88454-16140 |
Shroud, Fan
1994-09 → —
|
EL5# | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 88460-16330 |
Condenser Assy, Cooler
1994-09 → 1996-08
ended
|
EL50 RHD | — | |
| 88460-16340 |
Condenser Assy, Cooler
1994-09 → 1996-08
ended
|
EL5# LHD | — | |
| 88460-16420 note |
Condenser Assy, Cooler
1996-08 → 1996-11
ended
|
EL50 RHD | — | |
| 88460-16420 note |
Condenser Assy, Cooler
1996-11 → 1997-12
ended
|
EL50 RHD 3FC | — | |
| 88460-16421 note |
Condenser Assy, Cooler
1996-11 → 1997-12
ended
|
EL50 RHD | — | |
| 88460-16440 |
Condenser Assy, Cooler
1996-08 → 1997-12
ended
|
EL5# LHD | — | |
| 88460-16480 |
Condenser Assy, Cooler
1997-12 → —
|
EL50 RHD | — | |
| 88460-16490 |
Condenser Assy, Cooler
1997-12 → —
|
EL5# LHD | — | |
| 88471 — Tank, Receiver Air Conditioner | ||||
| 88471-20050 |
Tank, Receiver Air Conditioner
1994-09 → 1997-12
ended
|
EL5# | — | |
| 88472 — Bracket, Receiver Tank, NO.1 | ||||
| 88472-16130 |
Bracket, Receiver Tank, NO.1
1994-09 → 1997-12
ended
|
EL50 RHD | — | |
| 88472-16140 |
Bracket, Receiver Tank, NO.1
1994-09 → 1997-12
ended
|
EL5# LHD | — | |
| 88550 — Motor Assy, Blower (FOR CONDENSER) | ||||
| 16363-74180 |
Motor Assy, Blower (FOR CONDENSER)
1994-09 → —
|
EL5# | — | |
| 88590 — Blower Assy, W/Shroud | ||||
| 88590-16070 |
Blower Assy, W/Shroud
1994-09 → —
|
EL5# | — | |
| 88645H — Switch, Pressure NO.1 | ||||
| 88645-20050 |
Switch, Pressure NO.1
1994-09 → —
|
EL5# | — | |
| 88648E — Wiring, Cooler | ||||
| 88648-16220 |
Wiring, Cooler
1994-09 → 1996-08
ended
|
EL5# | — | |
| 88648-16280 |
Wiring, Cooler
1996-08 → —
|
EL50 RHD | — | |
| 88648-16290 |
Wiring, Cooler
1996-08 → —
|
EL50 GCC | — | |
| 88648-16300 |
Wiring, Cooler
1996-08 → —
|
EL50 LHD GEN | — | |
| 88648-16310 |
Wiring, Cooler
1996-08 → —
|
EL53 | — | |
| 88711 — Hose, Cooler Refrigerant Discharge, NO.1 | ||||
| 88711-16260 note |
Hose, Cooler Refrigerant Discharge, NO.1
1994-09 → 1995-08
ended
|
EL50 RHD | — | |
| 88711-16261 note |
Hose, Cooler Refrigerant Discharge, NO.1
1995-08 → 1996-08
ended
|
EL50 RHD | — | |
| 88711-16281 note |
Hose, Cooler Refrigerant Discharge, NO.1
1995-08 → 1996-08
ended
|
EL53 | — | |
| 88711-16290 note |
Hose, Cooler Refrigerant Discharge, NO.1
1995-08 → 1996-08
ended
|
EL50 LHD | — | |
| 88711-16290 note |
Hose, Cooler Refrigerant Discharge, NO.1
1994-09 → 1995-08
ended
|
EL5# LHD | — | |
| 88711-16321 note |
Hose, Cooler Refrigerant Discharge, NO.1
1994-09 → 1996-08
ended
|
EL50 RHD | — | |
| 88711-16340 note |
Hose, Cooler Refrigerant Discharge, NO.1
1994-09 → 1995-08
ended
|
EL5# LHD GEN | — | |
| 88711-16340 note |
Hose, Cooler Refrigerant Discharge, NO.1
1995-08 → 1996-08
ended
|
EL50 LHD GEN | — | |
| 88711-16351 note |
Hose, Cooler Refrigerant Discharge, NO.1
1995-08 → 1996-08
ended
|
EL53 | — | |
| 88711-16370 note |
Hose, Cooler Refrigerant Discharge, NO.1
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 88711-16380 note |
Hose, Cooler Refrigerant Discharge, NO.1
1996-08 → 1997-12
ended
|
EL53 | — | |
| 88711-16390 note |
Hose, Cooler Refrigerant Discharge, NO.1
1996-08 → 1997-12
ended
|
EL50 LHD | — | |
| 88711-16400 note |
Hose, Cooler Refrigerant Discharge, NO.1
1996-08 → 1997-12
ended
|
EL50 RHD | — | |
| 88711-16410 note |
Hose, Cooler Refrigerant Discharge, NO.1
1996-08 → 1997-12
ended
|
EL53 | — | |
| 88711-16420 note |
Hose, Cooler Refrigerant Discharge, NO.1
1996-08 → 1997-12
ended
|
EL50 LHD GEN | — | |
| 88711-16430 note |
Hose, Cooler Refrigerant Discharge, NO.1
1997-12 → —
|
EL50 RHD | — | |
| 88711-16440 note |
Hose, Cooler Refrigerant Discharge, NO.1
1997-12 → —
|
EL53 | — | |
| 88711-16450 note |
Hose, Cooler Refrigerant Discharge, NO.1
1997-12 → —
|
EL50 LHD | — | |
| 88711-16460 note |
Hose, Cooler Refrigerant Discharge, NO.1
1997-12 → —
|
EL50 RHD | — | |
| 88711-16470 note |
Hose, Cooler Refrigerant Discharge, NO.1
1997-12 → —
|
EL53 | — | |
| 88711-16480 note |
Hose, Cooler Refrigerant Discharge, NO.1
1997-12 → —
|
EL50 LHD GEN | — | |
| 88712 — Hose, Cooler Refrigerant Suction, NO.1 | ||||
| 88712-16390 |
Hose, Cooler Refrigerant Suction, NO.1
1994-09 → 1996-08
ended
|
EL50 RHD | — | |
| 88712-16460 |
Hose, Cooler Refrigerant Suction, NO.1
1995-08 → 1996-08
ended
|
EL53 | — | |
| 88712-16470 |
Hose, Cooler Refrigerant Suction, NO.1
1994-09 → 1996-05
ended
|
EL50 GCC | — | |
| 88712-16471 |
Hose, Cooler Refrigerant Suction, NO.1
1996-05 → 1996-08
ended
|
EL50 GCC | — | |
| 88712-16480 |
Hose, Cooler Refrigerant Suction, NO.1
1994-09 → 1995-08
ended
|
EL5# LHD GEN | — | |
| 88712-16480 |
Hose, Cooler Refrigerant Suction, NO.1
1995-08 → 1996-05
ended
|
EL50 LHD GEN | — | |
| 88712-16481 |
Hose, Cooler Refrigerant Suction, NO.1
1996-05 → 1996-08
ended
|
EL50 LHD GEN | — | |
| 88712-16520 |
Hose, Cooler Refrigerant Suction, NO.1
1996-08 → —
|
EL50 RHD | — | |
| 88712-16570 |
Hose, Cooler Refrigerant Suction, NO.1
1996-08 → —
|
EL53 | — | |
| 88712-16580 |
Hose, Cooler Refrigerant Suction, NO.1
1996-08 → —
|
EL50 LHD | — | |
| 88716A — Pipe, Cooler Refrigerant Liquid, A | ||||
| 88716-1G030 |
Pipe, Cooler Refrigerant Liquid, A
1994-09 → 1997-12
ended
|
EL50 RHD | — | |
| 88716-1G040 |
Pipe, Cooler Refrigerant Liquid, A
1994-09 → 1997-12
ended
|
EL5# LHD | — | |
| 88716-1G410 |
Pipe, Cooler Refrigerant Liquid, A
1997-12 → —
|
EL50 RHD | — | |
| 88716-1G420 |
Pipe, Cooler Refrigerant Liquid, A
1997-12 → —
|
EL5# LHD | — | |
| 88716E — Pipe, Cooler Refrigerant Liquid, E | ||||
| 88716-16880 note |
Pipe, Cooler Refrigerant Liquid, E
1994-09 → 1996-11
ended
|
EL50 RHD | — | |
| 88716-16881 note |
Pipe, Cooler Refrigerant Liquid, E
1996-11 → —
|
EL50 RHD | — | |
| 88716-1G010 note |
Pipe, Cooler Refrigerant Liquid, E
1995-08 → 1996-08
ended
|
EL53 | — | |
| 88716-1G020 note |
Pipe, Cooler Refrigerant Liquid, E
1994-09 → 1995-08
ended
|
EL5# LHD | — | |
| 88716-1G020 note |
Pipe, Cooler Refrigerant Liquid, E
1995-08 → 1997-12
ended
|
EL50 LHD | — | |
| 88716-1G080 note |
Pipe, Cooler Refrigerant Liquid, E
1994-09 → —
|
EL50 RHD | — | |
| 88716-1G120 note |
Pipe, Cooler Refrigerant Liquid, E
1994-09 → 1995-08
ended
|
EL5# LHD GEN | — | |
| 88716-1G120 note |
Pipe, Cooler Refrigerant Liquid, E
1995-08 → 1997-12
ended
|
EL50 LHD GEN | — | |
| 88716-1G140 note |
Pipe, Cooler Refrigerant Liquid, E
1995-08 → 1996-08
ended
|
EL53 | — | |
| 88716-1G340 note |
Pipe, Cooler Refrigerant Liquid, E
1996-08 → 1997-12
ended
|
EL53 | — | |
| 88716-1G340 note |
Pipe, Cooler Refrigerant Liquid, E
1997-12 → —
|
EL5# LHD | — | |
| 88716-1G380 note |
Pipe, Cooler Refrigerant Liquid, E
1996-08 → 1997-12
ended
|
EL53 | — | |
| 88716-1G380 note |
Pipe, Cooler Refrigerant Liquid, E
1997-12 → —
|
EL5# LHD GEN | — | |
| 88717A — Pipe, Cooler Refrigerant Suction, A | ||||
| 88717-16230 |
Pipe, Cooler Refrigerant Suction, A
1994-09 → —
|
EL50 RHD | — | |
| 88717-16250 |
Pipe, Cooler Refrigerant Suction, A
1995-08 → 1996-08
ended
|
EL53 | — | |
| 88717-16260 |
Pipe, Cooler Refrigerant Suction, A
1994-09 → 1995-08
ended
|
EL5# LHD | — | |
| 88717-16260 |
Pipe, Cooler Refrigerant Suction, A
1995-08 → 1997-12
ended
|
EL50 LHD | — | |
| 88717-16300 |
Pipe, Cooler Refrigerant Suction, A
1996-08 → 1997-12
ended
|
EL53 | — | |
| 88717-16300 |
Pipe, Cooler Refrigerant Suction, A
1997-12 → —
|
EL5# LHD | — | |
| 88723B — Label, Cooler Service Caution | ||||
| 88723-16050 |
Label, Cooler Service Caution
1994-09 → 1996-08
ended
|
EL5# | — | |
| 88723-20040 |
Label, Cooler Service Caution
1996-08 → —
|
EL5# | — | |
| 88899Q — Plate, Cover | ||||
| 88899-16020 |
Plate, Cover
1994-09 → —
|
EL5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
