Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

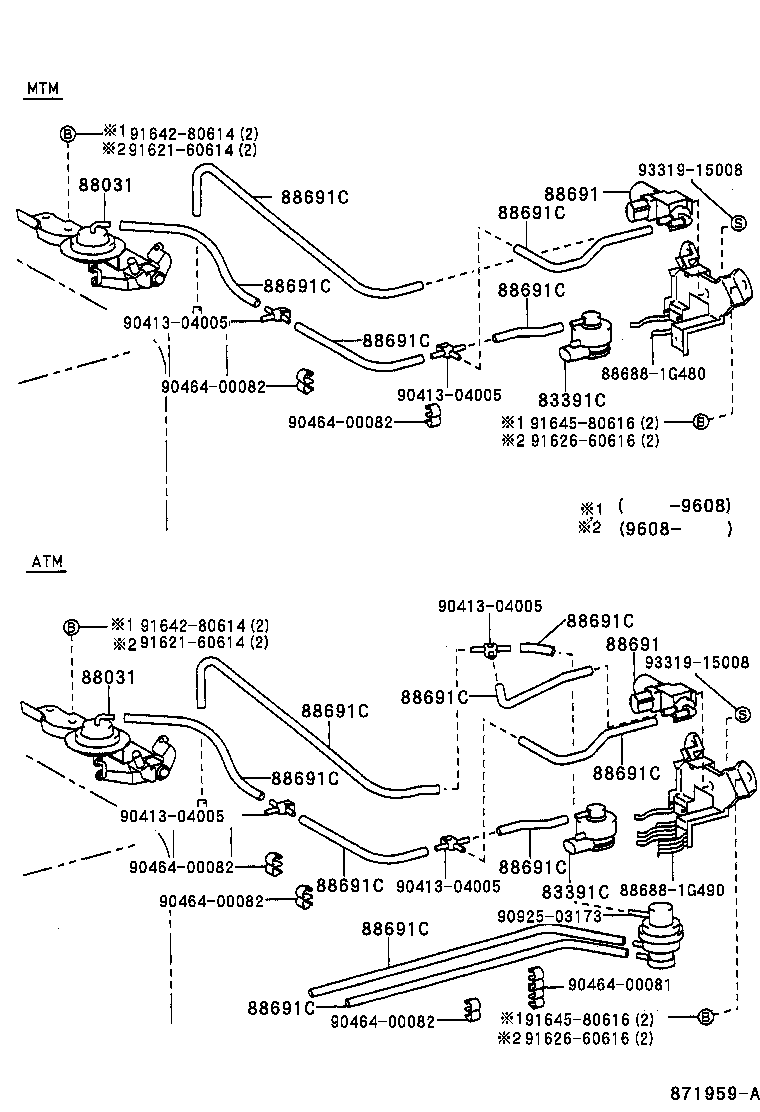

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83391C — Switch, Cooler Vacuum | ||||
| 83391-12210 |
Switch, Cooler Vacuum
1994-09 → —
|
EL50 | — | |
| 88031 — Actuator Set, Idle-up | ||||
| 88031-12200 |
Actuator Set, Idle-up
1994-09 → —
|
EL50 | — | |
| 88691 — Valve, Magnet (FOR IDLE UP DEVICE) | ||||
| 88691-16060 |
Valve, Magnet (FOR IDLE UP DEVICE)
1994-09 → —
|
EL50 | — | |
| 88691-17030 |
Valve, Magnet (FOR IDLE UP DEVICE)
1994-09 → 1995-08
ended
|
EL53 | — | |
| 88691C — Hose, Vacuum (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1997-12 → —
|
EL50 LHD 5F | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1997-12 → —
|
EL50 LHD 3FC | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1996-08 → —
|
EL50 RHD | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1996-08 → —
|
EL50 RHD | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1996-01 → —
|
EL50 LHD 3FC | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1994-09 → —
|
EL50 LHD 5F | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1994-09 → —
|
EL50 LHD 3FC | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1994-09 → —
|
EL50 LHD | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1994-09 → —
|
EL50 RHD | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1994-09 → —
|
EL50 RHD 3FC | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1996-08 → 1997-12
ended
|
EL50 LHD | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1996-01 → 1996-08
ended
|
EL50 LHD 5F | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1996-01 → 1996-08
ended
|
EL50 RHD;EL50 LHD 3FC | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1994-09 → 1996-08
ended
|
EL50 RHD | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1994-09 → 1996-01
ended
|
EL50 LHD | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1994-09 → 1996-01
ended
|
EL50 LHD 3FC | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1994-09 → 1996-01
ended
|
EL50 RHD | — | |
| 90999-92003 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1994-09 → —
|
EL50 RHD 5F | — | |
| 90999-92003 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1994-09 → —
|
EL50 LHD 5F;EL50 RHD +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
