Toyota Tercel

1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General

Discontinued model Data version 2000-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

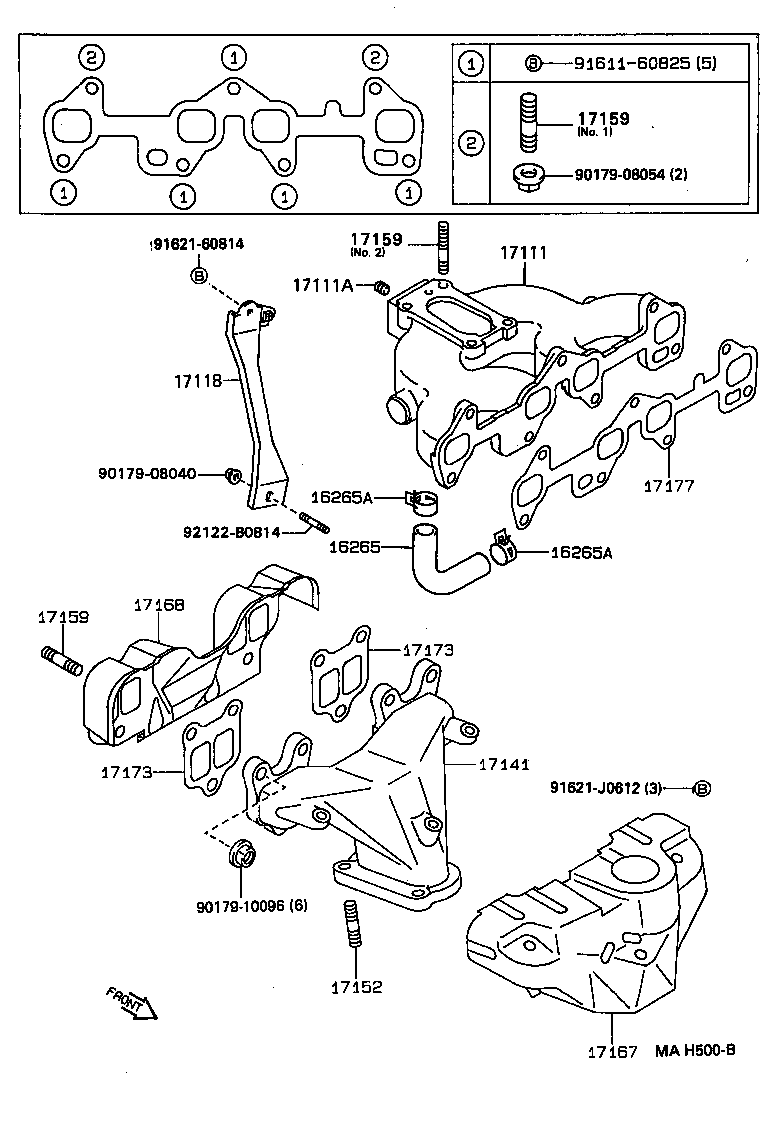

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

43 parts on this figure

Part number	Description	Fitment	Price
16265 — Hose, Intake Manifold Water
16265-11010	Hose, Intake Manifold Water 1996-08 → —	2E EL50	—
16265-11010	Hose, Intake Manifold Water 1994-09 → 1996-08 ended	2E EL50 5F;2E EL50 +5	—
16265A — Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
90467-21001	Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER) 1996-08 → —	2E EL50	—
90467-21001	Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER) 1994-09 → 1996-08 ended	2E EL50 5F;2E EL50 +5	—
17111 — Manifold, Intake
17101-11210	Manifold, Intake 1994-09 → —	2E EL50	—
17101-11240	Manifold, Intake 1994-09 → 1995-04 ended	5EFE EL53 4FC	—
17101-11241	Manifold, Intake 1995-04 → 1995-08 ended	5EFE EL53 4FC	—
17101-11261	Manifold, Intake 1994-09 → 1995-04 ended	5EFE EL53 5F	—
17101-11262	Manifold, Intake 1995-04 → 1995-08 ended	5EFE EL53 5F	—
17101-11270	Manifold, Intake 1995-08 → 1996-08 ended	5EFE EL53	—
17101-11360	Manifold, Intake 1996-08 → —	5EFE EL53	—
17111A — Plug, NO.1
90344-53015	Plug, NO.1 1994-09 → —	2E EL50	—
90345-51006	Plug, NO.1 1994-09 → 1995-08 ended	5EFE EL53 5F	—
90345-51006	Plug, NO.1 1994-09 → 1995-08 ended	5EFE EL53 4FC	—
17118 — Stay, Manifold
17118-11120	Stay, Manifold 1994-09 → —	2E EL50	—
17118-11220	Stay, Manifold 1994-09 → 1995-08 ended	5EFE EL53 4FC	—
17118-11230	Stay, Manifold 1994-09 → 1995-08 ended	5EFE EL53 5F	—
17118-11250	Stay, Manifold 1995-08 → —	5EFE EL53	—
17141 — Manifold, Exhaust
17141-10010	Manifold, Exhaust 1994-09 → —	2E EL50	—
17141-11230	Manifold, Exhaust 1994-09 → 1995-08 ended	5EFE EL53 5F	—
17141-11240	Manifold, Exhaust 1994-09 → 1995-08 ended	5EFE EL53 4FC	—
17141-11310	Manifold, Exhaust 1995-08 → —	5EFE EL53	—
17152 — Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017	Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) 1995-08 → —	2E EL50	—
90116-10017	Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) 1994-09 → 1995-08 ended	2E,5EFE EL5#	—
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90116-10131 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-09 → —	2E EL50	—
90116-10196 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1995-02 → —	5EFE EL53	—
92122-40828 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-09 → 1996-08 ended	2E EL50	—
92122-40828 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1996-08 → —	2E EL50	—
92122-61025 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-09 → 1995-02 ended	5EFE EL53	—
92132-60825 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-09 → —	2E EL50	—
92132-60825 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-09 → —	5EFE EL53	—
17167 — Insulator, Exhaust Manifold Heat, NO.1
17107-10011 note	Insulator, Exhaust Manifold Heat, NO.1 1994-09 → 1995-08 ended	2E EL50 GEN	—
17107-10011 note	Insulator, Exhaust Manifold Heat, NO.1 1995-08 → —	2E EL50 5F;2E EL50 +2	—
17167-10022	Insulator, Exhaust Manifold Heat, NO.1 1994-09 → —	2E EL50	—
17167-11210	Insulator, Exhaust Manifold Heat, NO.1 1994-09 → 1995-08 ended	5EFE EL53	—
17167-11320	Insulator, Exhaust Manifold Heat, NO.1 1995-08 → —	5EFE EL53	—
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-10011	Insulator, Exhaust Manifold Heat, NO.2 1994-09 → —	2E EL50	—
17173 — Gasket, Exhaust Manifold TO Head
17173-10021	Gasket, Exhaust Manifold TO Head 1994-09 → —	2E EL50	—
17173-11050	Gasket, Exhaust Manifold TO Head 1994-09 → —	5EFE EL53	—
17177 — Gasket, Intake Manifold TO Head, NO.1
17177-10020	Gasket, Intake Manifold TO Head, NO.1 1994-09 → —	2E EL50	—
17177-11021	Gasket, Intake Manifold TO Head, NO.1 1994-09 → 1995-04 ended	5EFE EL53	—
17177-11050	Gasket, Intake Manifold TO Head, NO.1 1995-08 → —	5EFE EL53	—
17177-11070	Gasket, Intake Manifold TO Head, NO.1 1995-04 → 1995-08 ended	5EFE EL53	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
