Toyota Tercel

1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

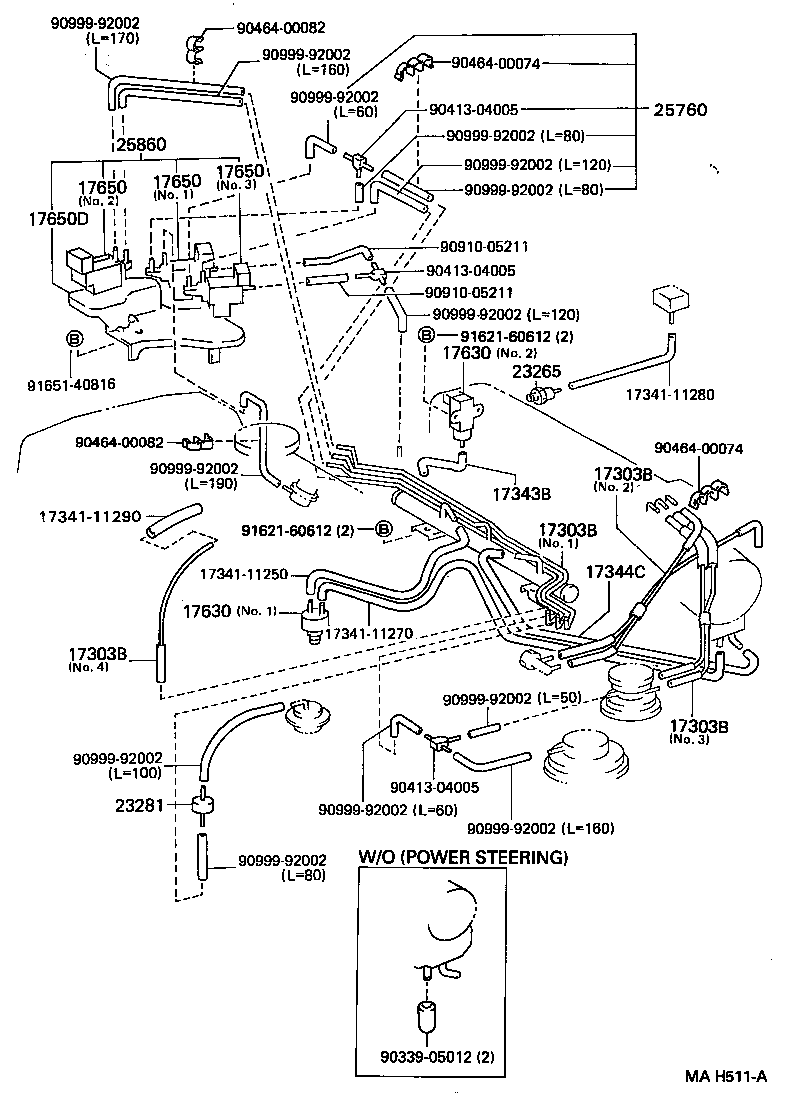

Exploded illustration MAH511A 9099992002 — not listed in this catalogue 9046400082 — not listed in this catalogue 9099992002 — not listed in this catalogue 9046400074 — not listed in this catalogue 9099992002 — not listed in this catalogue 9041304005 — not listed in this catalogue 25760 — HOSE ASSY, VACUUM TRANSMITTING (3 parts) 9099992002 — not listed in this catalogue 25860 — VALVE ASSY, VACUUM SWITCHING, NO.1 (3 parts) 9099992002 — not listed in this catalogue 17650 — VALVE ASSY, VACUUM SWITCHING (4 parts) 17650 — VALVE ASSY, VACUUM SWITCHING (4 parts) 17650 — VALVE ASSY, VACUUM SWITCHING (4 parts) 9099992002 — not listed in this catalogue 17650D — BRACKET, VACUUM SWITCHING VALVE (2 parts) 9091005211 — not listed in this catalogue 9041304005 — not listed in this catalogue 9091005211 — not listed in this catalogue 9099992002 — not listed in this catalogue 9162160612 — not listed in this catalogue 17630 — VALVE ASSY, AIR CONTROL (4 parts) 23265 — FILTER, GAS, NO.1 (4 parts) 9165140816 — not listed in this catalogue 1734111280 — not listed in this catalogue 9046400082 — not listed in this catalogue 9046400074 — not listed in this catalogue 9099992002 — not listed in this catalogue 17303B — PIPE SUB-ASSY, AIR, NO.1 (12 parts) 17343B — HOSE, NO.3(FOR IDLE-UP) (1 parts) 1734111290 — not listed in this catalogue 17303B — PIPE SUB-ASSY, AIR, NO.1 (12 parts) 9162160612 — not listed in this catalogue 17344C — HOSE, NO.4(FOR IDLE-UP) (1 parts) 1734111250 — not listed in this catalogue 17630 — VALVE ASSY, AIR CONTROL (4 parts) 1734111270 — not listed in this catalogue 17303B — PIPE SUB-ASSY, AIR, NO.1 (12 parts) 9099992002 — not listed in this catalogue 17303B — PIPE SUB-ASSY, AIR, NO.1 (12 parts) 9099992002 — not listed in this catalogue 9041304005 — not listed in this catalogue 23281 — VALVE, VACUUM TRANSMITTING, NO.1 (8 parts) 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9033905012 — not listed in this catalogue
MAH511A · 16 callouts, 30 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
17303B — Pipe Sub-assy, Air, NO.1
17303-11460 note Pipe Sub-assy, Air, NO.1
1994-09 → —
2E EL50 —
17303-11480 note Pipe Sub-assy, Air, NO.1
1994-09 → —
2E EL50 3FC —
17303-11500 note Pipe Sub-assy, Air, NO.1
1994-09 → 1995-08 ended
5EFE EL53 4FC —
17303-11550 note Pipe Sub-assy, Air, NO.1
1994-09 → —
2E EL50 —
17303-11690 note Pipe Sub-assy, Air, NO.1
1994-09 → —
2E EL50 —
17303-11710 note Pipe Sub-assy, Air, NO.1
1994-09 → 1995-08 ended
5EFE EL53 5F —
17303-11720 note Pipe Sub-assy, Air, NO.1
1994-09 → 1995-08 ended
5EFE EL53 4FC —
17303-11730 note Pipe Sub-assy, Air, NO.1
1994-09 → 1995-08 ended
5EFE EL53 4FC —
17303-11740 note Pipe Sub-assy, Air, NO.1
1994-09 → 1995-08 ended
5EFE EL53 5F —
17303-11750 note Pipe Sub-assy, Air, NO.1
1994-09 → 1995-08 ended
5EFE EL53 4FC —
17303-11820 Pipe Sub-assy, Air, NO.1
1995-08 → 1996-08 ended
5EFE EL53 —
17303-11870 Pipe Sub-assy, Air, NO.1
1996-08 → —
5EFE EL53 —
17343B — Hose, NO.3(FOR IDLE-UP)
17343-11090 Hose, NO.3(FOR IDLE-UP)
1994-09 → 1995-08 ended
5EFE EL53 —
17344C — Hose, NO.4(FOR IDLE-UP)
17344-11060 Hose, NO.4(FOR IDLE-UP)
1994-09 → 1995-08 ended
5EFE EL53 —
17630 — Valve Assy, Air Control
17630-11050 Valve Assy, Air Control
1994-09 → 1995-08 ended
5EFE EL53 —
17630-11060 note Valve Assy, Air Control
1994-09 → 1995-08 ended
5EFE EL53 —
17630-11070 Valve Assy, Air Control
1995-08 → —
5EFE EL53 —
17630-15030 Valve Assy, Air Control
1994-09 → —
2E EL50 —
17650 — Valve Assy, Vacuum Switching
25860-61020 Valve Assy, Vacuum Switching
1994-09 → 1995-08 ended
5EFE EL53 5F —
25860-61020 note Valve Assy, Vacuum Switching
1994-09 → 1995-08 ended
5EFE EL53 4FC —
90910-12010 note Valve Assy, Vacuum Switching
1994-09 → 1995-08 ended
5EFE EL53 4FC —
90910-12045 note Valve Assy, Vacuum Switching
1994-09 → 1995-08 ended
5EFE EL53 4FC —
17650D — Bracket, Vacuum Switching Valve
21999-11140 Bracket, Vacuum Switching Valve
1994-09 → 1995-08 ended
5EFE EL53 4FC —
21999-11150 Bracket, Vacuum Switching Valve
1994-09 → 1995-08 ended
5EFE EL53 5F —
23265 — Filter, Gas, NO.1
90917-11022 Filter, Gas, NO.1
1994-09 → 1995-03 ended
5EFE EL53 4FC —
90917-11027 Filter, Gas, NO.1
1994-09 → —
2E EL50 —
90917-11037 Filter, Gas, NO.1
1995-03 → 1995-08 ended
5EFE EL53 4FC —
90917-11037 Filter, Gas, NO.1
1995-08 → —
5EFE EL53 —
23281 — Valve, Vacuum Transmitting, NO.1
90925-01079 note Valve, Vacuum Transmitting, NO.1
1998-08 → —
2E EL50 GCC —
90925-01099 Valve, Vacuum Transmitting, NO.1
1994-09 → 1995-08 ended
5EFE EL53 4FC —
90925-01100 note Valve, Vacuum Transmitting, NO.1
1994-09 → —
2E EL50 3FC —
90925-01100 note Valve, Vacuum Transmitting, NO.1
1994-09 → —
2E EL50 5F —
90925-01101 note Valve, Vacuum Transmitting, NO.1
1994-09 → 1998-08 ended
2E EL50 5F —
90925-01101 note Valve, Vacuum Transmitting, NO.1
1994-09 → 1998-08 ended
2E EL50 3FC —
90925-01101 note Valve, Vacuum Transmitting, NO.1
1998-08 → —
2E EL50 5F GCC;2E +3 —
90925-01101 note Valve, Vacuum Transmitting, NO.1
1998-08 → —
2E EL50 5F GEN —
25760 — Hose Assy, Vacuum Transmitting
25760-11310 Hose Assy, Vacuum Transmitting
1994-09 → 1995-08 ended
5EFE EL53 4FC —
25760-11321 Hose Assy, Vacuum Transmitting
1994-09 → 1995-08 ended
5EFE EL53 5F —
25760-11370 Hose Assy, Vacuum Transmitting
1996-03 → 1996-08 ended
5EFE EL53 —
25860 — Valve Assy, Vacuum Switching, NO.1
25860-11140 Valve Assy, Vacuum Switching, NO.1
1994-09 → 1995-08 ended
5EFE EL53 5F —
25860-11220 Valve Assy, Vacuum Switching, NO.1
1994-09 → 1995-08 ended
5EFE EL53 4FC —
25860-11330 Valve Assy, Vacuum Switching, NO.1
1995-08 → 1996-08 ended
5EFE EL53 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
