Toyota Tercel

1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General

Discontinued model Data version 2000-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

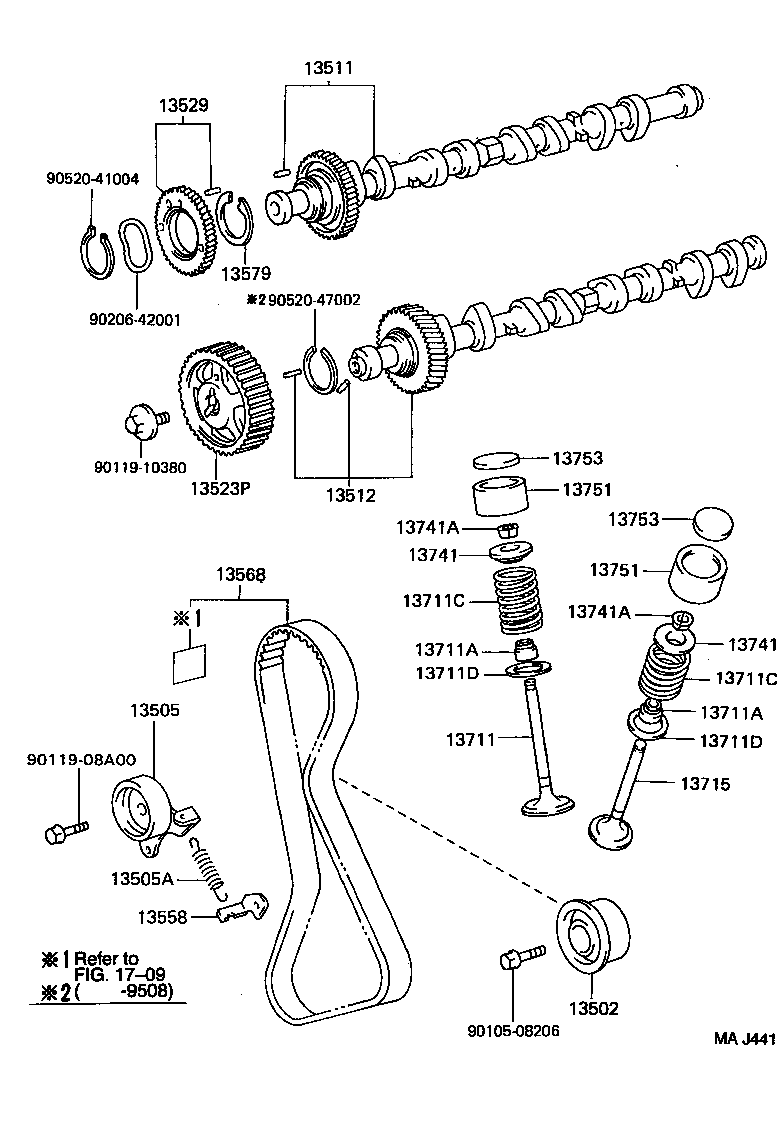

55 parts on this figure

Part number	Description	Fitment	Price
13502 — Idler Sub-assy, Timing Belt, NO.2
13503-10011	Idler Sub-assy, Timing Belt, NO.2 1994-09 → —	2E EL50	—
13503-11030	Idler Sub-assy, Timing Belt, NO.2 1994-09 → —	5EFE EL53	—
13505 — Idler Sub-assy, Timing Belt, NO.1
13505-11010	Idler Sub-assy, Timing Belt, NO.1 1994-09 → 1995-03 ended	2E EL50	—
13505-11011	Idler Sub-assy, Timing Belt, NO.1 1995-03 → —	2E EL50	—
13505-11040	Idler Sub-assy, Timing Belt, NO.1 1994-09 → —	5EFE EL53	—
13505A — Spring, Tension(FOR IDLER)
90506-15003	Spring, Tension(FOR IDLER) 1994-09 → —	5EFE EL53	—
90506-16050	Spring, Tension(FOR IDLER) 1994-09 → —	2E EL50	—
13511 — Camshaft
13501-11010	Camshaft 1994-09 → —	2E EL50	—
13501-11020	Camshaft 1994-09 → 1995-08 ended	5EFE EL53	—
13501-11050	Camshaft 1995-08 → —	5EFE EL53	—
13512 — Camshaft, NO.2
13502-11010	Camshaft, NO.2 1994-09 → 1995-08 ended	5EFE EL53	—
13502-11040	Camshaft, NO.2 1995-08 → —	5EFE EL53	—
13523P — Pulley, Camshaft Timing
13523-11020	Pulley, Camshaft Timing 1994-09 → —	5EFE EL53	—
13529 — Gear, Camshaft Sub
13529-74900	Gear, Camshaft Sub 1994-09 → —	5EFE EL53	—
13558 — Bracket, Spring(FOR IDLER)
13558-11010	Bracket, Spring(FOR IDLER) 1994-09 → —	2E EL50	—
13558-11050	Bracket, Spring(FOR IDLER) 1994-09 → —	5EFE EL53	—
13568 — Belt, Timing
13568-19025	Belt, Timing 1994-09 → —	2E EL50	—
13568-19116	Belt, Timing 1994-09 → —	5EFE EL53	—
13579 — Washer, Camshaft Timing Gear Bolt
13579-74010	Washer, Camshaft Timing Gear Bolt 1994-09 → —	5EFE EL53	—
13711 — Valve, Intake
13711-10020 note	Valve, Intake 1994-09 → —	2E EL50	—
13711-11012	Valve, Intake 1994-09 → —	5EFE EL53	—
13712-10010 note	Valve, Intake 1994-09 → —	2E EL50	—
13711A — Seal OR Ring, O(FOR VALVE STEM OIL)
90913-02081 note	Seal OR Ring, O(FOR VALVE STEM OIL) 1994-09 → —	2E EL50	—
90913-02086 note	Seal OR Ring, O(FOR VALVE STEM OIL) 1994-09 → —	5EFE EL53	—
90913-02088 note	Seal OR Ring, O(FOR VALVE STEM OIL) 1994-09 → —	5EFE EL53	—
90913-02089 note	Seal OR Ring, O(FOR VALVE STEM OIL) 1994-09 → —	2E EL50	—
13711C — Spring, Compression(FOR OUTER)
90501-25049	Spring, Compression(FOR OUTER) 1995-08 → —	5EFE EL53	—
90501-35011	Spring, Compression(FOR OUTER) 1994-09 → —	2E EL50	—
90504-34001	Spring, Compression(FOR OUTER) 1994-09 → 1995-08 ended	5EFE EL53	—
13711D — Washer, Plate(FOR VALVE SPRING SEAT)
90201-16020	Washer, Plate(FOR VALVE SPRING SEAT) 1994-09 → —	5EFE EL53	—
90201-19008	Washer, Plate(FOR VALVE SPRING SEAT) 1994-09 → —	2E EL50	—
13715 — Valve, Exhaust
13715-10030	Valve, Exhaust 1994-09 → —	2E EL50	—
13715-11030	Valve, Exhaust 1994-09 → —	5EFE EL53	—
13741 — Retainer, Valve Spring
13741-10020	Retainer, Valve Spring 1994-09 → —	2E EL50	—
13741-16010	Retainer, Valve Spring 1994-09 → —	5EFE EL53	—
13741A — Lock, Valve Spring Retainer
90913-03021	Lock, Valve Spring Retainer 1994-09 → —	2E EL50	—
90913-03021	Lock, Valve Spring Retainer 1994-09 → —	5EFE EL53	—
13751 — Lifter, Valve
13751-11010	Lifter, Valve 1994-09 → —	5EFE EL53	—
13753 — Shim, Valve Adjusting
13753-16020 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16040 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16060 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16080 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16100 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16120 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16140 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16160 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16180 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16200 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16220 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16240 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16260 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16280 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16300 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16320 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—
13753-16340 note	Shim, Valve Adjusting 1994-09 → —	5EFE EL53	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
