Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

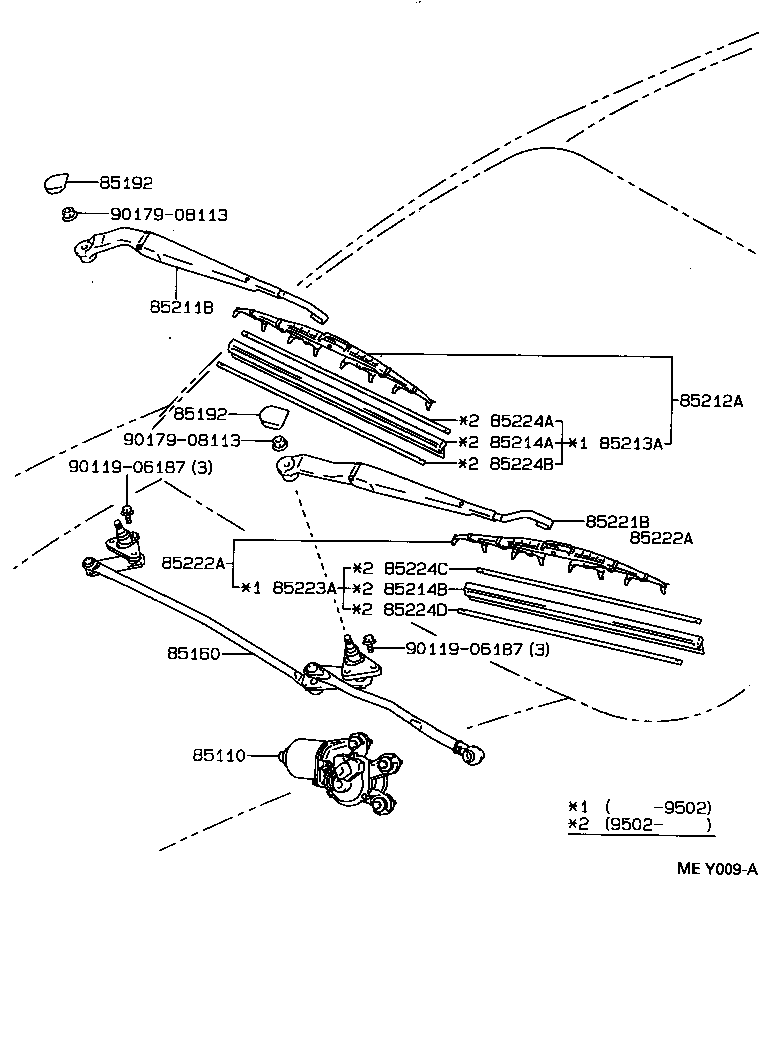

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110 — Motor Assy, Windshield Wiper | ||||
| 85110-16590 |
Motor Assy, Windshield Wiper
1994-09 → —
|
EL50 RHD | — | |
| 85110-16610 |
Motor Assy, Windshield Wiper
1994-09 → 1996-08
ended
|
EL5# LHD | — | |
| 85110-16650 |
Motor Assy, Windshield Wiper
1996-08 → —
|
EL5# LHD | — | |
| 85160 — Link Assy, Windshield Wiper | ||||
| 85150-16470 |
Link Assy, Windshield Wiper
1994-09 → —
|
EL50 RHD | — | |
| 85150-16480 |
Link Assy, Windshield Wiper
1994-09 → —
|
EL5# LHD | — | |
| 85192 — Cover, Windshield Wiper Arm | ||||
| 85292-12020 |
Cover, Windshield Wiper Arm
1994-09 → —
|
EL5# | — | |
| 85211B — Arm, Front Wiper, RH | ||||
| 85211-16100 |
Arm, Front Wiper, RH
1994-09 → —
|
EL50 RHD | — | |
| 85211-16120 |
Arm, Front Wiper, RH
1994-09 → 1996-11
ended
|
EL5# LHD | — | |
| 85211-16121 |
Arm, Front Wiper, RH
1996-11 → —
|
EL5# LHD | — | |
| 85212A — Blade, FR Wiper, RH | ||||
| 85212-16120 |
Blade, FR Wiper, RH
1996-11 → —
|
EL5# LHD | — | |
| 85212-20360 |
Blade, FR Wiper, RH
1994-09 → 1996-11
ended
|
EL5# LHD | — | |
| 85212-23070 |
Blade, FR Wiper, RH
1994-09 → —
|
EL50 RHD | — | |
| 85213A — Rubber, Wiper Blade, RH | ||||
| 85213-30250 |
Rubber, Wiper Blade, RH
1994-09 → 1995-02
ended
|
EL50 RHD | — | |
| 85223-20320 |
Rubber, Wiper Blade, RH
1994-09 → 1995-02
ended
|
EL5# LHD | — | |
| 85214A — Rubber, Wiper, RH | ||||
| 85214-20330 |
Rubber, Wiper, RH
1995-02 → —
|
EL5# LHD | — | |
| 85214-30250 |
Rubber, Wiper, RH
1995-02 → —
|
EL50 RHD | — | |
| 85214B — Rubber, Wiper, LH | ||||
| 85214-20320 |
Rubber, Wiper, LH
1995-02 → —
|
EL50 RHD | — | |
| 85214-20330 |
Rubber, Wiper, LH
1995-02 → —
|
EL5# LHD | — | |
| 85221B — Arm, Front Wiper, LH | ||||
| 85221-16140 |
Arm, Front Wiper, LH
1994-09 → —
|
EL50 RHD | — | |
| 85221-16160 |
Arm, Front Wiper, LH
1994-09 → 1996-11
ended
|
EL5# LHD | — | |
| 85221-16161 |
Arm, Front Wiper, LH
1996-11 → —
|
EL5# LHD | — | |
| 85222A — Blade, FR Wiper, LH | ||||
| 85222-1G012 |
Blade, FR Wiper, LH
1994-09 → 1996-11
ended
|
EL5# LHD | — | |
| 85222-1G080 |
Blade, FR Wiper, LH
1996-11 → —
|
EL5# LHD | — | |
| 85222-20310 |
Blade, FR Wiper, LH
1994-09 → —
|
EL50 RHD | — | |
| 85223A — Rubber, Front Wiper Blade, LH | ||||
| 85213-60020 |
Rubber, Front Wiper Blade, LH
1994-09 → 1995-02
ended
|
EL5# LHD | — | |
| 85223-20310 |
Rubber, Front Wiper Blade, LH
1994-09 → 1995-02
ended
|
EL50 RHD | — | |
| 85224A — Plate, Wiper Rubber Backing, NO.1 | ||||
| 85224-30380 |
Plate, Wiper Rubber Backing, NO.1
1995-02 → —
|
EL50 RHD | — | |
| 85224-60050 |
Plate, Wiper Rubber Backing, NO.1
1995-02 → —
|
EL5# LHD | — | |
| 85224B — Plate, Wiper Rubber Backing, NO.2 | ||||
| 85224-30380 |
Plate, Wiper Rubber Backing, NO.2
1995-02 → —
|
EL50 RHD | — | |
| 85224-60050 |
Plate, Wiper Rubber Backing, NO.2
1995-02 → —
|
EL5# LHD | — | |
| 85224C — Plate, Wiper Rubber Backing, NO.3 | ||||
| 85224-60050 |
Plate, Wiper Rubber Backing, NO.3
1995-02 → —
|
EL50 RHD | — | |
| 85224-60060 |
Plate, Wiper Rubber Backing, NO.3
1995-02 → —
|
EL5# LHD | — | |
| 85224D — Plate, Wiper Rubber Backing, NO.4 | ||||
| 85224-60050 |
Plate, Wiper Rubber Backing, NO.4
1995-02 → —
|
EL50 RHD | — | |
| 85224-60060 |
Plate, Wiper Rubber Backing, NO.4
1995-02 → —
|
EL5# LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
