Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

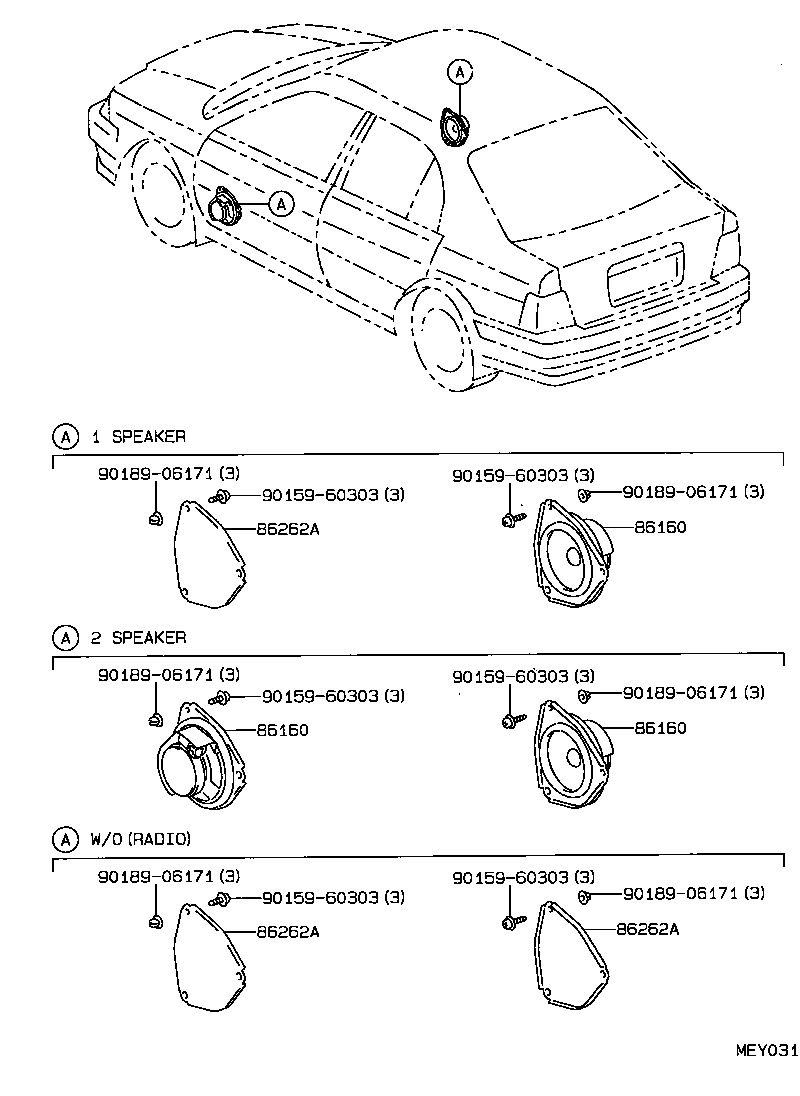

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-16280 |
Speaker Assy, Front NO.1
1994-09 → —
|
EL5# | — | |
| 86160-16280 note |
Speaker Assy, Front NO.1
1994-09 → —
|
EL5# | — | |
| 86262A — Cover, Speaker, Front | ||||
| 86262-16010 |
Cover, Speaker, Front
1994-09 → 1996-08
ended
|
EL5# | — | |
| 86262-16010 note |
Cover, Speaker, Front
1994-09 → 1996-08
ended
|
EL5# | — | |
| 86262-16030 |
Cover, Speaker, Front
1996-08 → —
|
EL5# | — | |
| 86262-16030 note |
Cover, Speaker, Front
1996-08 → —
|
EL5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
