Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

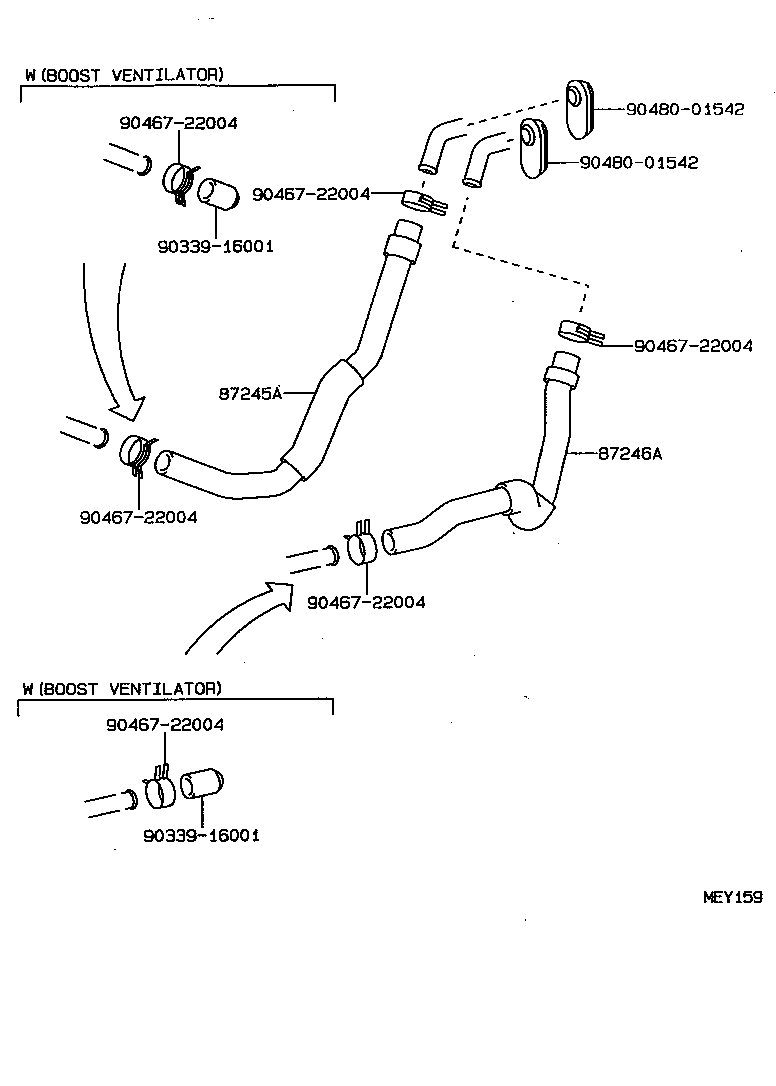

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87245A — Hose, Heater Water, Inlet A | ||||
| 87245-16280 |
Hose, Heater Water, Inlet A
1994-09 → 1995-08
ended
|
EL5# LHD | — | |
| 87245-16280 |
Hose, Heater Water, Inlet A
1995-08 → —
|
EL50 LHD | — | |
| 87245-16380 |
Hose, Heater Water, Inlet A
1994-09 → 1995-08
ended
|
EL50 RHD | — | |
| 87245-16381 |
Hose, Heater Water, Inlet A
1995-08 → —
|
EL50 RHD | — | |
| 87245-16400 |
Hose, Heater Water, Inlet A
1995-08 → —
|
EL53 | — | |
| 87246A — Hose, Heater Water, Outlet A | ||||
| 87245-16340 |
Hose, Heater Water, Outlet A
1994-09 → 1995-08
ended
|
EL53 | — | |
| 87245-16370 |
Hose, Heater Water, Outlet A
1994-09 → —
|
EL50 LHD | — | |
| 87245-16390 |
Hose, Heater Water, Outlet A
1994-09 → —
|
EL50 RHD | — | |
| 87245-16411 |
Hose, Heater Water, Outlet A
1995-08 → —
|
EL53 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
