Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

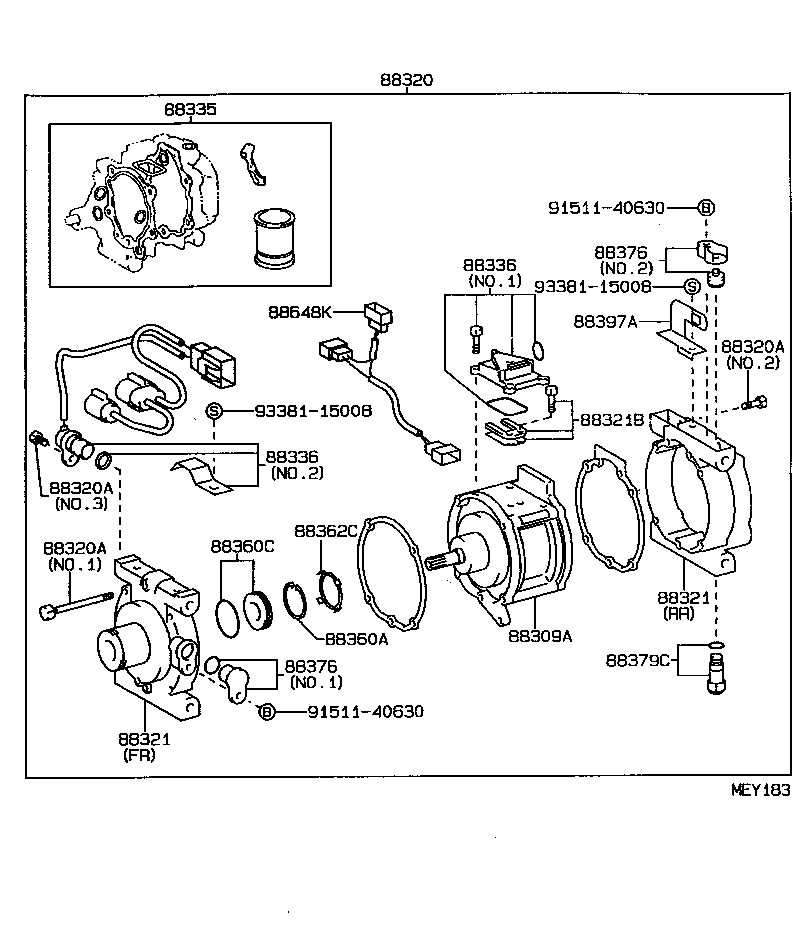

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88309A — Pump Sub-assy, Compressor | ||||
| 88309-12080 |
Pump Sub-assy, Compressor
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 88309-12110 |
Pump Sub-assy, Compressor
1994-09 → 1996-08
ended
|
EL50 GCC | — | |
| 88320 — Compressor Assy, Cooler | ||||
| 88320-10520 |
Compressor Assy, Cooler
1996-08 → 1997-10
ended
|
EL5# GEN | — | |
| 88320-10521 |
Compressor Assy, Cooler
1997-10 → 1997-12
ended
|
EL5# GEN | — | |
| 88320-10521 |
Compressor Assy, Cooler
1997-12 → —
|
EL50 RHD;EL50 LHD 5F +1 | — | |
| 88320-10530 note |
Compressor Assy, Cooler
1996-08 → 1997-10
ended
|
EL50 GCC | — | |
| 88320-10531 note |
Compressor Assy, Cooler
1997-10 → —
|
EL50 GCC | — | |
| 88320-10540 |
Compressor Assy, Cooler
1996-08 → 1997-10
ended
|
EL50 GCC | — | |
| 88320-10541 |
Compressor Assy, Cooler
1997-10 → —
|
EL50 GCC | — | |
| 88320-10550 note |
Compressor Assy, Cooler
1996-08 → 1997-10
ended
|
EL5# GEN | — | |
| 88320-10551 note |
Compressor Assy, Cooler
1997-10 → —
|
EL5# GEN | — | |
| 88320-16390 note |
Compressor Assy, Cooler
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 88320-16400 |
Compressor Assy, Cooler
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 88320-16410 note |
Compressor Assy, Cooler
1994-09 → 1996-08
ended
|
EL50 GCC | — | |
| 88320-16420 |
Compressor Assy, Cooler
1994-09 → 1996-08
ended
|
EL50 GCC | — | |
| 88320A — Bolt, Through | ||||
| 88329-10010 note |
Bolt, Through
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 88329-10020 note |
Bolt, Through
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 88329-16010 note |
Bolt, Through
1994-09 → 1996-08
ended
|
EL50 GCC | — | |
| 88329-16020 note |
Bolt, Through
1994-09 → 1996-08
ended
|
EL50 GCC | — | |
| 88329-16030 note |
Bolt, Through
1994-09 → 1996-08
ended
|
EL5# | — | |
| 88321 — Head, Cooler Compressor Cylinder | ||||
| 88321-12081 note |
Head, Cooler Compressor Cylinder
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 88321-12091 note |
Head, Cooler Compressor Cylinder
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 88321-12130 note |
Head, Cooler Compressor Cylinder
1994-09 → 1996-08
ended
|
EL50 GCC | — | |
| 88321-12140 note |
Head, Cooler Compressor Cylinder
1994-09 → 1996-08
ended
|
EL50 GCC | — | |
| 88322-10060 |
Head, Cooler Compressor Cylinder
1996-08 → —
|
EL5# GEN | — | |
| 88322-12080 note |
Head, Cooler Compressor Cylinder
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 88322-12100 note |
Head, Cooler Compressor Cylinder
1994-09 → 1996-08
ended
|
EL50 GCC | — | |
| 88322-16070 |
Head, Cooler Compressor Cylinder
1996-08 → —
|
EL50 GCC | — | |
| 88321B — Reed Sub-assy, Valve | ||||
| 88307-10010 |
Reed Sub-assy, Valve
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 88307-12050 |
Reed Sub-assy, Valve
1994-09 → 1996-08
ended
|
EL50 GCC | — | |
| 88335 — Gasket Kit, Overhaul | ||||
| 88335-10080 |
Gasket Kit, Overhaul
1996-08 → —
|
EL5# | — | |
| 88335-12070 |
Gasket Kit, Overhaul
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 88335-12110 |
Gasket Kit, Overhaul
1994-09 → 1996-08
ended
|
EL50 GCC | — | |
| 88336 — Sensor, Compressor | ||||
| 88336-10020 note |
Sensor, Compressor
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 88336-12090 note |
Sensor, Compressor
1994-09 → 1996-08
ended
|
EL5# | — | |
| 88336-16010 note |
Sensor, Compressor
1994-09 → 1996-08
ended
|
EL50 GCC | — | |
| 88360A — Ring, Compressor Seal Plate Snap | ||||
| 90096-90022 |
Ring, Compressor Seal Plate Snap
1994-09 → 1996-08
ended
|
EL5# | — | |
| 90096-90034 |
Ring, Compressor Seal Plate Snap
1996-08 → —
|
EL5# | — | |
| 88360C — Seal Assy, Shaft | ||||
| 88360-10030 |
Seal Assy, Shaft
1996-08 → —
|
EL5# | — | |
| 88360-12090 |
Seal Assy, Shaft
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 88360-12100 |
Seal Assy, Shaft
1994-09 → 1996-08
ended
|
EL50 GCC | — | |
| 88362C — Plate, Pulse | ||||
| 88362-12010 |
Plate, Pulse
1994-09 → 1996-08
ended
|
EL5# GEN | — | |
| 88362-12020 |
Plate, Pulse
1994-09 → 1996-08
ended
|
EL50 GCC | — | |
| 88376 — Cap, Blind | ||||
| 88376-10040 note |
Cap, Blind
1996-08 → —
|
EL5# | — | |
| 88376-12010 note |
Cap, Blind
1994-09 → 1996-08
ended
|
EL5# | — | |
| 88376-12020 note |
Cap, Blind
1994-09 → 1996-08
ended
|
EL5# | — | |
| 88376-12020 note |
Cap, Blind
1996-08 → —
|
EL5# | — | |
| 88379C — Valve, Pressure Relief | ||||
| 88379-12050 |
Valve, Pressure Relief
1994-09 → 1996-08
ended
|
EL5# | — | |
| 88397A — Clip, Compressor | ||||
| 88397-16040 |
Clip, Compressor
1994-09 → 1996-08
ended
|
EL5# | — | |
| 88397-16050 |
Clip, Compressor
1996-08 → —
|
EL50 GEN | — | |
| 88397-16050 note |
Clip, Compressor
1996-08 → —
|
EL53 | — | |
| 88397-16060 |
Clip, Compressor
1996-08 → 1997-12
ended
|
EL50 GCC | — | |
| 88397-16060 |
Clip, Compressor
1997-12 → —
|
EL53;EL50 GCC | — | |
| 88648K — Wire Sub-assy, Sensor | ||||
| 88648-12600 |
Wire Sub-assy, Sensor
1994-09 → 1996-08
ended
|
EL5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
