Toyota Yaris

2006-01 → 2016-07 · chassis NCP9# · catalogue 141370 · General

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 2 illustrations

Illustrations

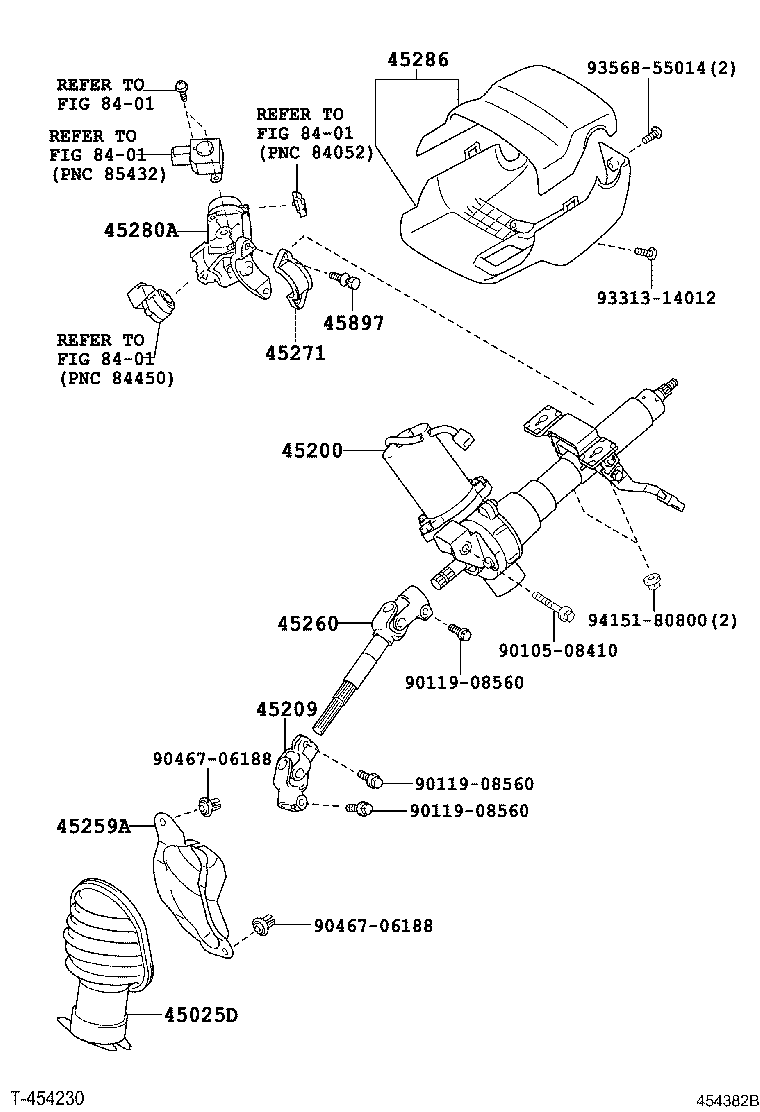

Figure 454381B 454381B 2006-01 → — Figure 454382B 454382B 2006-01 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45200 Post Assy, Steering
45209 Yoke Sub-assy, Steering Sliding
45255 Plate, Steering Column Hole Cover
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45874B Protector, Steering Column, NO.1
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
