Toyota Yaris

2006-01 → 2016-07 · chassis NCP9# · catalogue 141370 · General

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

20 part groups · 9 illustrations

Illustrations

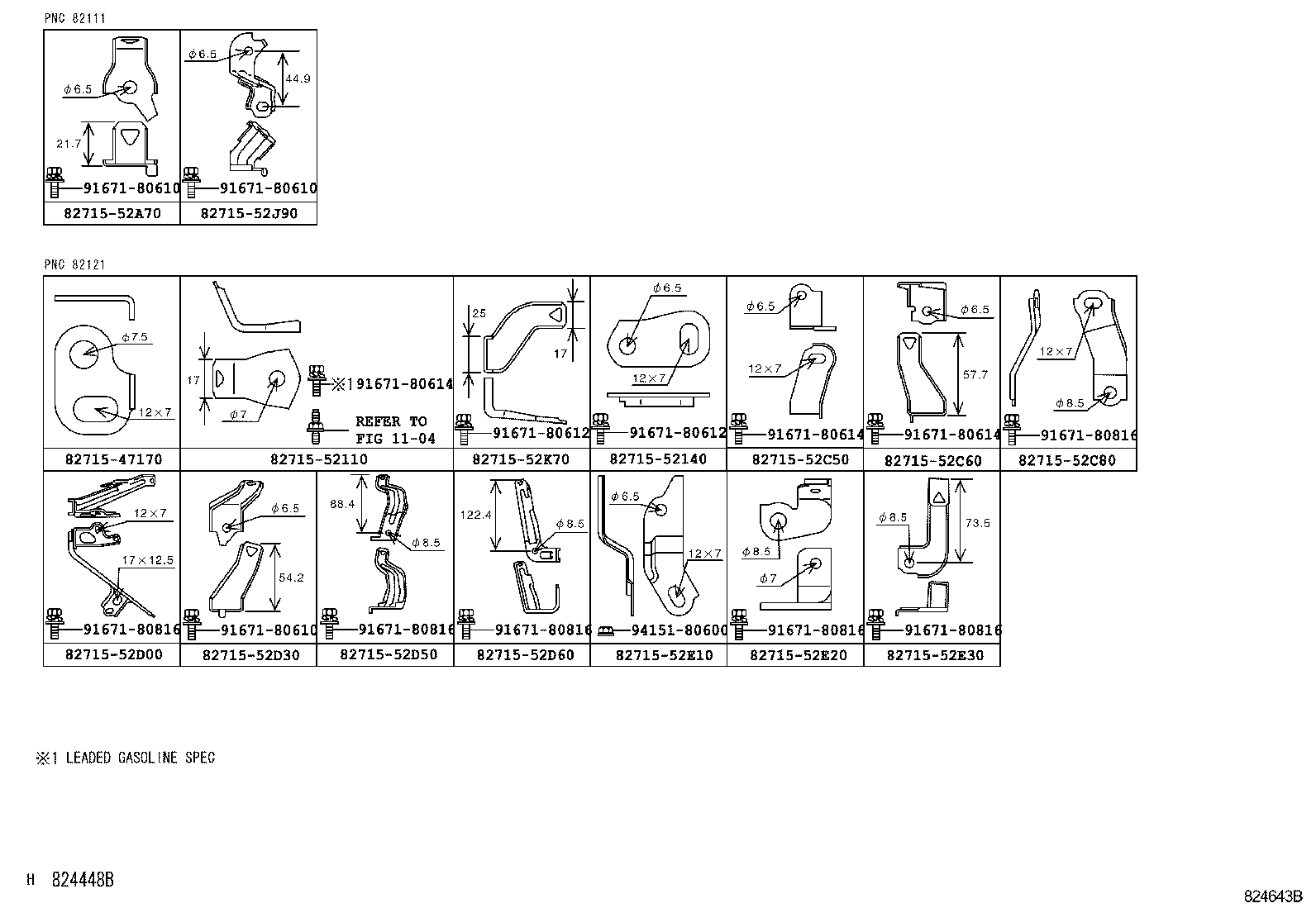

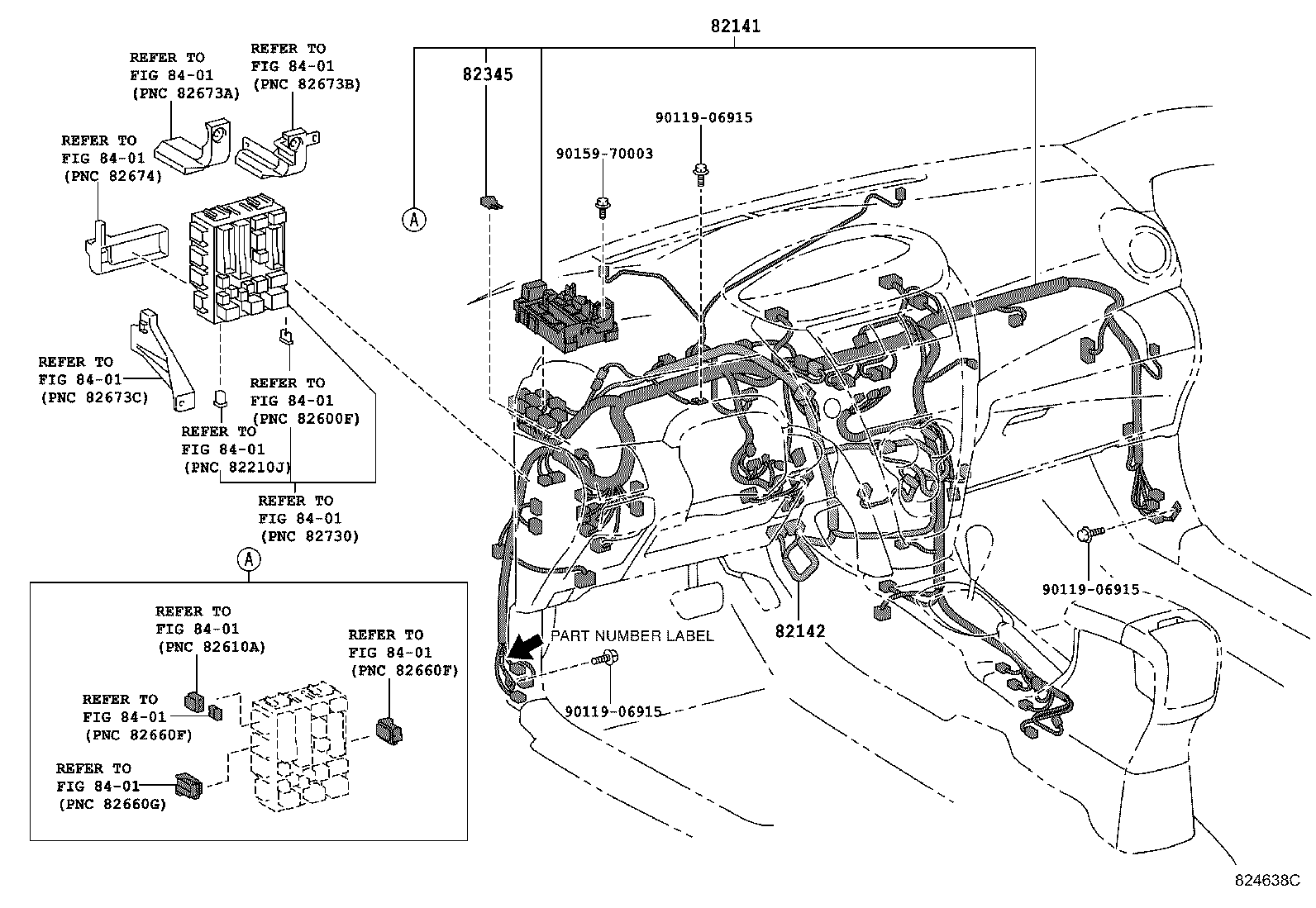

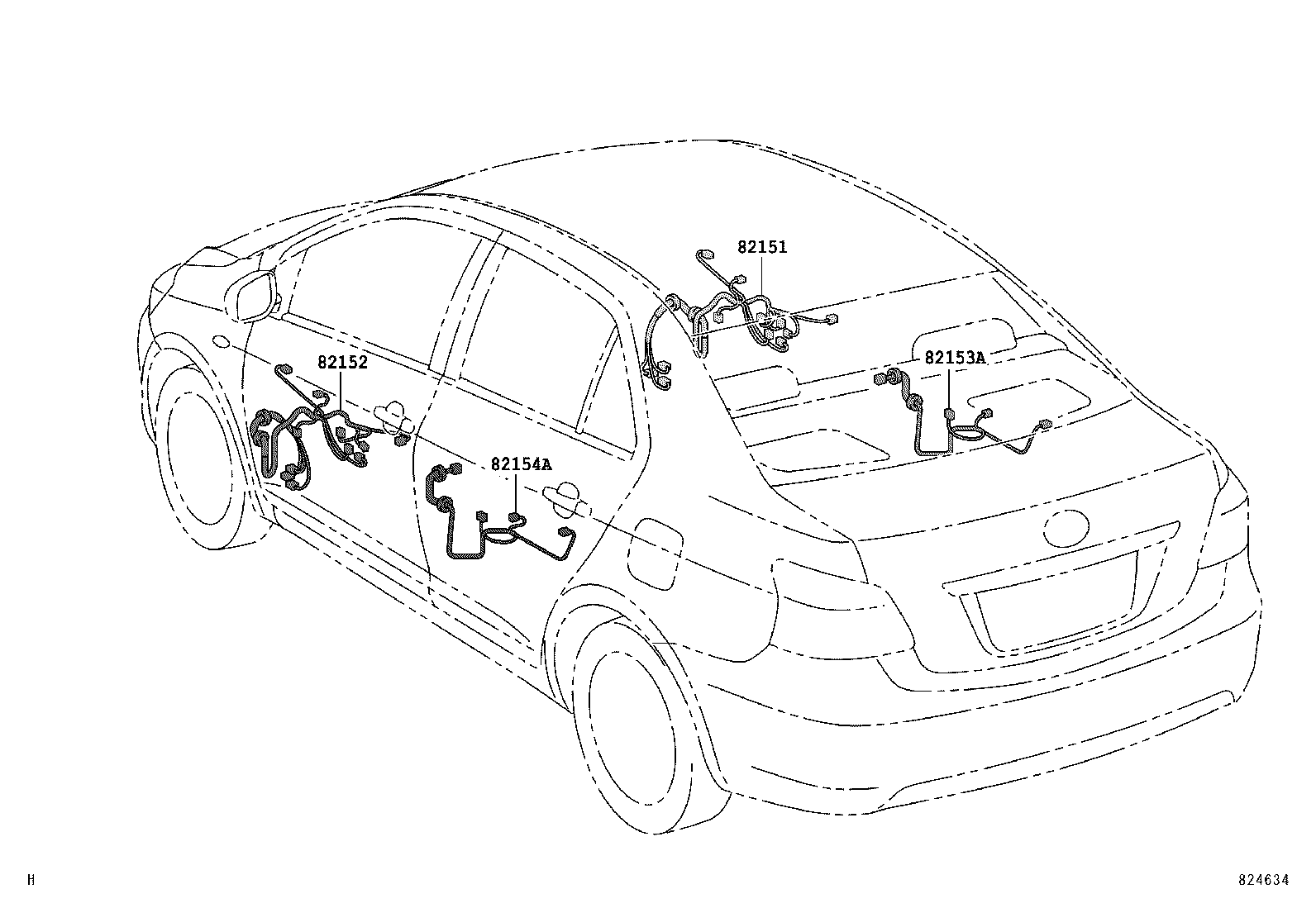

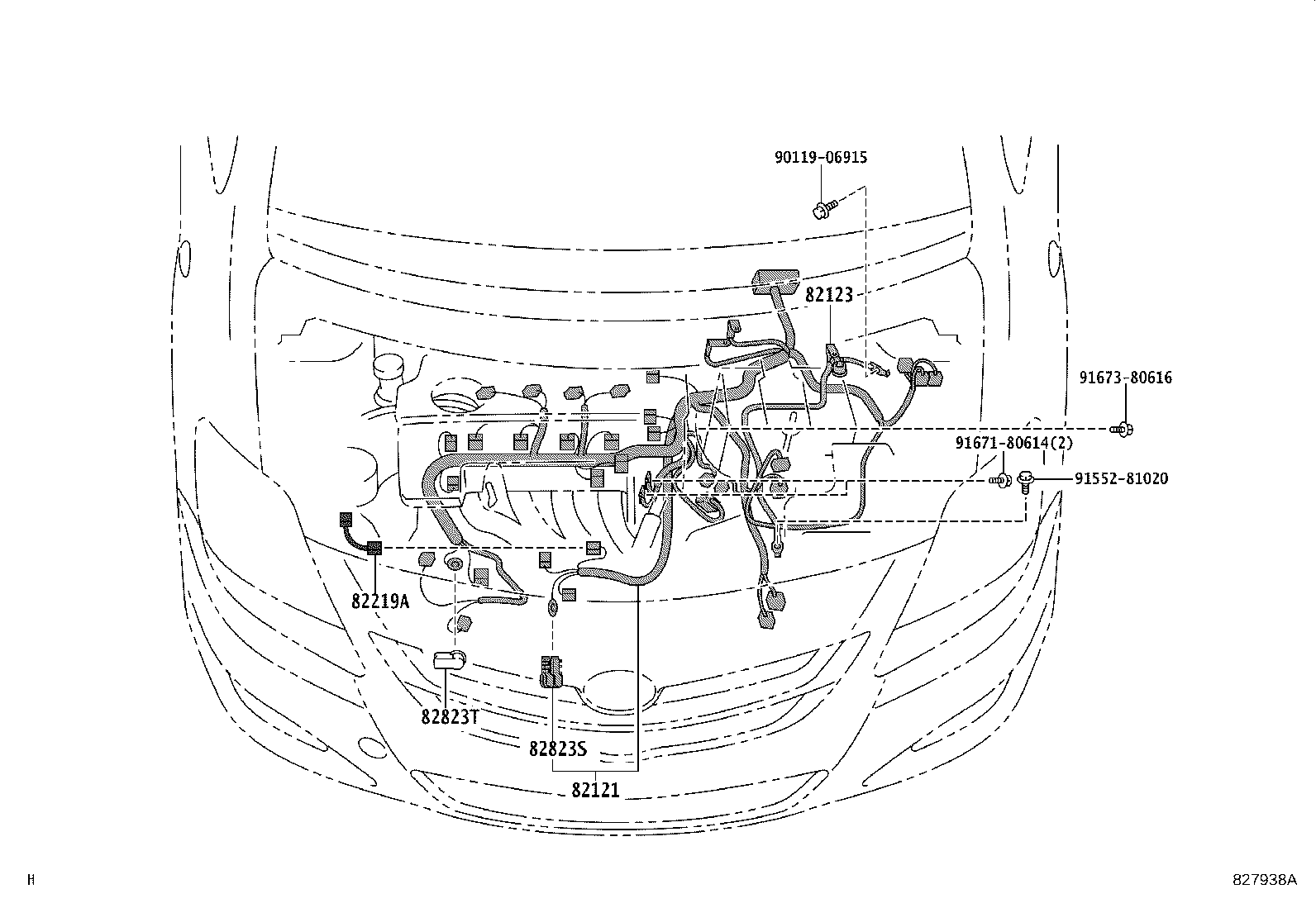

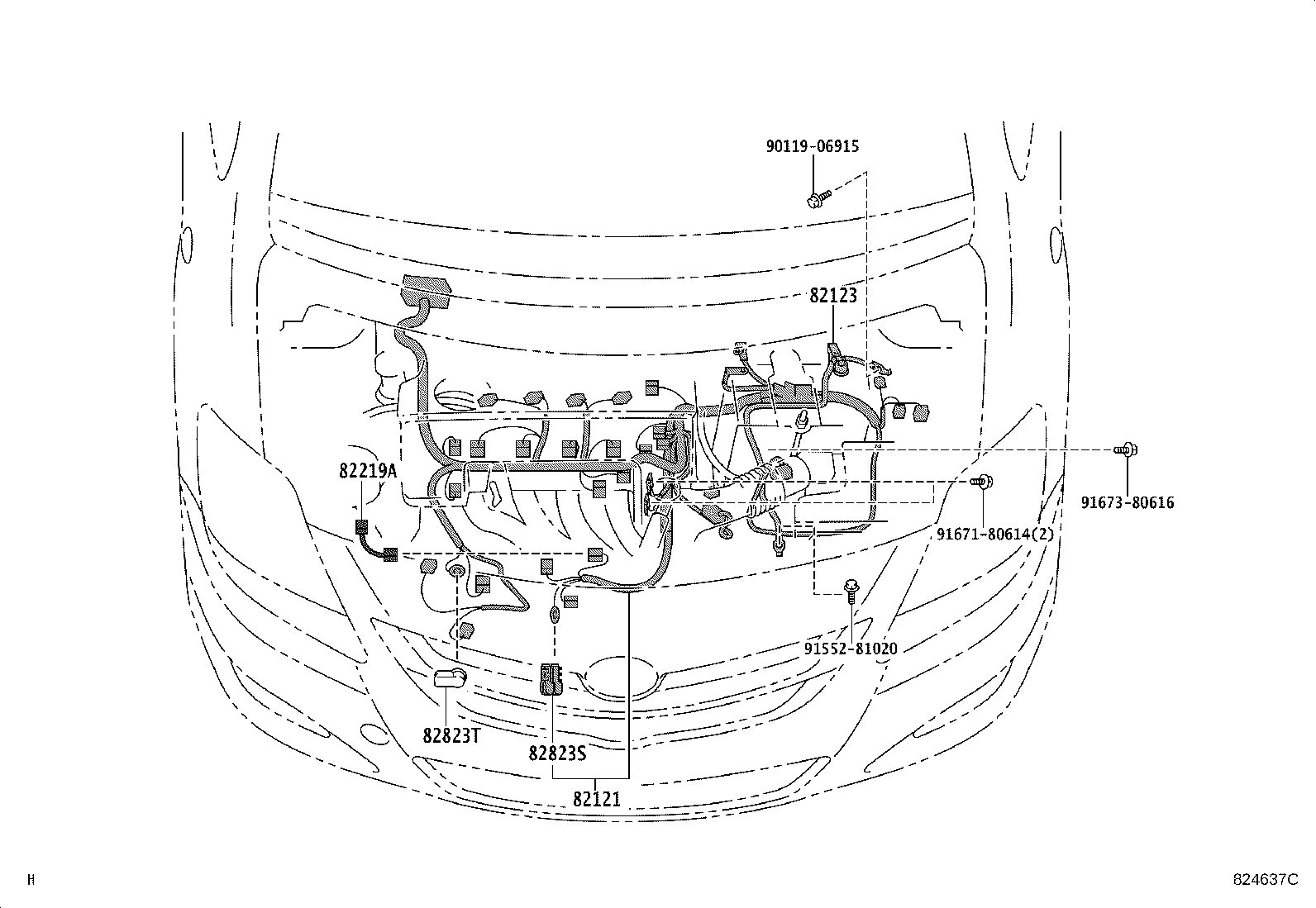

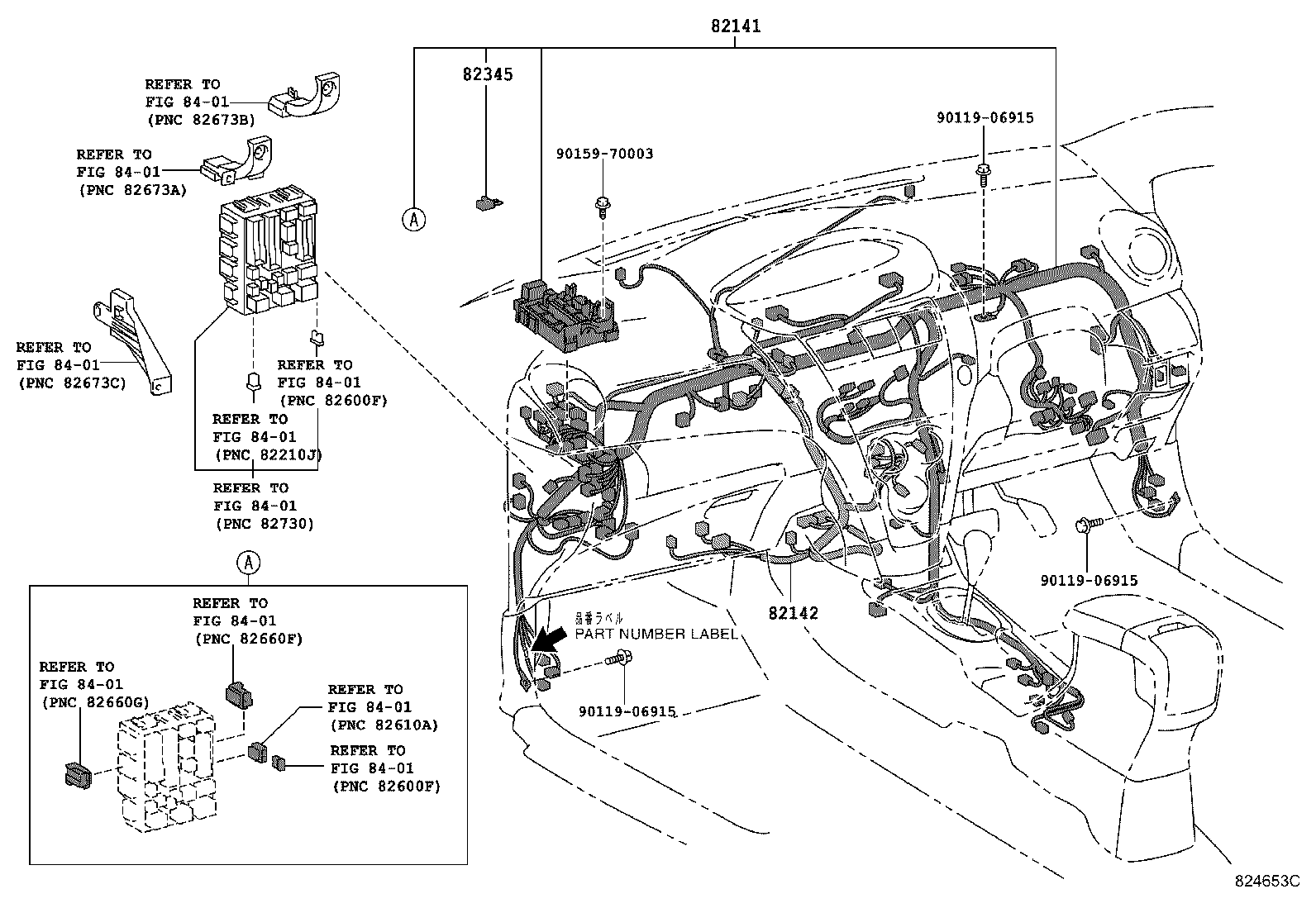

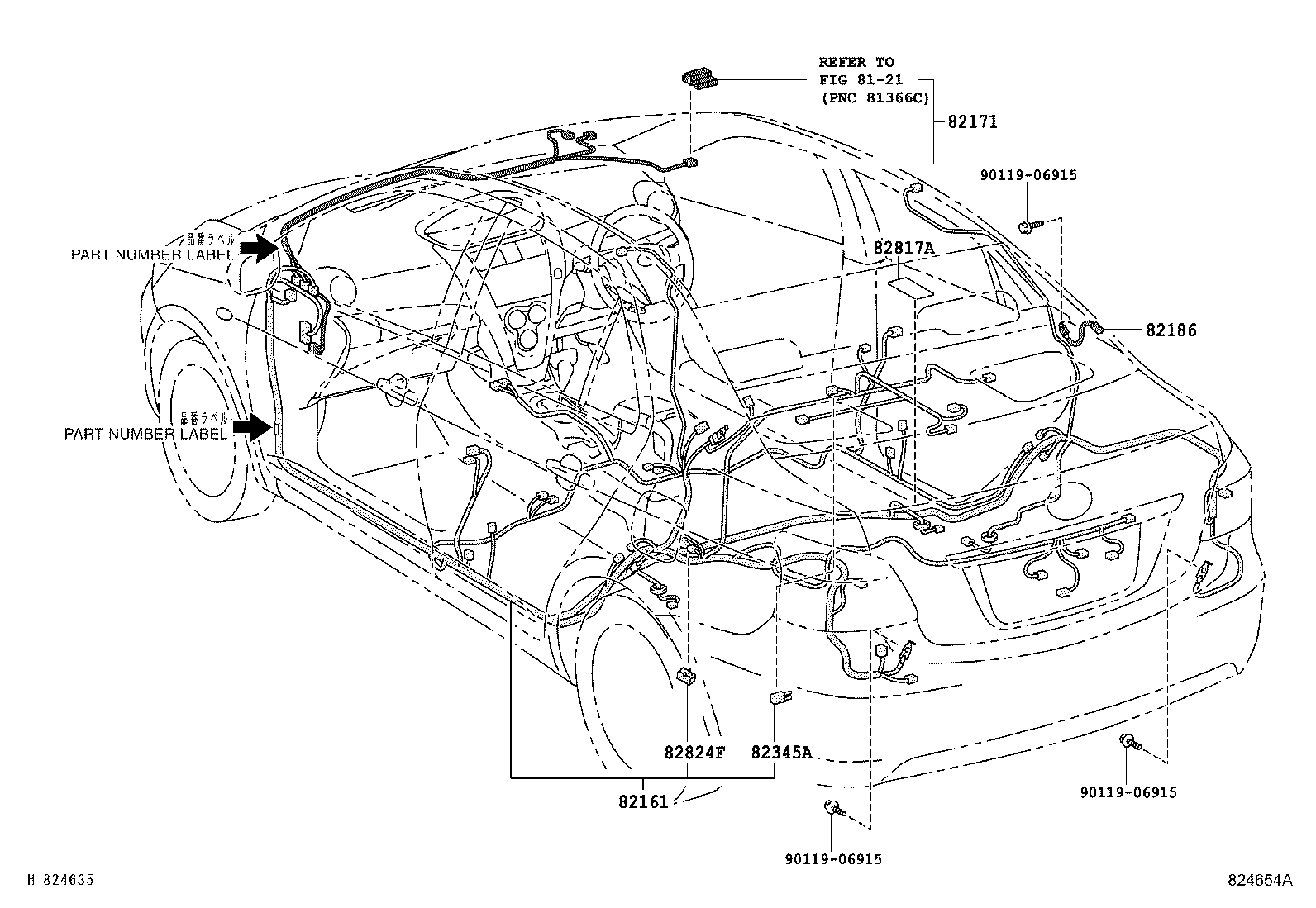

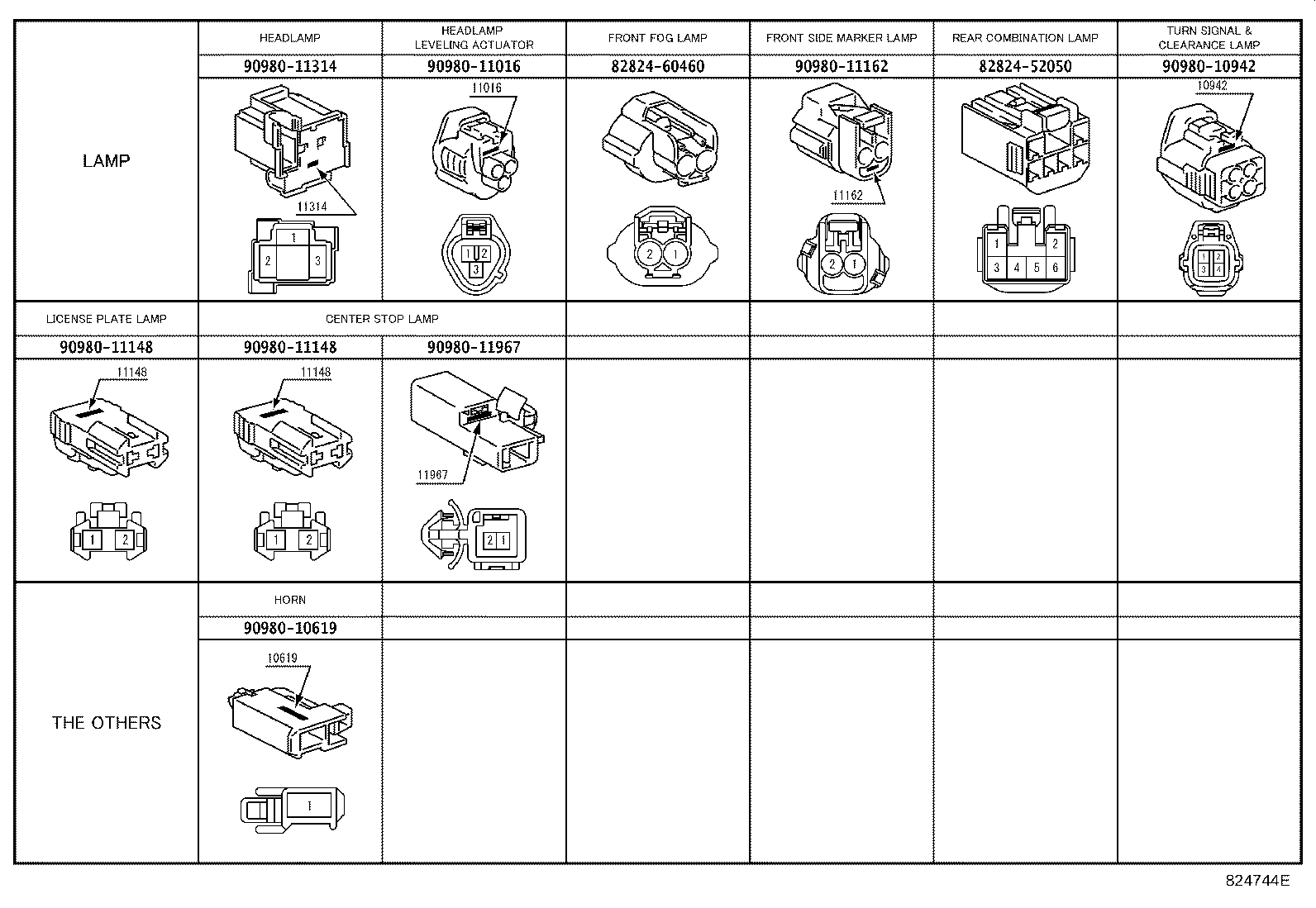

Figure 824636B 824636B 2006-01 → — Figure 827938A 827938A 2006-01 → — Figure 824637C 824637C 2006-01 → — Figure 824653C 824653C 2006-01 → — Figure 824638C 824638C 2006-01 → — Figure 824634 824634 2006-01 → — Figure 824654A 824654A 2006-01 → — Figure 824643B 824643B 2006-01 → — Figure 824744E 824744E 2006-01 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82186 Wire, Rear Window, NO.1
82219A Wire, Sensor
82345 Diode
82345A Diode
82817A Protector, Wiring Harness, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824F Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
