Toyota Yaris

2006-01 → 2016-07 · chassis NCP9# · catalogue 141370 · General

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

5 part groups · 2 illustrations

Illustrations

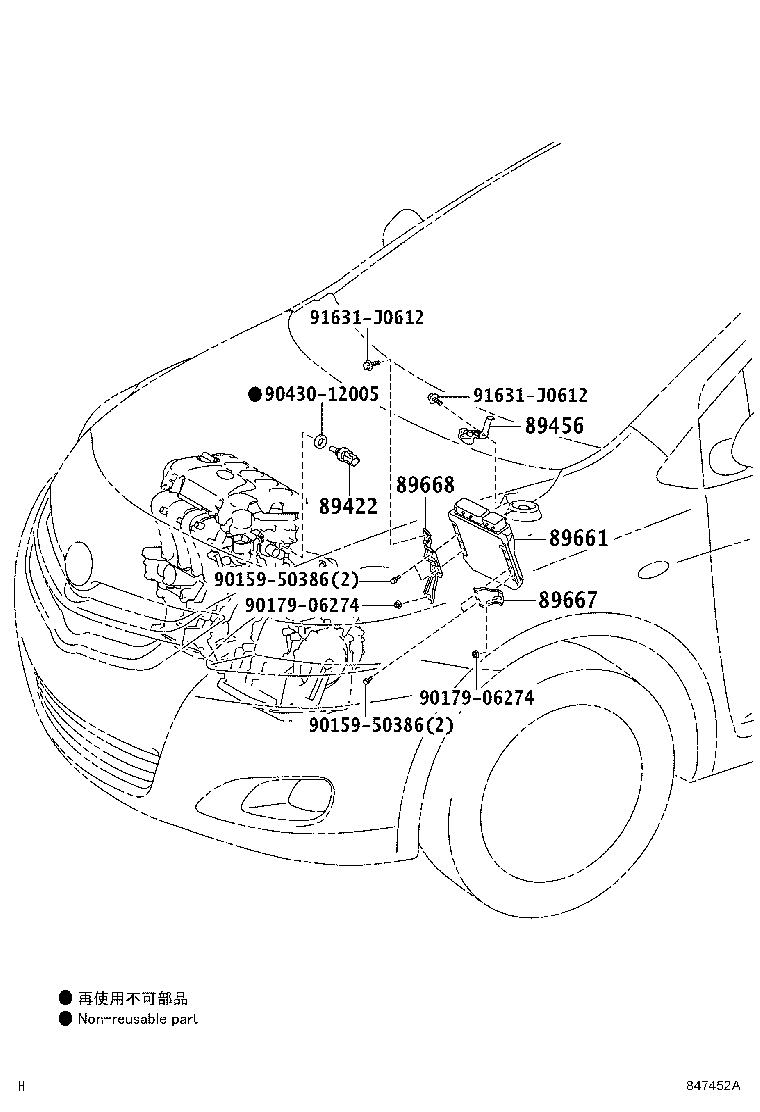

Figure 847451A 847451A 2006-01 → — Figure 847452A 847452A 2006-01 → —

Part groups

PNCDescription
89422 Sensor, Water Temperature (FOR E.F.I.)
89456 Resistor, Variable
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
