Toyota Yaris

2006-01 → 2016-07 · chassis NCP9# · catalogue 141370 · General

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

7 part groups · 3 illustrations

Illustrations

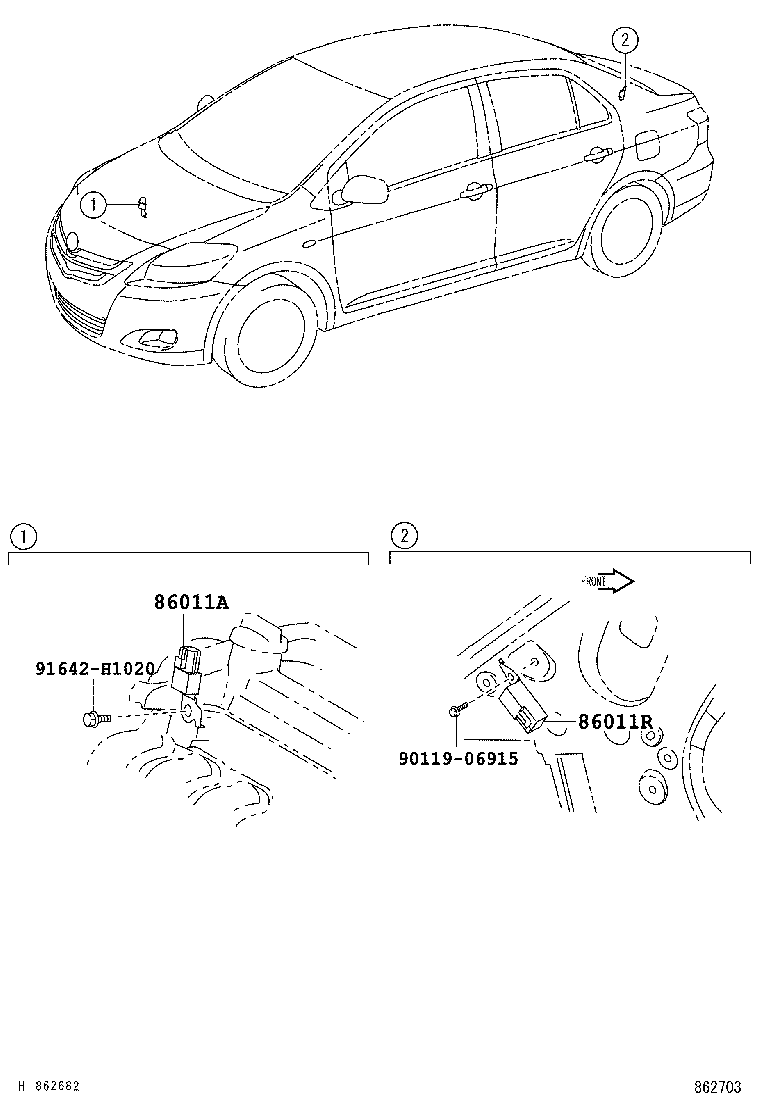

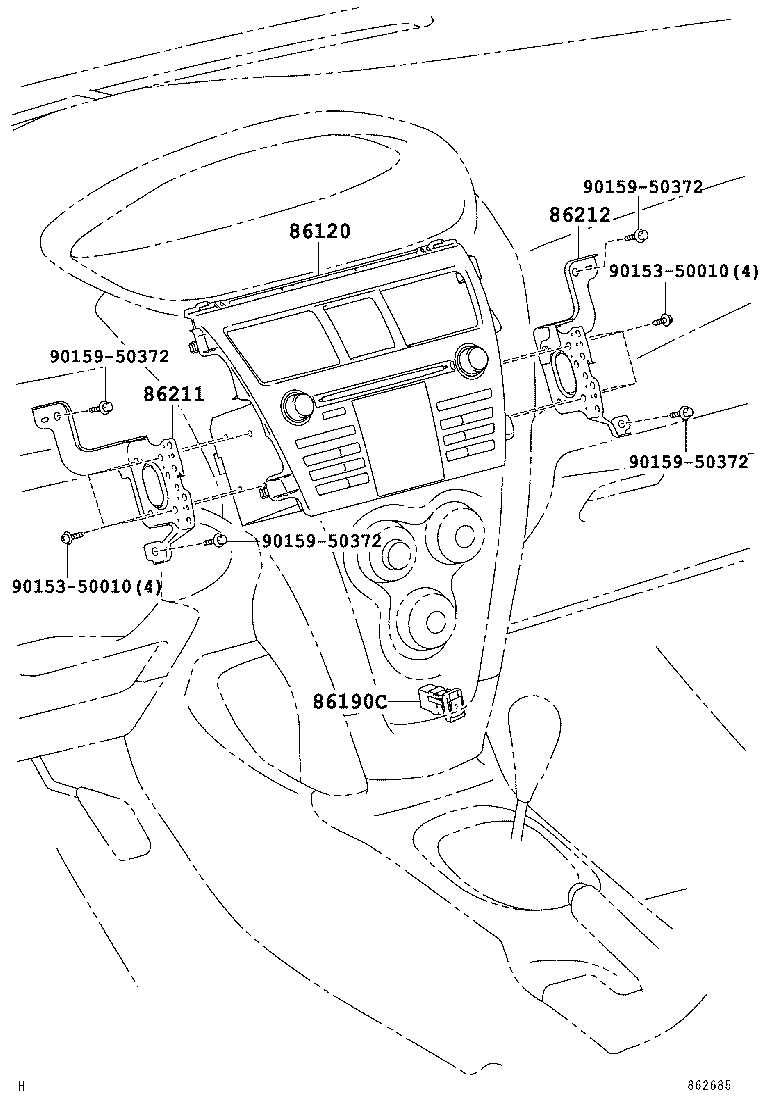

Figure 862683A 862683A 2006-01 → — Figure 862685 862685 2010-08 → — Figure 862703 862703 2006-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011R Condenser, Radio Setting
86120 Receiver Assy, Radio
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221D Panel, Radio Receiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
