Toyota Paseo
1991-04 → 1995-08 · chassis EL44 · catalogue 144310 · General
Discontinued model
Data version 1996-03

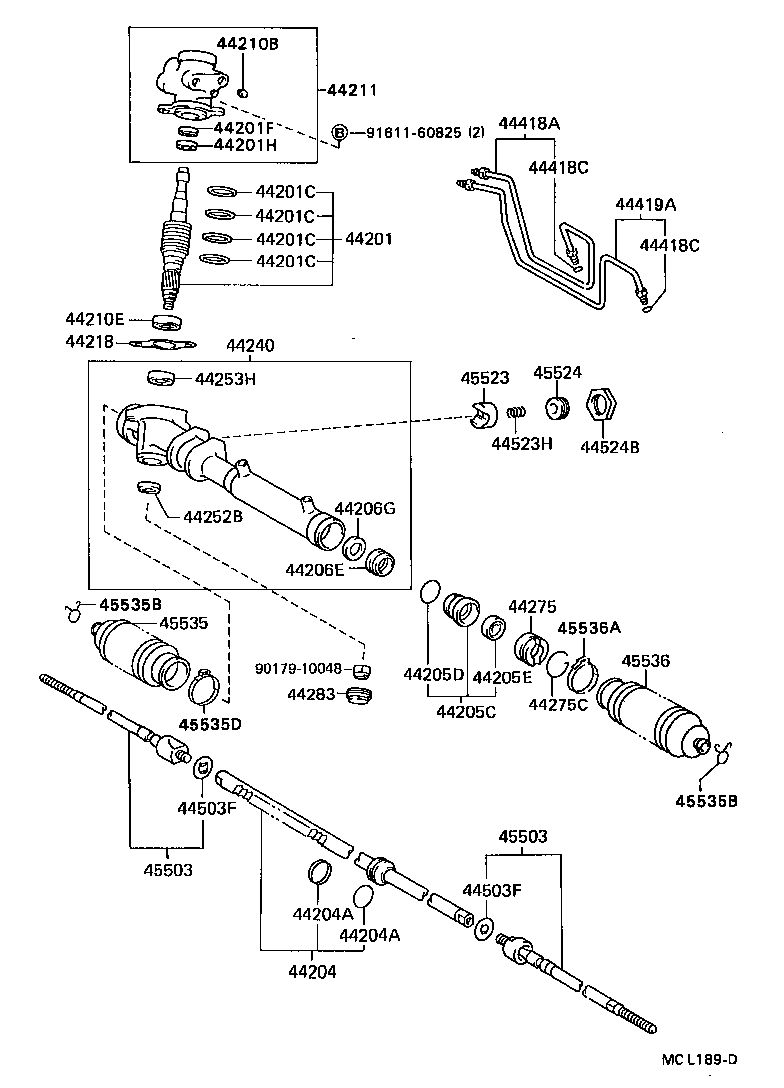

Front Steering Gear & Link
45 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04445A | Gasket Kit, Power Steering Gear(FOR RACK & PINION) |
| 04455 | Gasket Kit, Power Steering Control Valve Overhole |
| 44201 | Valve Sub-assy, Power Steering Control |
| 44201C | Ring(FOR POWER STEERING CONTROL VALVE) |
| 44201F | Seal, Oil(FOR POWER STEERING CONTROL VALVE) |
| 44201H | Bearing(FOR POWER STEERING CONTROL VALVE UPPER) |
| 44204 | Rack Sub-assy, Power Steering |
| 44204A | Ring(FOR RACK STEERING PISTON) |
| 44205C | Bush Sub-assy, Power Steering Rack |
| 44205D | Ring, O(FOR POWER STEERING RACK BUSH) |
| 44205E | Seal, Oil(FOR POWER STEERING RACK BUSH) |
| 44206E | Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE) |
| 44206G | Spacer, NO.1(FOR POWER STEERING CYLINDER TUBE) |
| 44210B | Seat, Union(FOR POWER STEERING CONTROL VALVE) |
| 44210E | Seal, Oil(FOR POWER STEERING CONTROL VALVE) |
| 44211 | Housing, Control Valve |
| 44218 | Gasket, Valve Housing |
| 44240 | Housing Assy, Power Steering Rack |
| 44250 | Gear Assy, Power Steering(FOR RACK & PINION) |
| 44252B | Bearing(FOR POWER STEERING PINION) |
| 44253H | Bearing, NO.1(FOR POWER STEERING RACK HOUSING) |
| 44275 | Stopper, Cylinder End |
| 44275C | Wire(FOR CYLINDER END STOPPER) |
| 44283 | Cap, Rack Housing |
| 44418A | Tube, Steering Right Turn Pressure |
| 44418C | Ring, O(FOR STEERING TURN PRESSURE TUBE) |
| 44419A | Tube, Steering Left Turn Pressure |
| 44503F | Washer, Claw(FOR POWER STEERING RACK END) |
| 44523H | Spring(FOR POWER STEERING RACK GUIDE) |
| 44524B | Nut(FOR POWER STEERING RACK GUIDE CAP) |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45503 | End Sub-assy, Steering Rack |
| 45514 | Bracket, Steering Rack Housing, NO.1 |
| 45515 | Bracket, Steering Rack Housing, NO.2 |
| 45516 | Grommet, Steering Rack Housing, NO.1 |
| 45517 | Grommet, Steering Rack Housing, NO.2 |
| 45523 | Guide, Rack(FOR STEERING GEAR) |
| 45524 | Cap, Steering Rack Guide Spring |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45535D | Clamp(FOR STEERING RACK BOOT NO.1) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45536A | Clamp(FOR STEERING RACK BOOT NO.2) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
