Toyota Paseo

1991-04 → 1995-08 · chassis EL44 · catalogue 144310 · General

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

23 part groups · 6 illustrations

Illustrations

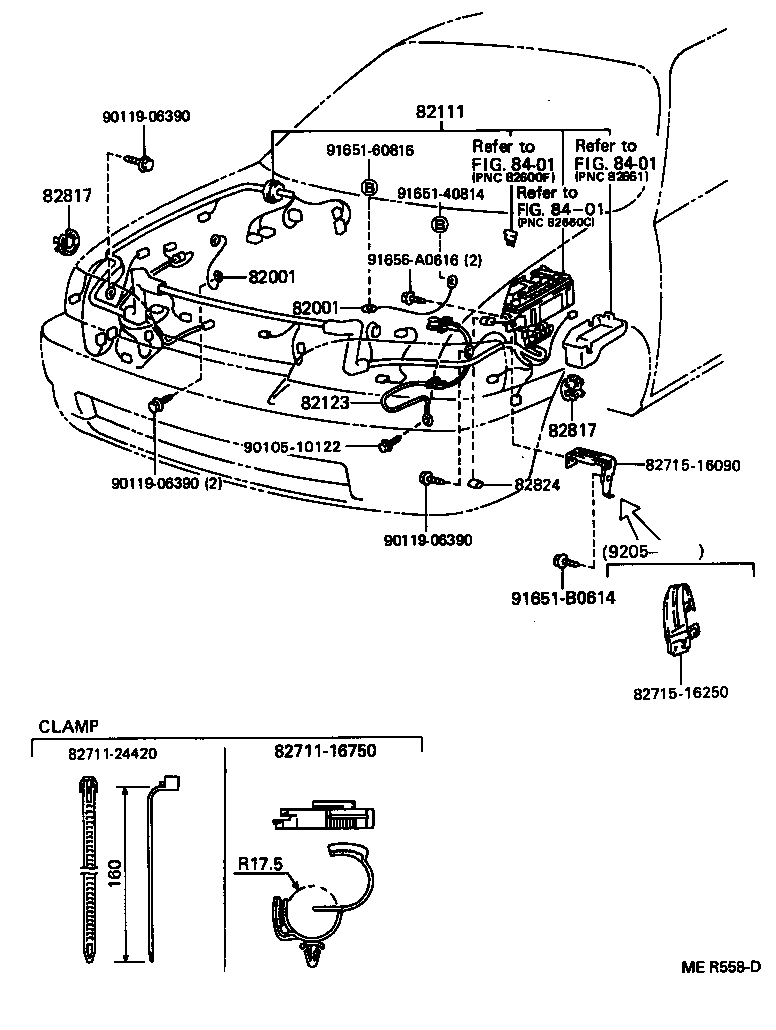

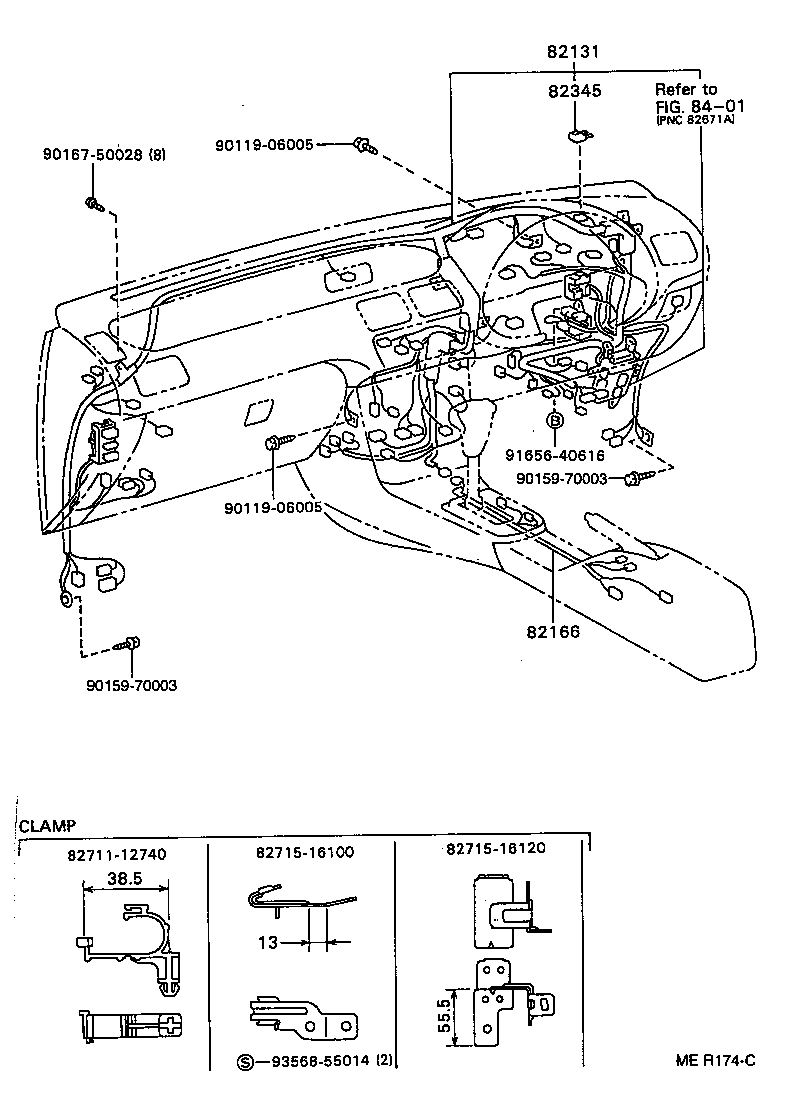

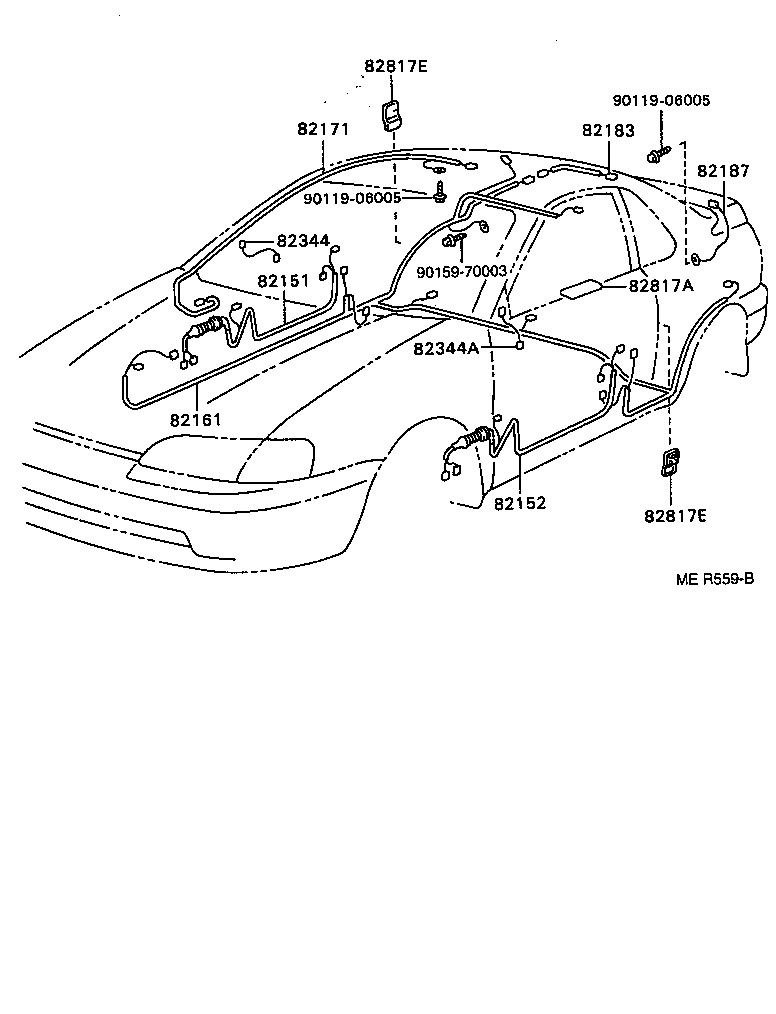

Figure MER557D MER557D 1991-04 → — Figure MER558D MER558D 1991-04 → — Figure MER174C MER174C 1991-04 → — Figure MER559B MER559B 1991-04 → — Figure MER184 MER184 1991-04 → — Figure MEW041 MEW041 1992-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82183 Wire, Luggage Room, NO.3
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82344 Wire, Mirror, RH
82344A Wire, Mirror, LH
82345 Diode
82620 Block Assy, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817E Protector, Wiring Harness, NO.6
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
