Toyota Paseo

1991-04 → 1995-08 · chassis EL44 · catalogue 144310 · General

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

59 part groups · 8 illustrations

Illustrations

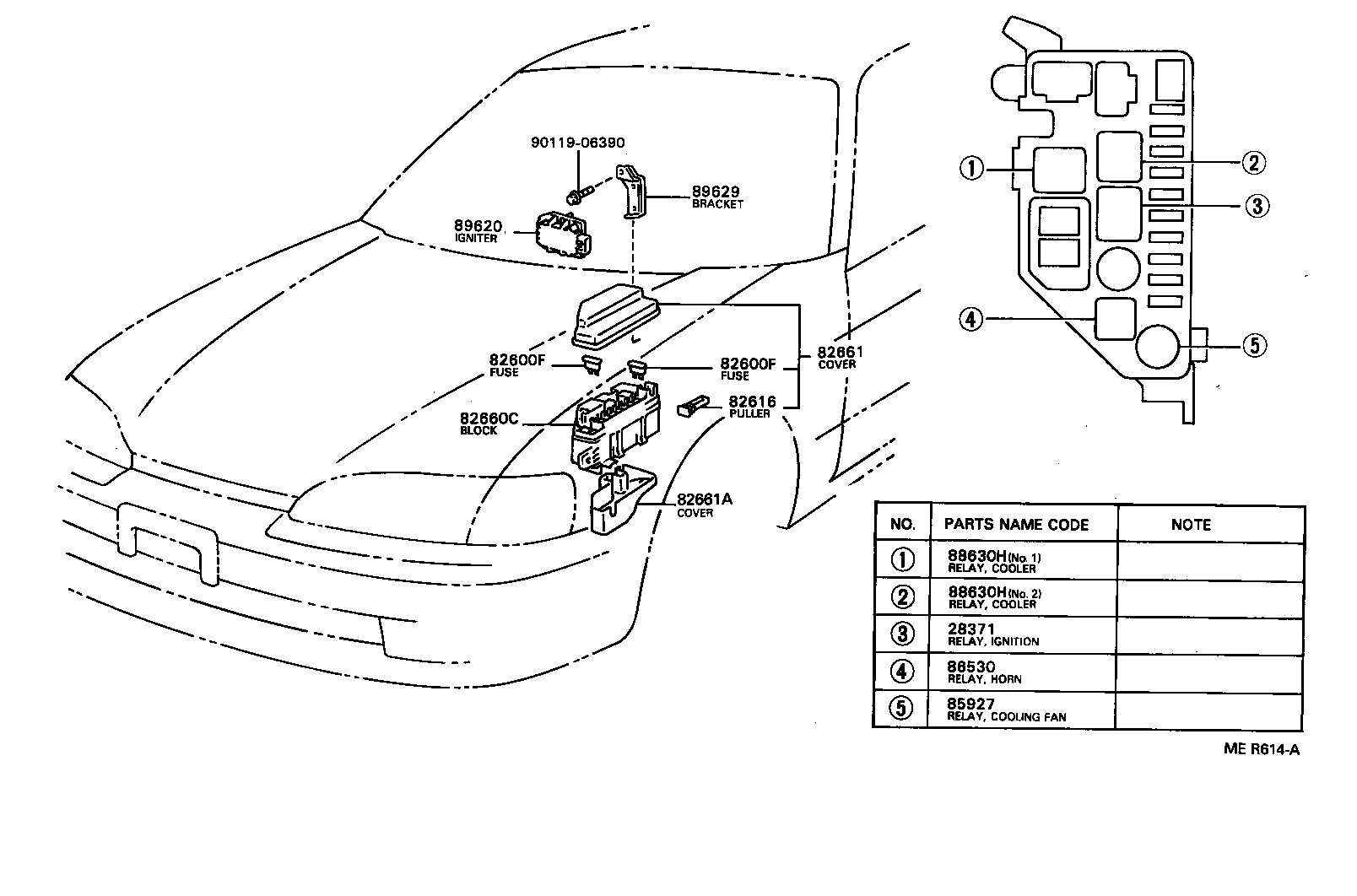

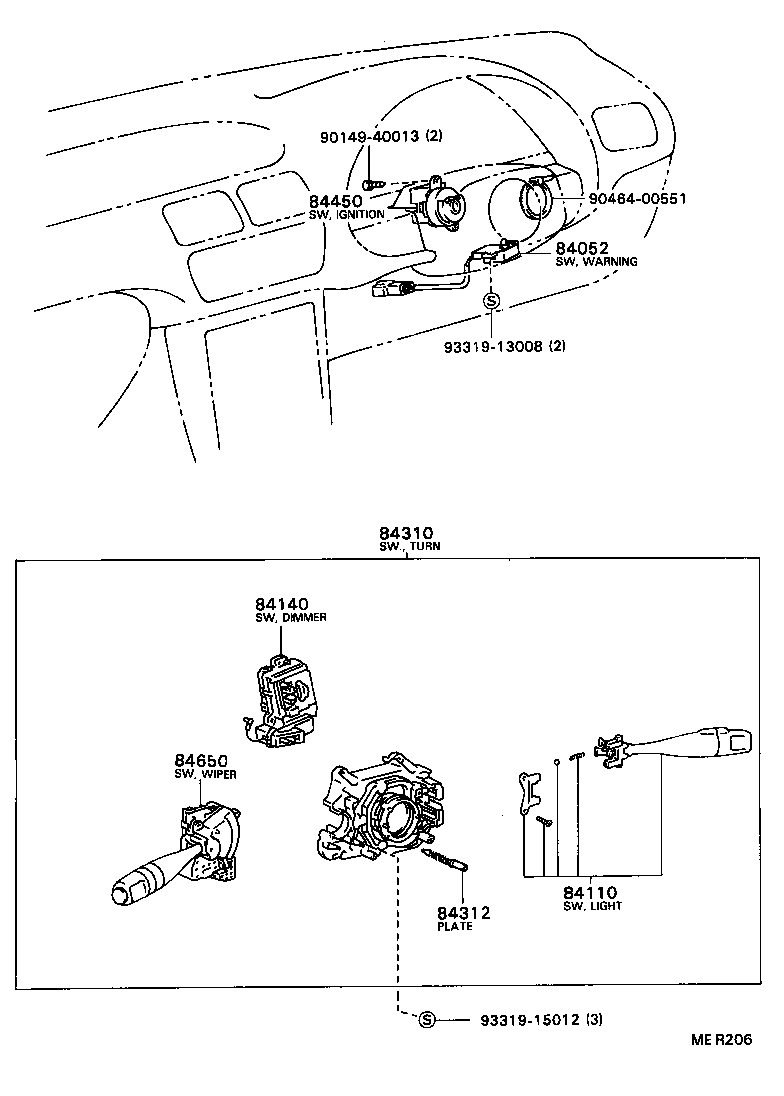

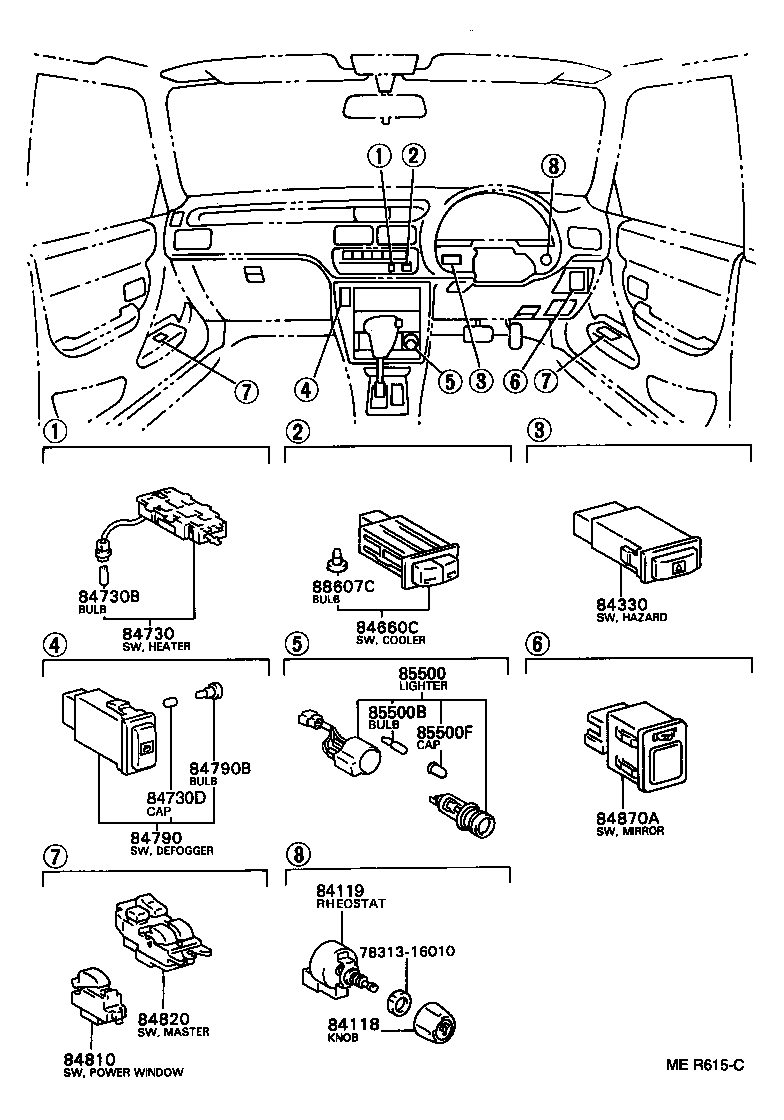

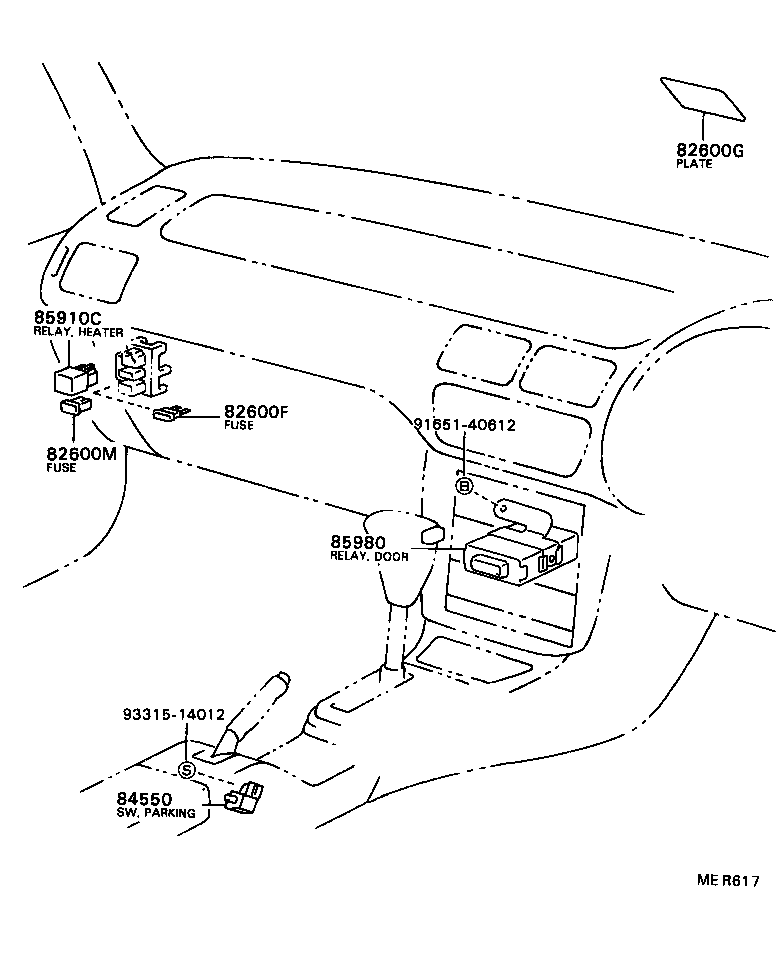

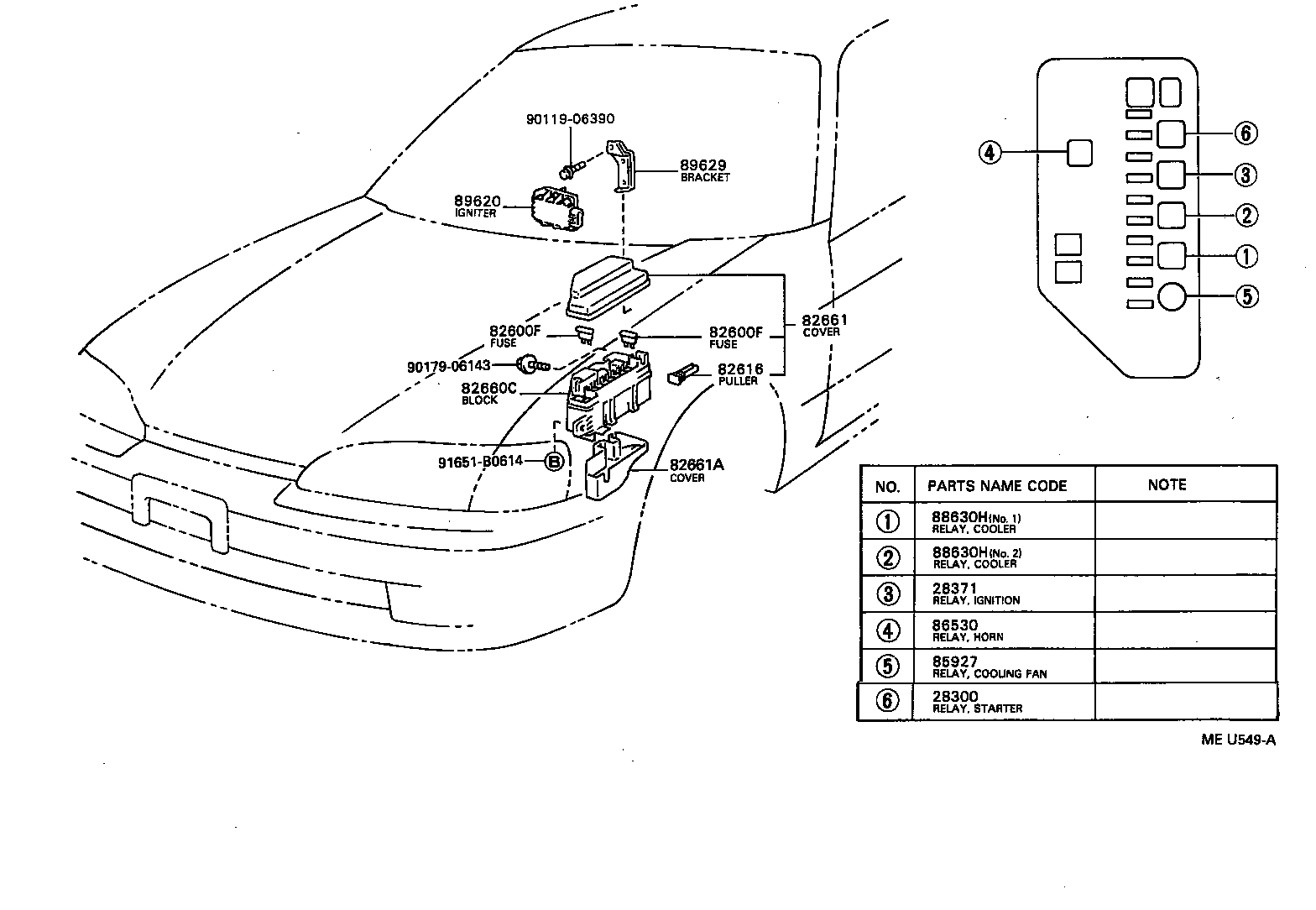

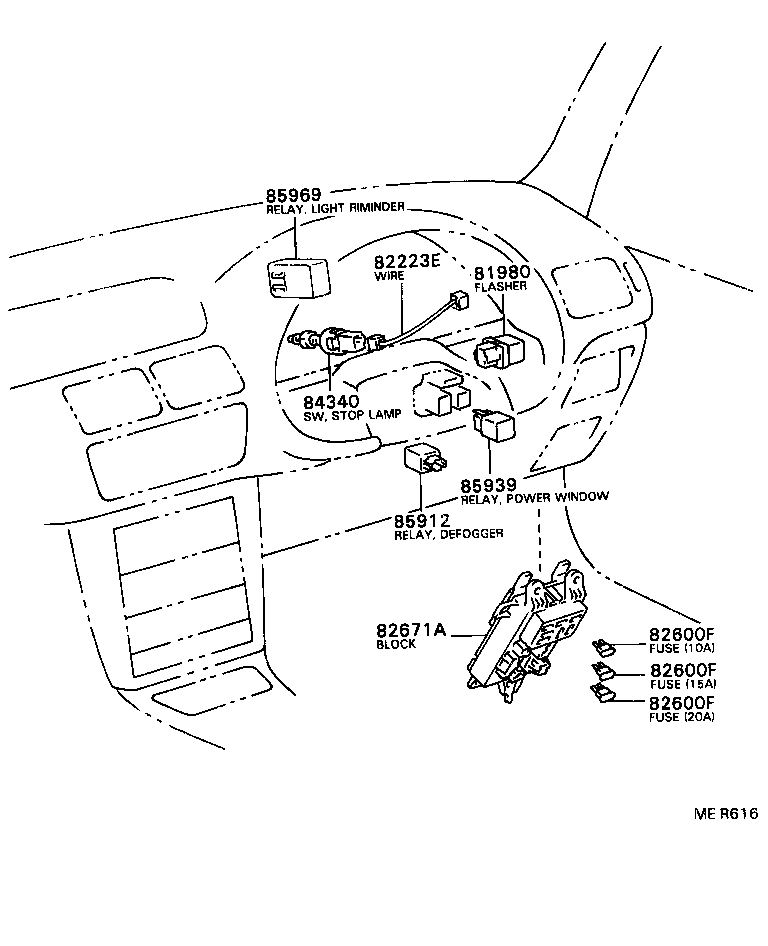

Figure MER613B MER613B 1991-04 → — Figure MER614A MER614A 1991-04 → 1992-08 Figure MEU549A MEU549A 1992-08 → — Figure MER615C MER615C 1991-04 → — Figure MER206 MER206 1991-04 → — Figure MER616 MER616 1991-04 → — Figure MER617 MER617 1991-04 → — Figure MER618B MER618B 1991-04 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
81980 Flasher Assy, Turn Signal
82223E Wire, Clutch Start Switch
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82600M Fuse, Medium Current
82616 Puller, Fuse
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82671A Block, Junction
83320 Gage Assy, Fuel Sender
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84110 Switch Assy, Light Control, NO.1
84118 Knob, Light Control Rheostat
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84236 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84660C Switch, Cooler
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84730D Cap, Heater Blower Switch Bulb
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84903 Switch Sub-assy, Door Un-lock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500F Cap, Cigarette Lighter Bulb
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85927 Relay, Cooling Fan
85939 Relay, Power Window
85940 Relay Assy, Windshield Wiper
85969 Relay, Light Reminder
85980 Relay Assy, Door Control
86530 Relay Assy, Horn
88607C Lamp Sub-assy, Indicator
88630H Relay Assy, Cooler
89428 Switch, Temperature Detect, NO.2
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89620 Igniter Assy
89629 Bracket, Igniter Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
