Toyota Paseo
1991-04 → 1995-08 · chassis EL44 · catalogue 144310 · General
Discontinued model
Data version 1996-03
Rear Washer

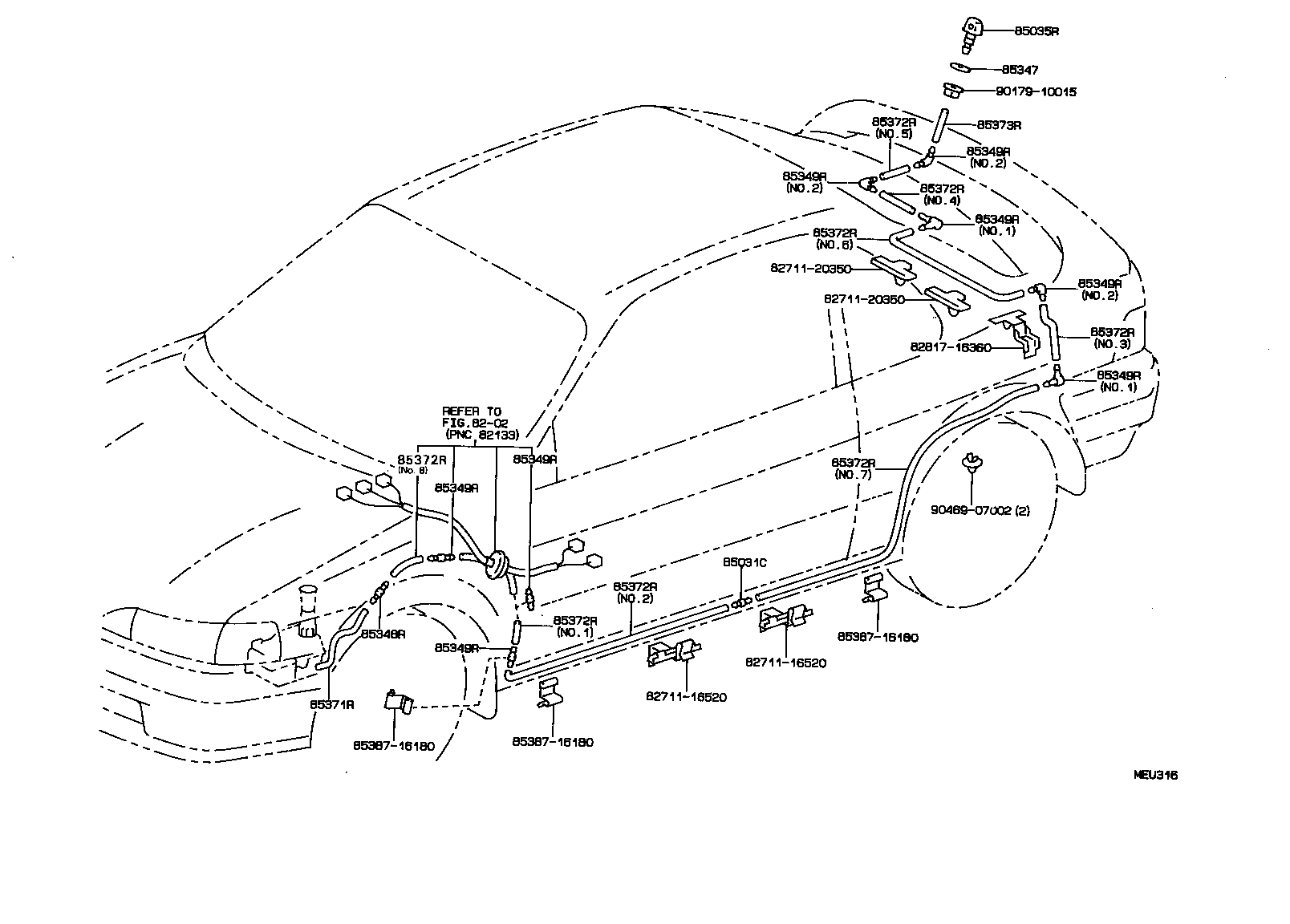

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031C | Valve Sub-assy, Washer |
| 85035R | Nozzle Sub-assy, Rear Washer |
| 85347 | Packing, Rear Washer |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85349R | Joint, Rear Washer Hose, NO.5 |
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 85372R | Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE) |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
