Toyota Paseo
1991-04 → 1995-08 · chassis EL44 · catalogue 144310 · General
Discontinued model
Data version 1996-03
Heating & Air Conditioning - Compressor
23 part groups · 2 illustrations
Part groups

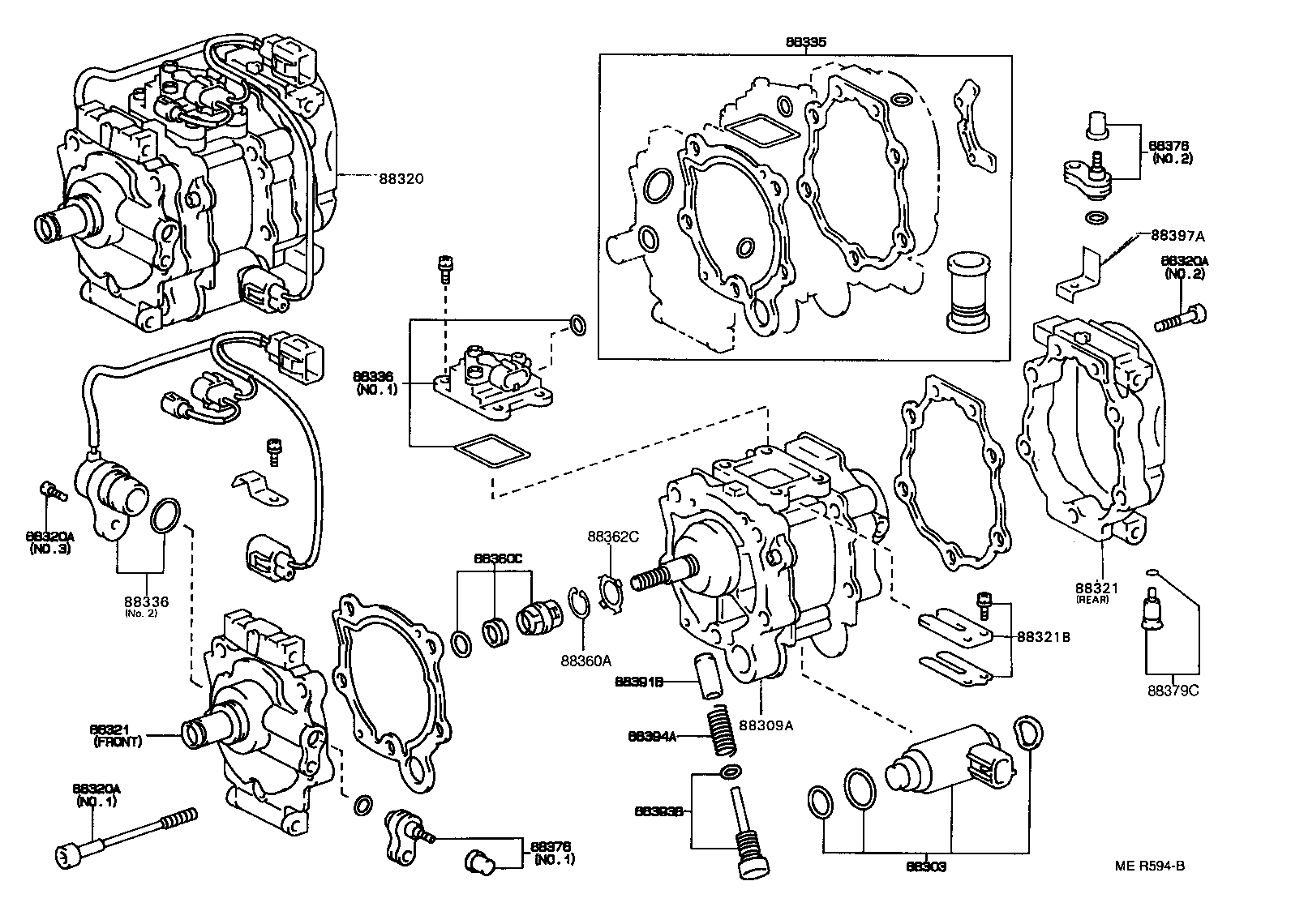

| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88303 | Regulator Kit |
| 88309A | Pump Sub-assy, Compressor |
| 88320 | Compressor Assy, Cooler |
| 88320A | Bolt, Through |
| 88321 | Head, Cooler Compressor Cylinder |
| 88321B | Reed Sub-assy, Valve |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88335 | Gasket Kit, Overhaul |
| 88336 | Sensor, Compressor |
| 88360A | Ring, Compressor Seal Plate Snap |
| 88360C | Seal Assy, Shaft |
| 88362C | Plate, Pulse |
| 88376 | Cap, Blind |
| 88379C | Valve, Pressure Relief |
| 88391B | Spool, Slide |
| 88393B | Bolt, Spool Kit |
| 88394A | Spring, Spool |
| 88397A | Clip, Compressor |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
