Toyota Soluna

1996-12 → 2003-07 · chassis AL50 · catalogue 145310 · General

Discontinued model Data version 2004-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

14 part groups · 6 illustrations

Illustrations

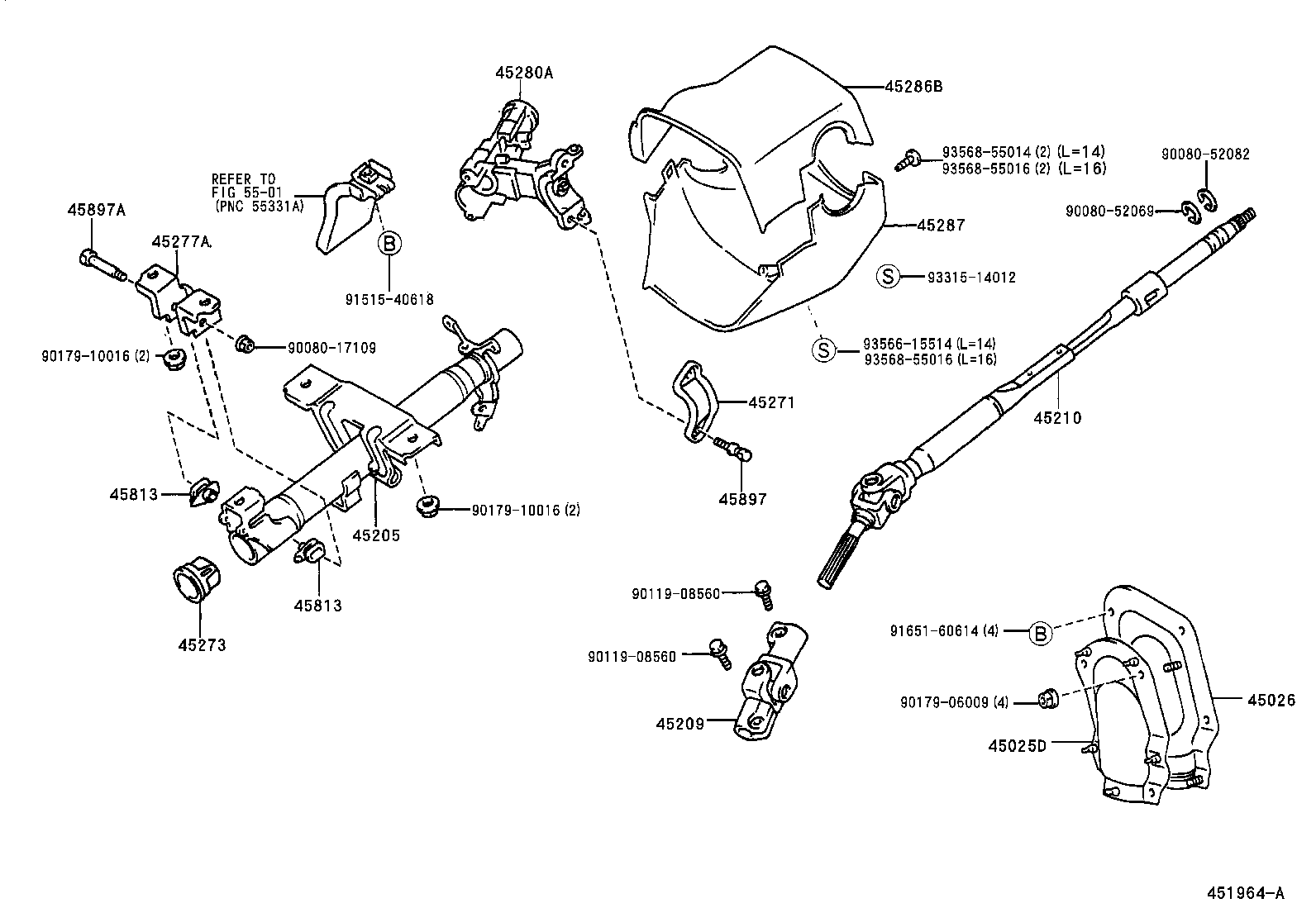

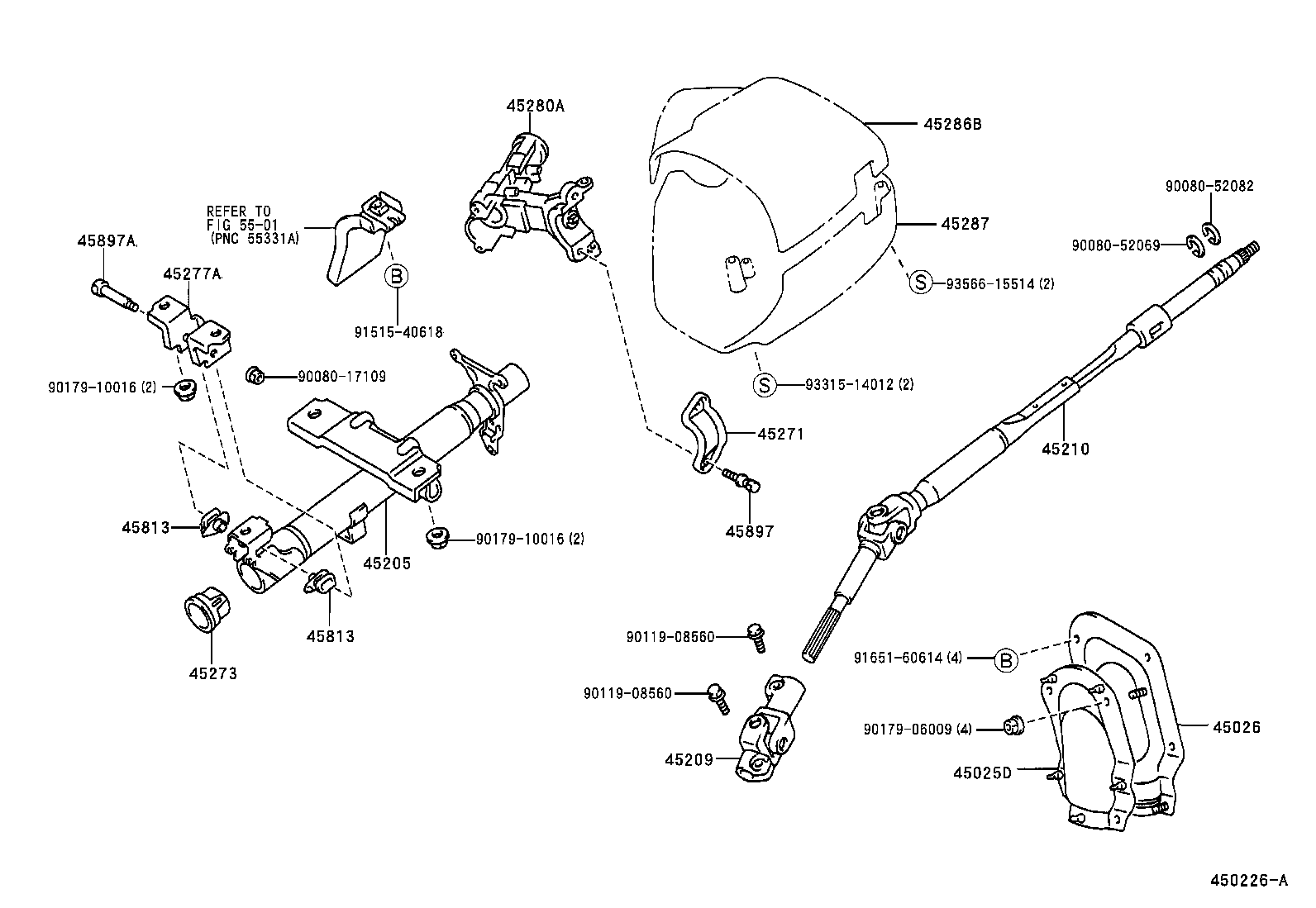

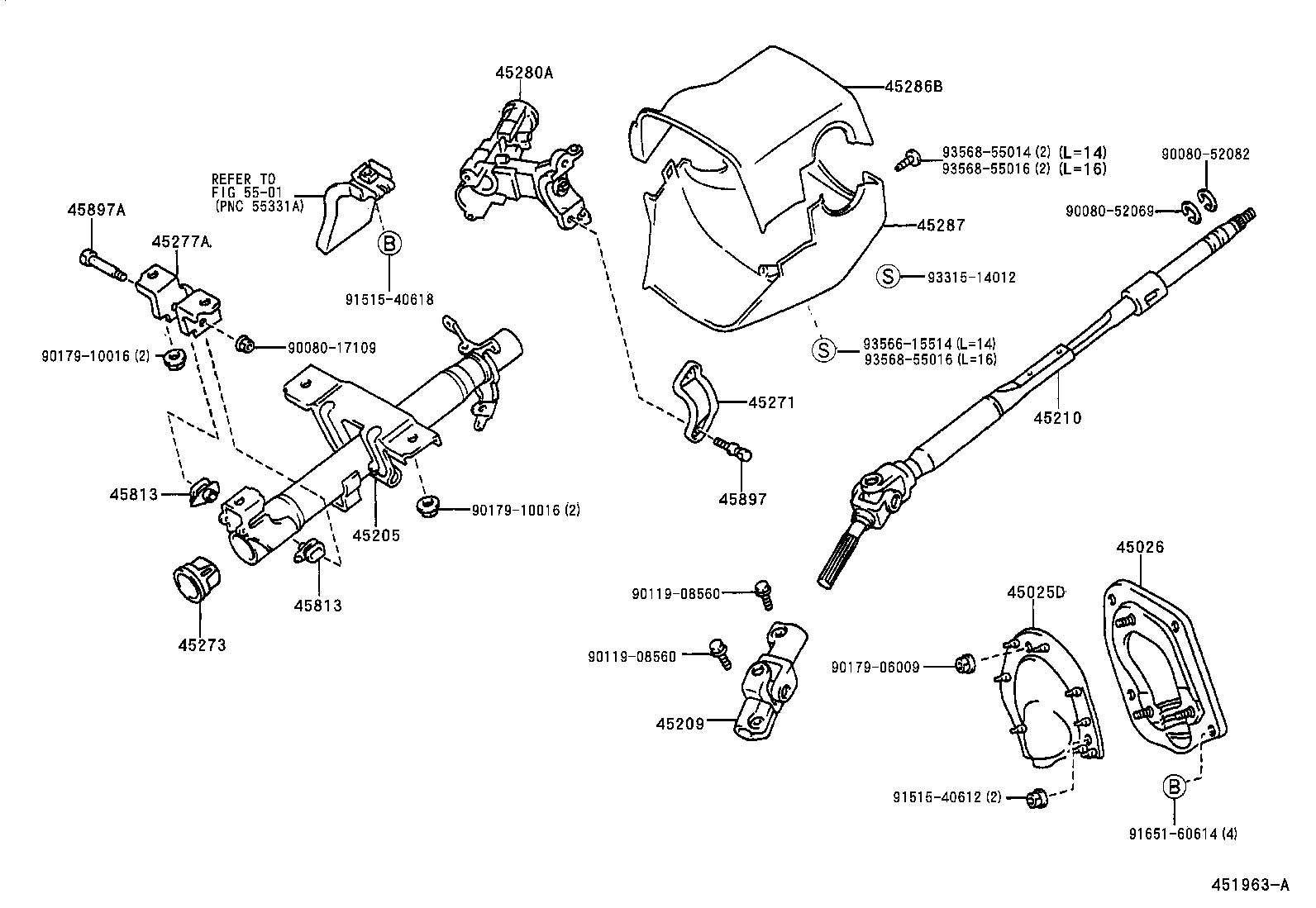

Figure 450225A 450225A 1996-12 → 1999-10 Figure 450225A 450225A 1999-10 → — Figure 450226A 450226A 1996-12 → 1999-10 Figure 451963A 451963A 1999-10 → — Figure 451963A 451963A 2000-03 → — Figure 451964A 451964A 1999-10 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45205 Tube Sub-assy, Steering Column
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45271 Clamp, Steering Column, Upper
45273 Bush, Steering Main Shaft
45277A Support, Tilt Steering
45280A Bracket Assy, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45813 Collar, Tilt Steering Support, NO.1
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
