Toyota Soluna

1996-12 → 2003-07 · chassis AL50 · catalogue 145310 · General

Discontinued model Data version 2004-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

21 part groups · 2 illustrations

Illustrations

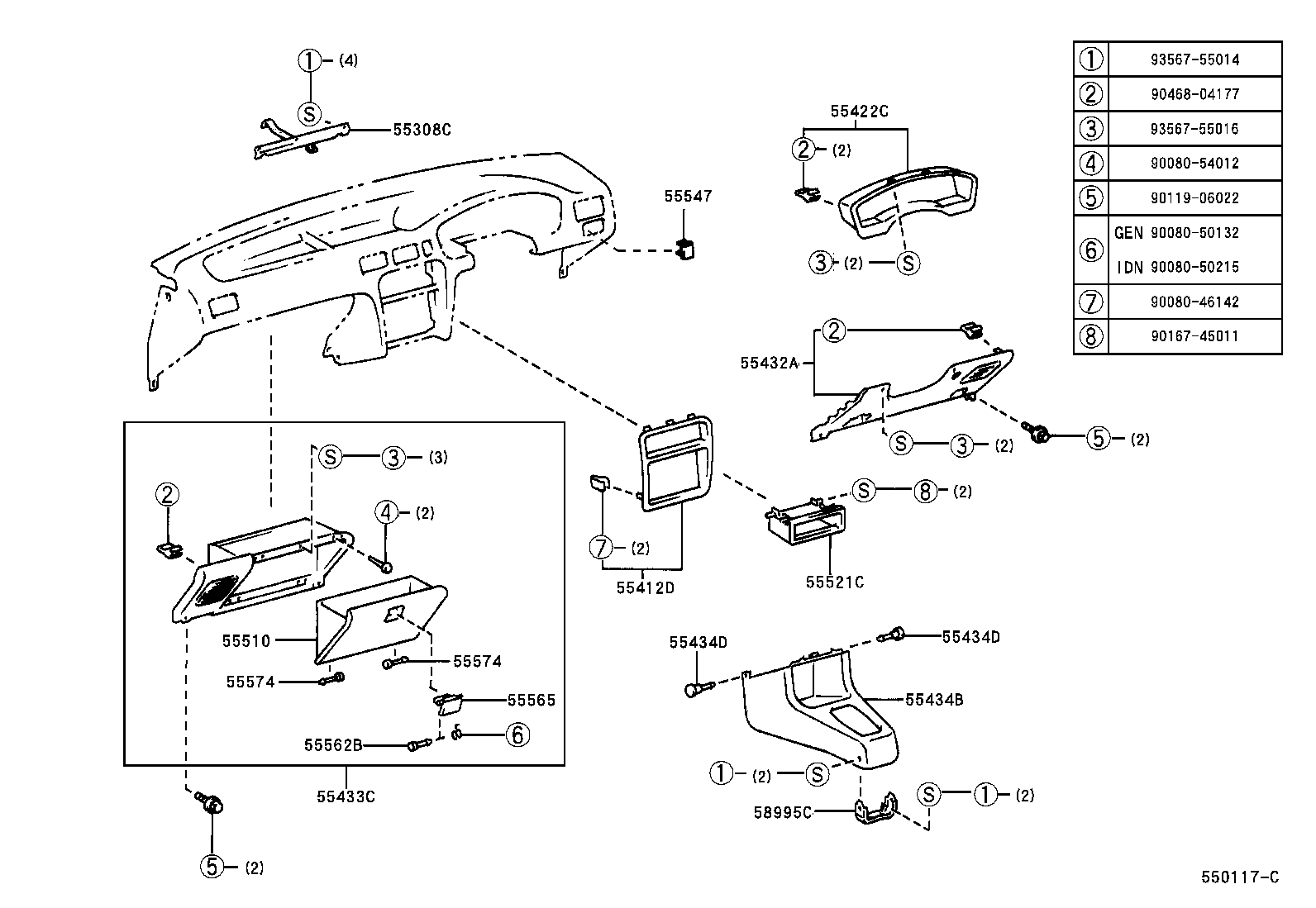

Figure 550118A 550118A 1996-12 → — Figure 550117C 550117C 1996-12 → —

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308C Bracket Sub-assy, Instrument Panel, Center
55331 Reinforcement, Instrument Panel
55331A Prtector, Reinforcement, Instrument Panel
55412D Panel, Instrument Cluster Finish, Center
55422C Panel, Instrument Cluster Finish, Center Upper
55432A Panel, Instrument Panel Finish, Lower RH
55433C Panel, Instrument Panel Finish, Lower LH
55434B Panel, Instrument Panel Finish, Lower Center
55434D Clip, Instrument Panel Finish, Lower Center
55441C Box, Instrument Panel Coin
55510 Door Assy, Glove Compartment
55521C Cover, Stereo Opening
55547 Cover, Remote Control Mirror Hole
55562B Pin, Glove Compartment Door Lock
55565 Handle, Glove Compartment Door Lock
55574 Shaft, Glove Compartment Door Hinge
55660 Register Assy, Instrument Panel, NO.2
58995C Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
