Toyota Soluna

1996-12 → 2003-07 · chassis AL50 · catalogue 145310 · General

Discontinued model Data version 2004-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

8 part groups · 2 illustrations

Illustrations

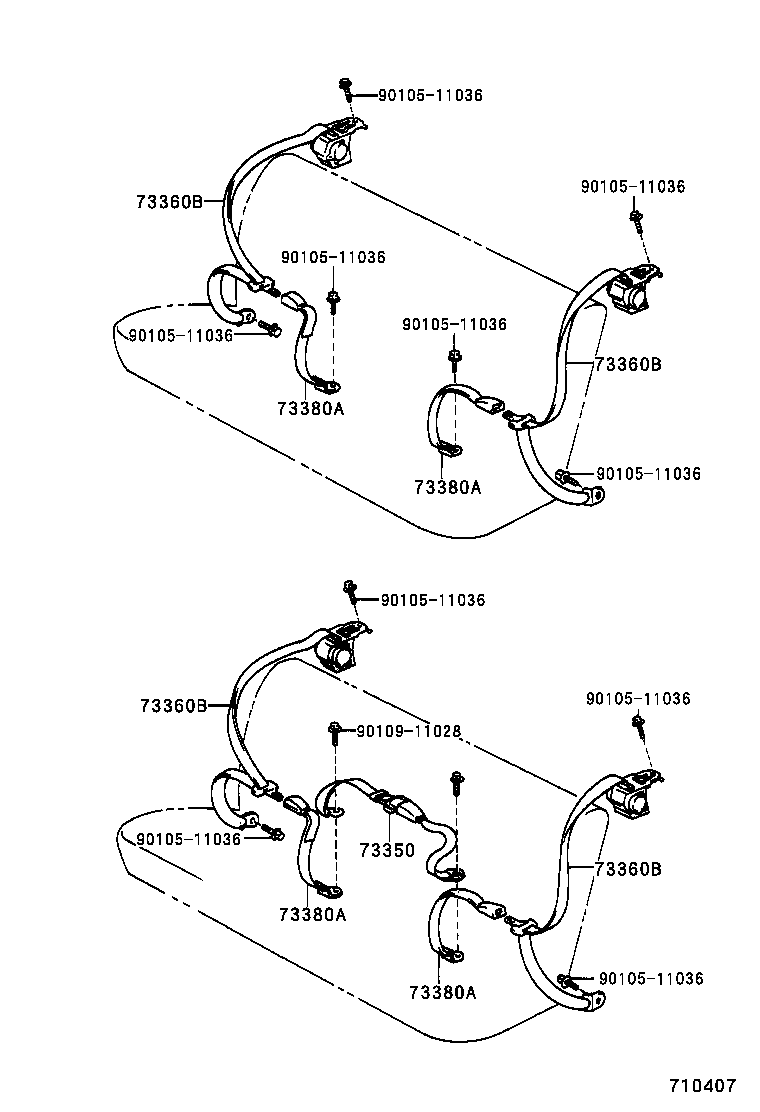

Figure 710419B 710419B 1996-12 → — Figure 710407 710407 1996-12 → —

Part groups

PNCDescription
73132A Ring, Seat Belt Bracket
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360B Belt Assy, Rear Seat, Outer
73380A Belt Assy, Rear Seat, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
