Toyota Soluna
1996-12 → 2003-07 · chassis AL50 · catalogue 145310 · General
Discontinued model
Data version 2004-04

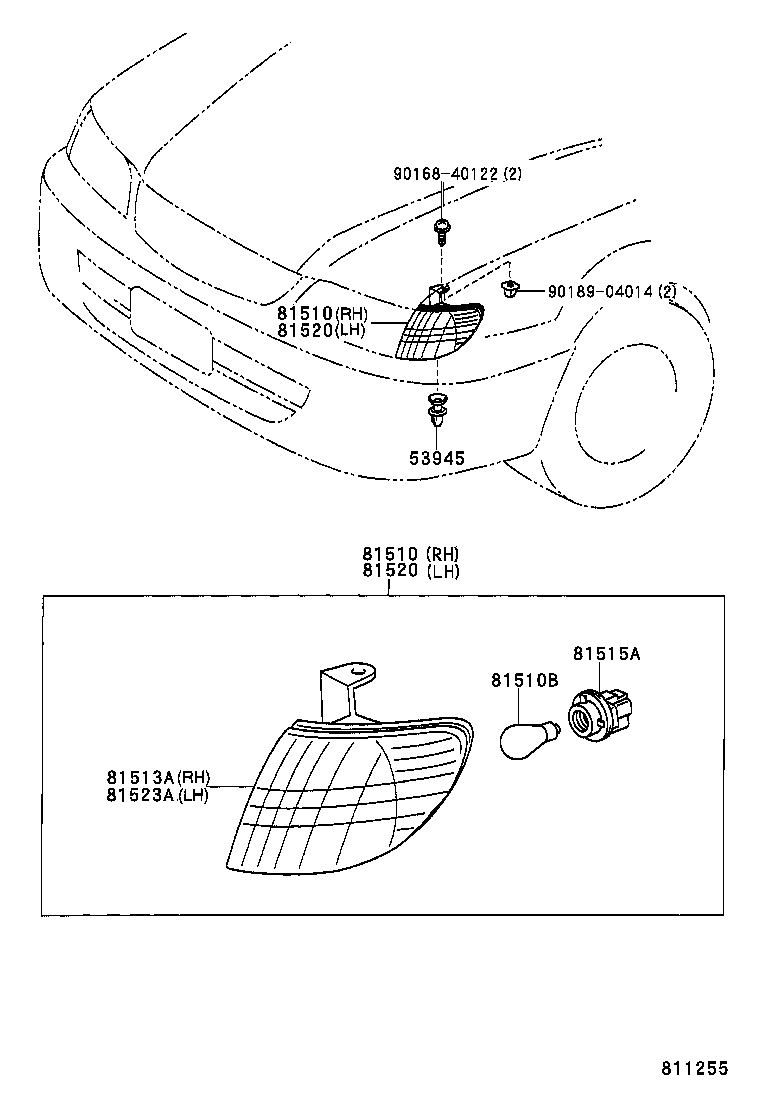

Front Turn Signal Lamp
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53945 | Bracket, Front End Panel, NO.3 |
| 81510 | Lamp Assy, Front Turn Signal, RH |
| 81510B | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81511 | Lens, Front Turn Signal Lamp, RH |
| 81512 | Gasket, Front Turn Signal Lamp Lens, RH |
| 81513A | Unit Assy, Front Turn Signal Lamp, RH |
| 81515A | Plug Assy, Front Turn Signal Lamp |
| 81520 | Lamp Assy, Front Turn Signal, LH |
| 81521 | Lens, Front Turn Signal Lamp, LH |
| 81522 | Gasket, Front Turn Signal Lamp Lens, LH |
| 81523A | Unit Assy, Front Turn Signal Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
